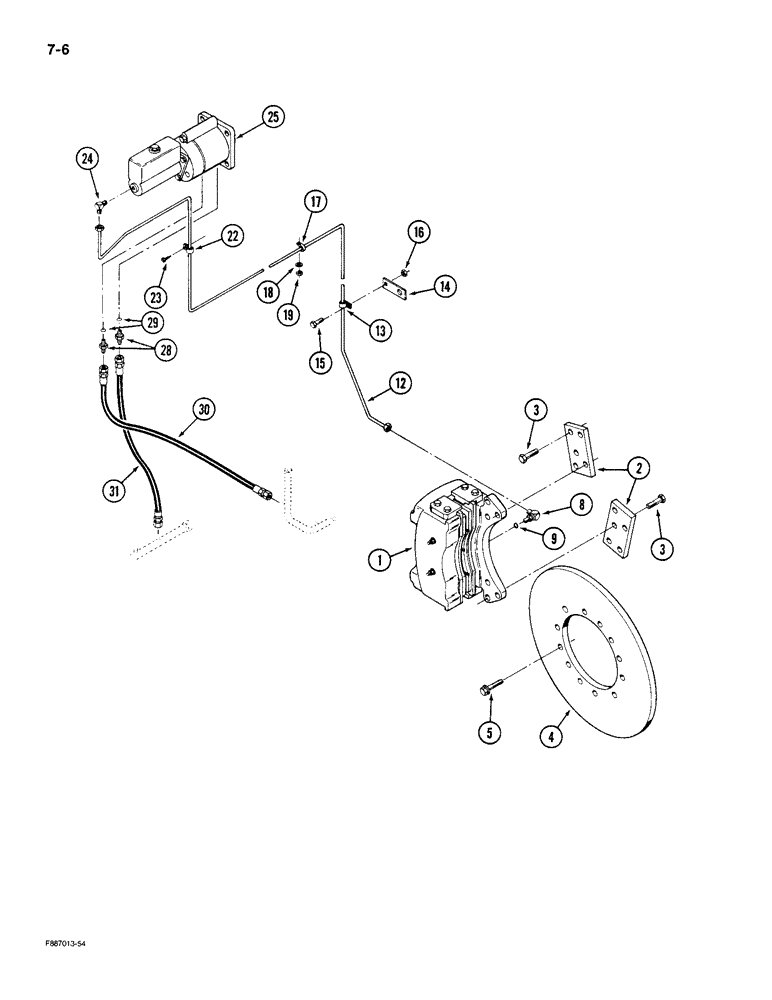

Запчасти Case IH 9190 (7-06) - BRAKE SYSTEM (07) - BRAKES

1

REF

INSTRUCTION

CALIPER ASSEMBLY - brake, See Figure 7-08

1шт.

2

90-2936T1

PLATE - mounting, brake caliper

2шт.

3

24887R1

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 8

10шт.

4

90-2941T1

BRAKE DISC

DISC - brake

1шт.

5

19-5875

FLANGE BOLT,Hex, 5/8" - 18 x 1 3/4", Gr 8

BOLT - flanged

12шт.

8

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree, 7/16 inch thread, Includes: Ref. 9

1шт.

9

31-1019

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

1шт.

12

90-4069T2

TUBE,.25" OD

ASSEMBLY - brake line, master cylinder to caliper

1шт.

13

31-1862

CLAMP

- tube

1шт.

14

90-3949T1

BRACE - mounting, clamp

1шт.

15

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

- hex, 3/8 NC x 3/4 inch

1шт.

16

232-4136

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

1шт.

17

22-635

MOUNTING CLIP

CLAMP - tube

1шт.

18

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

1шт.

19

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

22

32-68

COTTER PIN,3/32" x 1/2"

CLAMP - tube

1шт.

23

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - tapping, flanged head, No. 10 NC x 1/2 inch

1шт.

24

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - 90 degree, 1/8 PT x 7/16 inch thread

1шт.

25

REF

INSTRUCTION

CYLINDER ASSEMBLY - master, See Figure 7-12

1шт.

28

31-329

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - straight, 3/4 inch thread, Includes: Ref. 29

2шт.

29

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 x 3/32 inch

1шт.

30

31-1039

HOSE ASSY.

HOSE - power assist outlet, 33 inch

1шт.

31

31-1228

HYDRAULIC HOSE

HOSE - power assist inlet, 44 inch

1шт.
