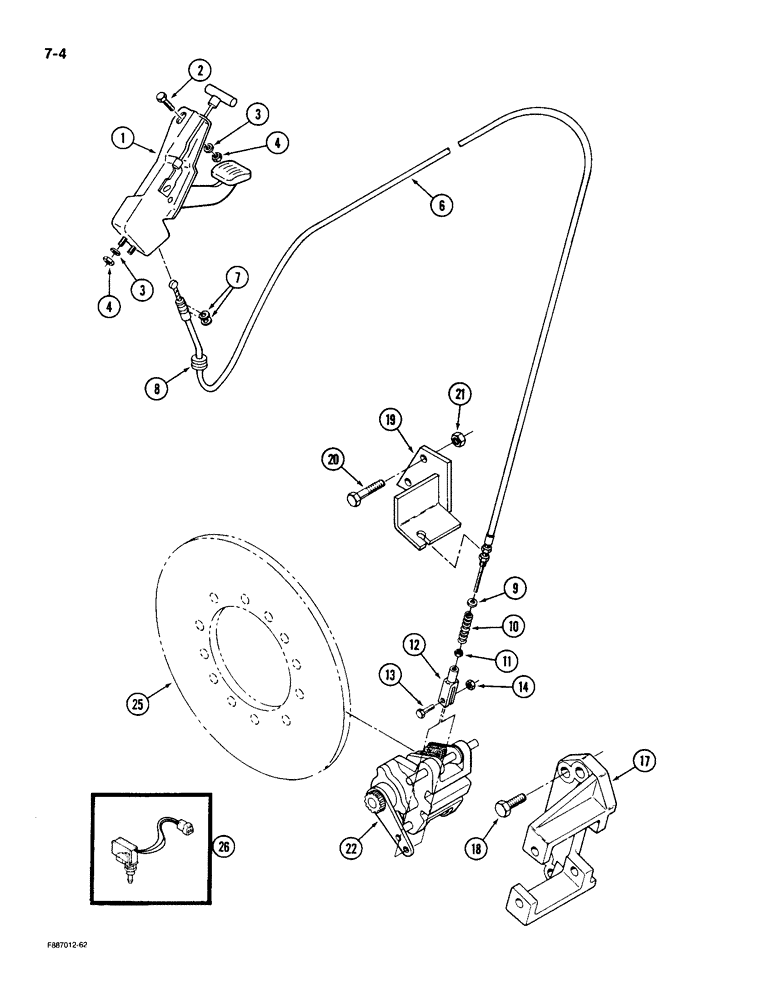

Запчасти Case IH 9190 (7-04) - PARK BRAKE CONTROLS (07) - BRAKES

1

60-2225T2

BRAKE

PEDAL ASSEMBLY - park brake

1шт.

2

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

3

19-700

WASHER,5/16"

- flat, 5/16 x 7/8 x 5/64 inch

3шт.

4

19-508

LOCK NUT

- hex lock, 5/16 inch NC

3шт.

6

60-3295T2

CABLE

- brake, park

1шт.

7

19-5867

RING, SNAP

RING - retaining

2шт.

8

1-1051

GROMMET

- protective

1шт.

9

25709R1

WASHER

- flat, hardened, 13/32 x 13/16 x 3/32 inch

1шт.

10

33-169

SPRING

- return, cable

1шт.

11

19-868

JAM NUT,Jam, 3/8"-24, G5

- hex jam, 3/8 inch NF

1шт.

12

19-139

YOKE

- clevis, 3/8 inch NF

1шт.

13

19-652

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

- hex, 3/8 NC x 1-1/2 inch, Grade 8

1шт.

14

19-341

LOCK NUT,3/8" - 16, GB

NUT - hex lock, 3/8 inch NC

1шт.

17

90-4068T1

MOUNTING PARTS

MOUNT - caliper, park brake

1шт.

18

24887R1

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 8

4шт.

19

90-2935T2

MOUNT - cable, park brake

1шт.

20

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- hex, 5/8 NC x 2-3/4 inch

2шт.

21

425-1010

NUT,5/8"-11, G5

2шт.

22

REF

INSTRUCTION

CALIPER - brake, park, See Figure 7-11

1шт.

25

REF

INSTRUCTION

DISC - brake, See Figure 7-06

1шт.

26

20-1463T1

SWITCH

- brake light, park

1шт.
