(9190) - CASE IH STEIGER 4WD TRACTOR (1/86-12/90)
/
(05) - STEERING
/

(5-14) - CONTROL VALVE, PRIOR TO P.I.N. 17900315

Запчасти Case IH 9190 (5-14) - CONTROL VALVE, PRIOR TO P.I.N. 17900315 (05) - STEERING

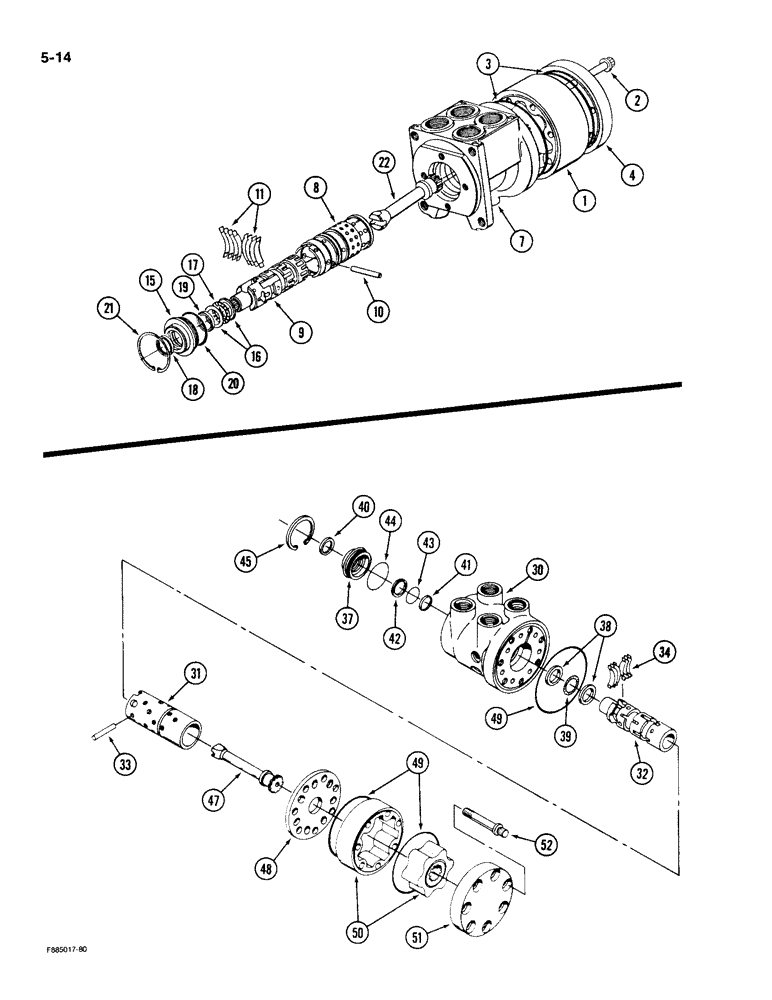

Схема запчастей Case IH 9190 - (5-14) - CONTROL VALVE, PRIOR TO P.I.N. 17900315 (05) - STEERING
15
47
21
43
7
49
2
1
49
34
37
45
52
51
30
41
44
18
8
19
31
38
33
11
22
4
42
50
16
32
9
20
39
48
40
10
3
17

№

Артикул

Название

Примечание

Количество

47-3001

VALVE BLOCK

VALVE ASSEMBLY - steering control (Order 50-2576T91), Includes: Ref. 1 - 22

1шт.

1

2-1346

GEROTOR ASSEMBLY - set, matched

1шт.

2

2-1347

CAPSCREW,M12 x 30mm

BOLT - socket head

7шт.

3

2-1348

SEAL

O-RING - seal

3шт.

4

2-1349

CAP - end, steering valve

1шт.

2-1350

PACKAGE

CONTROL ASSEMBLY - valve, Includes: Ref. 7 - 11

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING - control valve

1шт.

8

NSS

NOT SOLD SEPARAT

SLEEVE - control

1шт.

9

NSS

NOT SOLD SEPARAT

SPOOL - control

1шт.

10

NSS

NOT SOLD SEPARAT

PIN - dowel

1шт.

11

NSS

NOT SOLD SEPARAT

SPRING - torsion, set

1шт.

15

2-1351

RETAINER

- front

1шт.

16

2-1352

RACE

- bearing

2шт.

17

18-1693

NEEDLE BEARING

BEARING - thrust, needle

1шт.

18

18-137

OIL SEAL

- input

1шт.

19

18-144

SEAL

- shaft

1шт.

20

2-1353

SEAL

O-RING - seal

1шт.

21

2-1354

RING, SNAP

RING - snap, retaining

1шт.

22

2-1355

DRIVE

SHAFT - drive

1шт.

50-2576T91

UNIT

VALVE ASSEMBLY - control steering (P.I.N. 17900315 and after), Includes: Ref. 30 - 52

1шт.

30

NSS

NOT SOLD SEPARAT

HOUSING - control valve steering (P.I.N. 17900315 and after)

1шт.

31

NSS

NOT SOLD SEPARAT

SLEEVE - control, steering valve (P.I.N. 17900315 and after)

1шт.

32

NSS

NOT SOLD SEPARAT

SPOOL - control, steering valve (P.I.N. 17900315 and after)

1шт.

33

NSS

NOT SOLD SEPARAT

PIN - dowel, steering control valve (P.I.N. 17900315 and after)

1шт.

34

NSS

NOT SOLD SEPARAT

SPRING - torsion, steering control valve (P.I.N. 17900315 and after)

6шт.

37

50-2701T1

RETAINER

- front, steering control valve (P.I.N. 17900315 and after)

1шт.

38

2-2064

RING RACE

WASHER - thrust, bearing, steering control valve (P.I.N. 17900315 and after)

2шт.

39

18-1693

NEEDLE BEARING

BEARING - thrust, needle, steering control valve (P.I.N. 17900315 and after)

1шт.

40

18-137

OIL SEAL

- input, steering control valve (P.I.N. 17900315 and after)

1шт.

41

50-2702T1

SEAL

- shaft, steering control valve (P.I.N. 17900315 and after)

1шт.

42

50-2703T1

BACK-UP RING

RING - backup, steering control valve (P.I.N. 17900315 and after)

1шт.

43

50-2704T1

O-RING

- seal, steering control valve (P.I.N. 17900315 and after)

1шт.

44

50-2705T1

O-RING

- seal, steering control valve (P.I.N. 17900315 and after)

1шт.

45

2-1354

RING, SNAP

RING - snap, retaining, steering control valve (P.I.N. 17900315 and after)

1шт.

47

50-2706T1

SHAFT

- drive, steering control valve (P.I.N. 17900315 and after)

1шт.

48

50-2707T1

WEAR PLATE

PLATE - wear, steering control valve (P.I.N. 17900315 and after)

1шт.

49

50-2708T1

O-RING

- seal, steering control valve (P.I.N. 17900315 and after)

3шт.

50

50-3072T1

GEROTOR

ASSEMBLY - set, matched, steering control valve (P.I.N. 17900315 and after)

1шт.

51

50-2710T1

CAP

- end, steering valve,, control (P.I.N. 17900315 and after)

1шт.

52

19-1719

BOLT - 12 point flange, 1/2 NF x 3-3/4 inch, Grade 8, steering control valve (P.I.N. 17900315 and after)

7шт.

Выбрано товаров: 40
