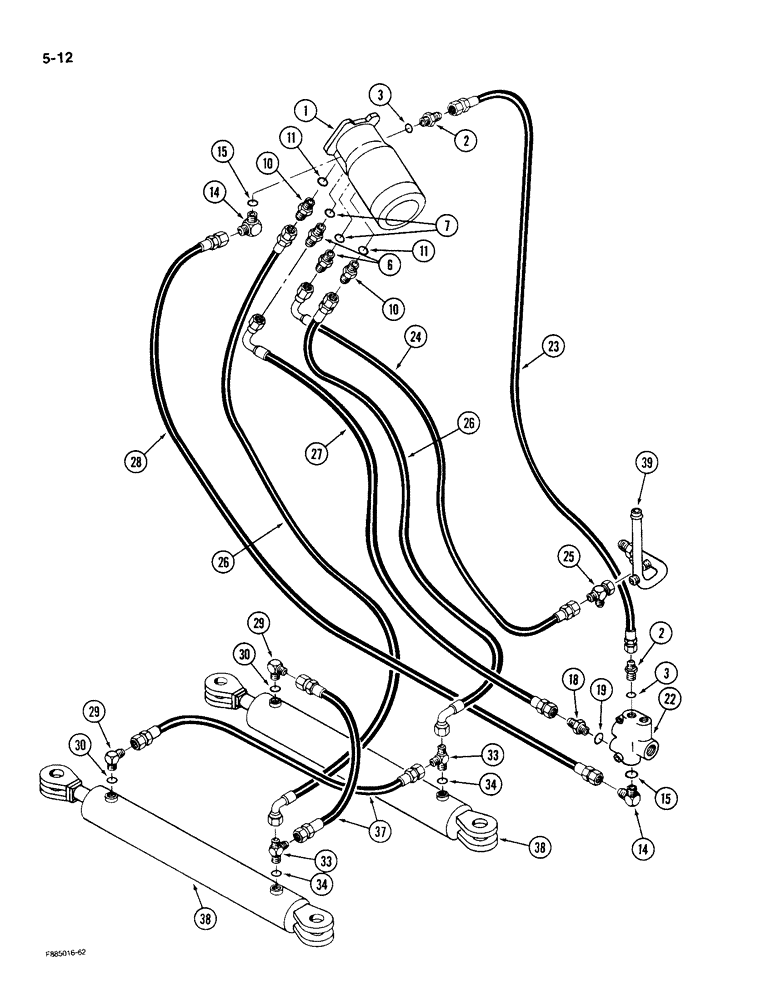

Запчасти Case IH 9190 (5-12) - SYSTEM HYDRAULICS, P.I.N. 17000315 AND AFTER (05) - STEERING

1

REF

INSTRUCTION

VALVE - control, steering, See Figure 5-14

1шт.

2

18-1539

HYD CONNECTOR,7/16"-20, 37 Degree x 7/16"-20, O-Ring

CONNECTOR - straight, 7/16 inch thread, Includes: Ref. 3

2шт.

3

31-1019

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

1шт.

6

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - straight, 1-1/16-12 inch thread, Incl. Ref. 7

2шт.

7

31-344

O-RING,12-1, 90 Duro, .924 ID x .116" Thk

- 59/64 x 1/8 inch

1шт.

10

31-361

HYD CONNECTOR,3/4"-16, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR - straight, 1-1/16 x 3/4 inch thread, Includes: Ref. 11

2шт.

11

31-344

O-RING,12-1, 90 Duro, .924 ID x .116" Thk

- 59/64 x 1/8 inch

1шт.

14

18-1538

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

- 90 degree, 7/16 inch thread, Includes: Ref. 15

2шт.

15

31-1019

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

1шт.

18

31-610

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

CONNECTOR - straight, 1-5/16 x 1-1/16 inch thread, Includes: Ref. 19

1шт.

19

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-11/64 ID x 1/8 inch width

1шт.

22

REF

INSTRUCTION

VALVE ASSEMBLY - priority, See Figure 8-16

1шт.

23

18-1536

HOSE

- steering valve to priority valve, 30 inch

1шт.

24

31-2078

HOSE,0.75" ID x 24.00", SAE 100R2 CLASS 8

0.75" ID x 24.00", SAE 100R2, CLASS 8, Steering Valve to Tube

1шт.

25

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

Connector 37º, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

26

31-1276

HOSE

- steering valve to steering cylinders, 44 inch

2шт.

27

31-1233

HOSE

- steering valve to priority valve, 35 inch

1шт.

28

31-1232

HOSE

- steering valve to priority valve, 40 inch

1шт.

29

31-323

ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- 45 degree, 3/4 inch thread, Includes: Ref. 30

2шт.

30

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 x 3/32 inch

1шт.

33

31-507

TEE,3/4"-16, 37 Degree x 3/4"-18, O-Ring Run

- adjustable, 3/4 inch thread, Include: Ref. 34

2шт.

34

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 x 3/32 inch

1шт.

37

A166318

HYDRAULIC HOSE,0.50" ID x 68.00", SAE 100R2 Type A per SAE J517

- Steering cylinder to steering cylinder 0.50" ID x 68.00", SAE 100R2 Type A per SAE J517

2шт.

38

REF

INSTRUCTION

CYLINDER ASSEMBLY - steering, See Figure 5-16

2шт.

39

47-3507

HYD TUBE

TUBE - hydraulic, to filter, See Figure 8-5

1шт.
