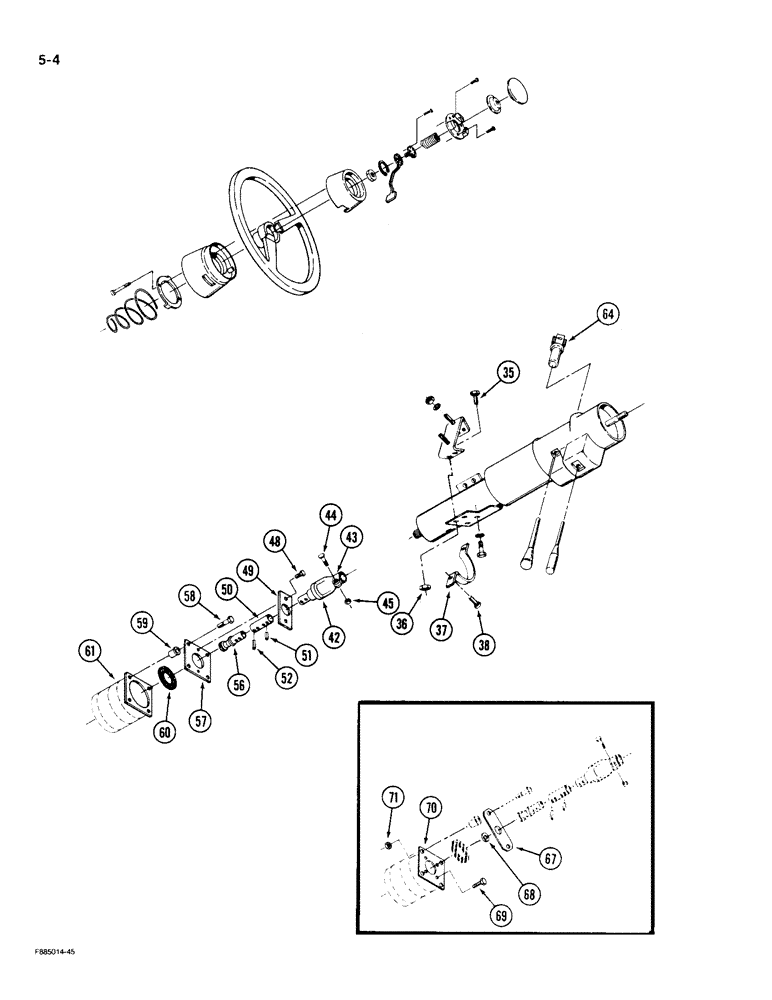

Запчасти Case IH 9190 (5-04) - WHEEL AND COLUMN (CONTD) (05) - STEERING

35

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

- hex, 5/18 NC x 3/4 inch

4шт.

36

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

4шт.

37

1-3412

CLAMP

- support, lower column

1шт.

38

19-891

HEX SOC SCREW,1/4"-20 x 1/2"

BOLT - socket head, 1/4 NC x 1/2 inch, Grade 8

2шт.

42

1-3417

STEERING ASSY

SHAFT ASSEMBLY - steering, Includes: Ref. 43 - 45

1шт.

43

7809433

CLAMP

- steering shaft

1шт.

44

7803464

CARRIAGE BOLT,7/16" - 20 x 1.88"

BOLT - hex

1шт.

45

7810280

NUT

- hex

1шт.

48

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

(Prior to P.I.N. 17900315) Hex, 1/4"-20 x 5/8", G5, Full Thd

2шт.

49

2-3769T1

PLATE

- adapter (Prior to P.I.N. 17900315)

1шт.

50

2-3813T1

COLLAR

- adapter, steering shaft

1шт.

51

617057R1

PIN,1/4" x 1", Coiled

3шт.

52

19-5669

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

1шт.

56

1-3414T1

SHAFT

- splined

1шт.

57

2-3770T1

PLATE

- mounting (Prior to P.I.N. 17900315)

1шт.

58

19-5525

BOLT - hex, 1/2 NC x 2-1/4 inch, Grade 8

4шт.

59

L131421

MOUNT - isolator, rubber

4шт.

60

47-4508

FOAM

SEAL - dust

1шт.

61

47-4512

PLATE

- mounting (Prior to P.I.N. 17900315)

1шт.

64

1-4464

LOCK

ASSEMBLY - ignition

1шт.

67

60-5864T1

LARGE PLATE

PLATE - mounting (P.I.N. 17900315 and after)

1шт.

68

19-463

WASHER,1/2", SAE

- flat, 1/2 x 1-1/4 x 3/32 inch (P.I.N. 17900315 and after)

2шт.

69

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

- hex, 3/8 NC x 3/4 inch (P.I.N. 17900315 and after)

4шт.

70

60-5863T1

LARGE PLATE

PLATE - mounting (P.I.N. 17900315 and after)

1шт.

71

19-81

NUT,1/2"-13, G5

- hex, 1/2 inch NC (P.I.N. 17900315 and after)

4шт.
