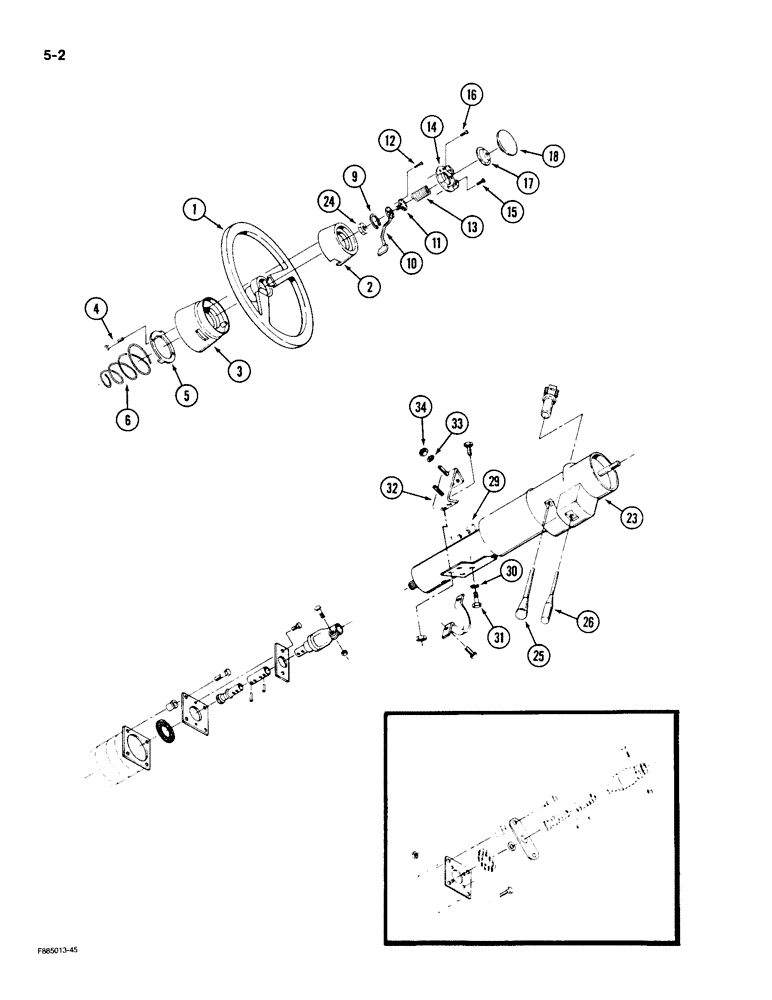

Запчасти Case IH 9190 (5-02) - WHEEL AND COLUMN (05) - STEERING

2-3755T92

STEERING WHEEL

WHEEL ASSEMBLY - steering, Includes: Ref. 1 - 6

1шт.

1

60-1827T2

WHEEL (STEERING)

WHEEL - steering

1шт.

2

60-1828T1

CAP

COVER - hub, upper

1шт.

3

60-1829T1

COVER

- hub, lower

1шт.

4

19-5791

SELF-TAP SCREW,Cross Pan Hd, #6 x 1 1/4"

SCREW - tapping, pan head, No. 6 NS x 1-1/4 inch

2шт.

5

60-1830T1

RETAINER

- spring

1шт.

6

60-1831T1

SPRING

- compression telescoping

1шт.

9

18-1570

RING, SNAP

RETAINER - nut, locking

1шт.

10

60-1951T1

CONTROL LEVER

LEVER - release, telescoping

1шт.

11

18-1565

LOCK SCREW,5/16" - 18 x 0.95"

SCREW - release, telescoping

1шт.

12

488-1104

SCREW,Cross Flat Hd, #10-32 x 1/4"

- machine, flat head, No. 10 NF x 1/4 inch

2шт.

13

60-1820T1

SPRING

- horn button

1шт.

14

60-1819T1

PLATE

- base

1шт.

15

24394R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW - tapping, pan head, No. 10 NS x 5/8 inch

3шт.

16

260-14436

SELF-TAP SCREW,Cross Pan Hd, #8 x 2 1/4"

SCREW - tapping, pan head, No. 8 NS x 2-1/4 inch

1шт.

17

60-1821T1

CUPEL

CONTACT - horn

1шт.

18

60-5911T1

BUTTON

- horn (9190)

1шт.

18

60-1822T1

BUTTON

- horn (KP 525)

1шт.

23

REF

INSTRUCTION

COLUMN ASSEMBLY - steering, See Figure 5-06

1шт.

24

19-1026

JAM NUT,9/16" - 18, Gr 5

- hex, 9/16 inch NF

1шт.

25

18-1567T1

CONTROL LEVER

LEVER - tilt actuating

1шт.

26

1-4188T1

CONTROL LEVER

LEVER - blinker, wiper, washer and hi-low beam

1шт.

29

60-1469T1

BRACKET

- mounting, column

1шт.

30

19-700

WASHER,5/16"

- flat, 5/16 x 7/8 x 5/64 inch

4шт.

31

40-1231

BOLT,Hex, M8 x 1.25 x 16mm, Gr 8.8

BOLT- hex, 8 mm - 1.25 x 18 mm

4шт.

32

60-1471T1

BRACKET

- mounting, support

1шт.

33

19-107

WASHER

- flat, 3/8 x 1 x 5/64 inch

2шт.

34

19-341

LOCK NUT,3/8" - 16, GB

NUT - hex, lock, 3/8 inch NC

2шт.
