(4-40) - WINDOW WIPER, FRONT AND REAR

Запчасти Case IH 9190 (4-40) - WINDOW WIPER, FRONT AND REAR (04) - ELECTRICAL SYSTEMS

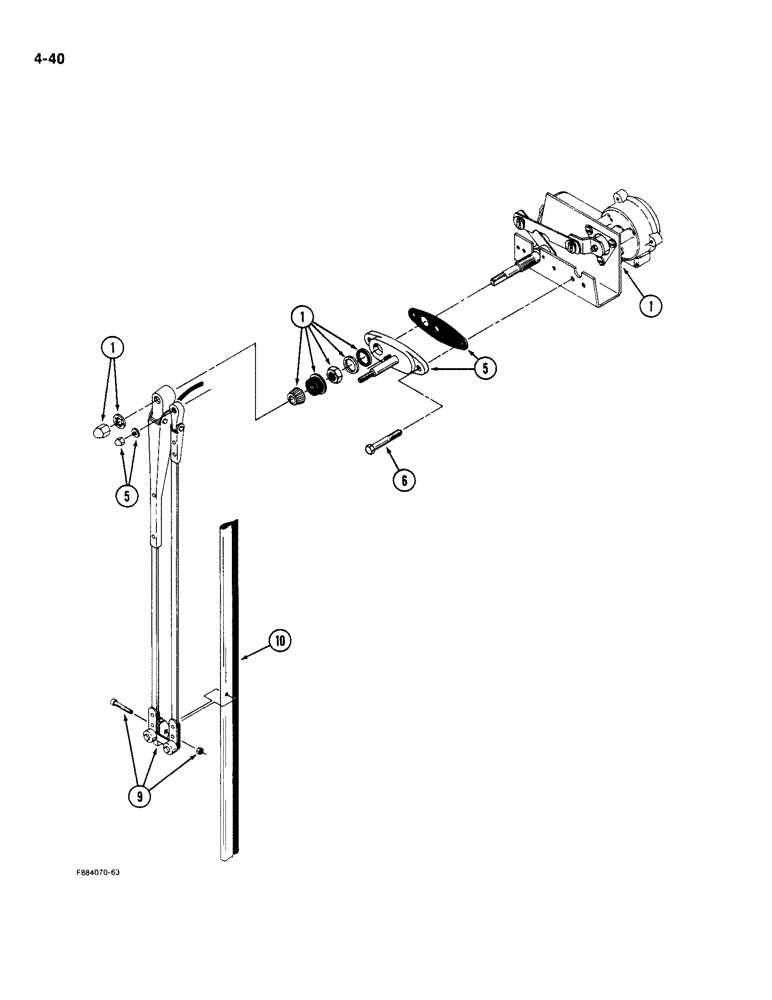

Схема запчастей Case IH 9190 - (4-40) - WINDOW WIPER, FRONT AND REAR (04) - ELECTRICAL SYSTEMS
9
6
1
5
1
1
10
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

DRIVE ASSEMBLY - wiper, See Figure 4-42

1шт.

5

54-311

PIVOT ASSY.

PIVOT KIT - wiper blade

1шт.

6

19-939

BOLT,Hex, 1/4" - 28 x 1 1/4", Gr 5

- hex, 1/4 NF x 1-1/4 inch

2шт.

9

54-313

ARM

- wiper, 20 inch

1шт.

10

60-1145T91

WIPER BLADE

BLADE ASSEMBLY - wiper, Includes: blade

1шт.

2-4194T1

WIPER BLADE

BLADE - wiper, rubber, 18 inch

1шт.

Выбрано товаров: 6
