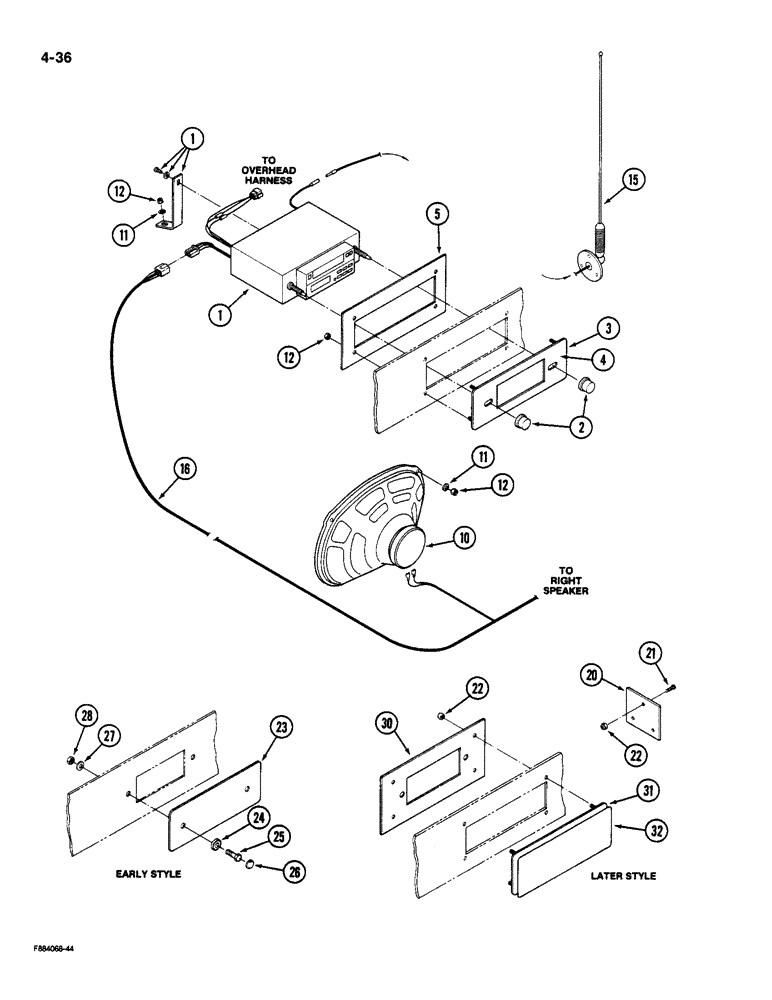

Запчасти Case IH 9190 (4-36) - RADIO AND SPEAKERS (04) - ELECTRICAL SYSTEMS

1

60-3905T1

RADIO

- AM-FM stereo, Includes: Ref. 2

1шт.

1

60-5747T1

RADIO

- AM-FM stereo, with cassette tape player, Includes: Ref. 2

1шт.

2

1-4357

KNOB

SET - radio (For Panasonic and Fujitsu AM-FM stereo)

1шт.

2

60-3408T1

KIT

KNOB SET - radio, left (For Alpine AM-FM stereo)

1шт.

2

60-3403T1

KIT

KNOB SET - radio, right (For Alpine AM-FM stereo)

1шт.

2

60-5876T1

KIT

KNOB SET - radio (For Panasonic AM-FM stereo with cassette)

1шт.

2

60-5878T1

KNOB

SET - radio (For Audiovox AM-FM stereo with cassette)

1шт.

3

60-6052T1

PLATE

PANEL - radio mounting

1шт.

4

60-3486T2

DECAL

- panel, radio mounting

1шт.

5

60-3483T1

PLATE - radio, panel mounting

1шт.

10

60-5748T1

SPEAKER

- radio

2шт.

11

9421089

WASHER

- flat, 3/16 x 1/2 x 1/16 inch

9шт.

12

19-5563

LOCK NUT

- lock, No. 10 NC

13шт.

15

1-4545

ANTENNA

- radio

1шт.

16

20-1298T3

HARNESS

ASSEMBLY - speaker

2шт.

20

2-1783T1

LARGE PLATE

PANEL - cover, antenna (All models), no radio

1шт.

21

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

- machine, pan head, No. 10 NF x 1/2 inch, no radio covers

3шт.

22

19-481

SERRATED NUT

- keps, No. 10 NF, no radio covers

7шт.

23

2-1784T1

PLATE

PANEL - cover, no radio (2 hole)

1шт.

24

1-3991

WASHER

- trim cap, no radio covers

2шт.

25

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch, no radio covers

2шт.

26

1-3990

PLUG

CAP- trim, no radio covers

2шт.

27

19-700

WASHER,5/16"

- flat, 5/16 x 7/8 x 5/64 inch, no radio covers

2шт.

28

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC, no radio covers

2шт.

30

60-3080T1

PLATE

- panel mounting, no radio covers

1шт.

31

60-3079T1

PANEL

- cover, no radio (4 hole)

1шт.

32

60-3088T1

DECAL - panel, no radio, covers

1шт.
