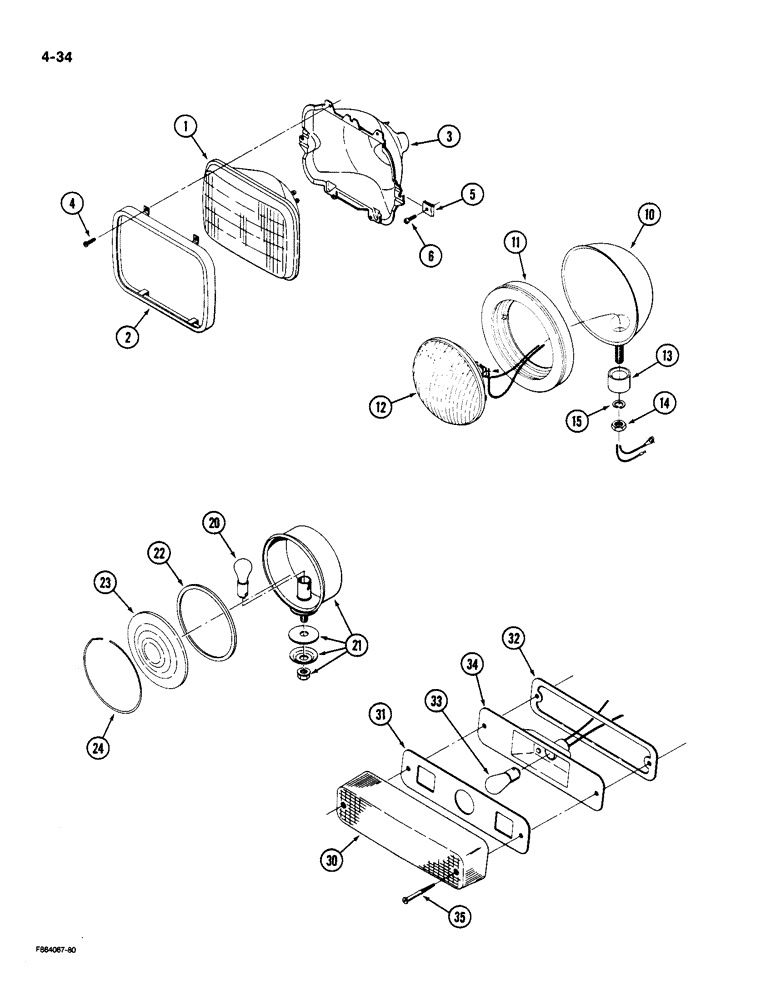

Запчасти Case IH 9190 (4-34) - HEAD LAMP ASSEMBLY (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
20-1309T91
LAMP
ASSEMBLY - head, Includes: Ref. 1 - 3
2шт.
1
20-1658T1
LIGHT
LENS - sealed beam
1шт.
2
20-1659T1
OIL SEAL
RING - lens, retaining
1шт.
3
NSS
NOT SOLD SEPARAT
RING - mounting
1шт.
4
19-1027
SELF-TAP SCREW,Cross Truss Hd, #8 x 1/2"
SCREW- tapping, truss head, No. 8 x 1/2 inch
8шт.
5
19-5621
LOCK NUT,#8-32, GB
NUT - hex lock, No. 8 inch NC
4шт.
6
19-1000
SCREW,Rnd Hd, #8 - 32 x 3/4"
- round head, No. 8 NC x 3/4 inch
4шт.
20-1141T91
LAMP
ASSEMBLY - flood (Front and outside rear), Includes: Ref. 10 - 12 and lens
8шт.
20-1072T91
LIGHT
LAMP ASSEMBLY - flood (Inside rear), Includes: Ref. 10 - 12 and lens
2шт.
10
NSS
NOT SOLD SEPARAT
HOUSING ASSEMBLY - flood lamp
1шт.
11
20-1655T1
RETAINER
RING - mounting, flood lamp assembly
1шт.
12
20-1374T1
BEAM
LENS - sealed beam (Front and outside rear), flood lamp assembly
1шт.
20-1375T1
BEAM
LENS - sealed beam (Inside rear), flood lamp assembly
1шт.
13
22-366
BUSHING
- housing, mounting, flood lamp assembly
10шт.
14
19-237
NUT,Jam, 1/2" - 20, Gr 5
- hex,jam, 1/2 inch NF, flood lamp assembly
10шт.
15
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, , Flood lamp assembly 1/2"
10шт.
22-668
LIGHT
LAMP ASSEMBLY - tail, Includes: Ref. 20 - 24
2шт.
Order 1 lamp, 22-103, 2 terminals, 22-786 and 1 body, 22-830.
1шт.
20
T34857
BULB,C6, #1157, 12.8V
- light, No. 1157, tail lamp assembly
1шт.
21
NSS
NOT SOLD SEPARAT
HOUSING - tail lamp assembly
1шт.
22
22-265
GASKET - lens, tail lamp assembly
1шт.
23
22-264
LENS - lamp, tail assembly
1шт.
24
22-263
KEY
RETAINING - lens, tail lamp assembly
1шт.
20-1950T91
LIGHT
LAMP ASSEMBLY - warning, Includes: Ref. 30 - 34
4шт.
30
22-665
LIGHT, WARNING
LENS - warning lamp assembly
1шт.
31
22-663
GASKET
- lens, warning lamp assembly
1шт.
32
22-664
GASKET
- housing, warning lamp assembly
1шт.
33
A41264
BULB,#1156, 12V
Lamp, Warning lamp assembly #1156, 12V
1шт.
34
NSS
NOT SOLD SEPARAT
HOUSING - warning lamp assembly
1шт.
35
19-1104
SCREW,Cross Pan Hd, #8 - 32 x 1 3/4", Shldrd
- shouldered, pan head slotted, No.8 NC x 1-3/4 inch, warning lamp assembly
8шт.
Выбрано товаров: 30
