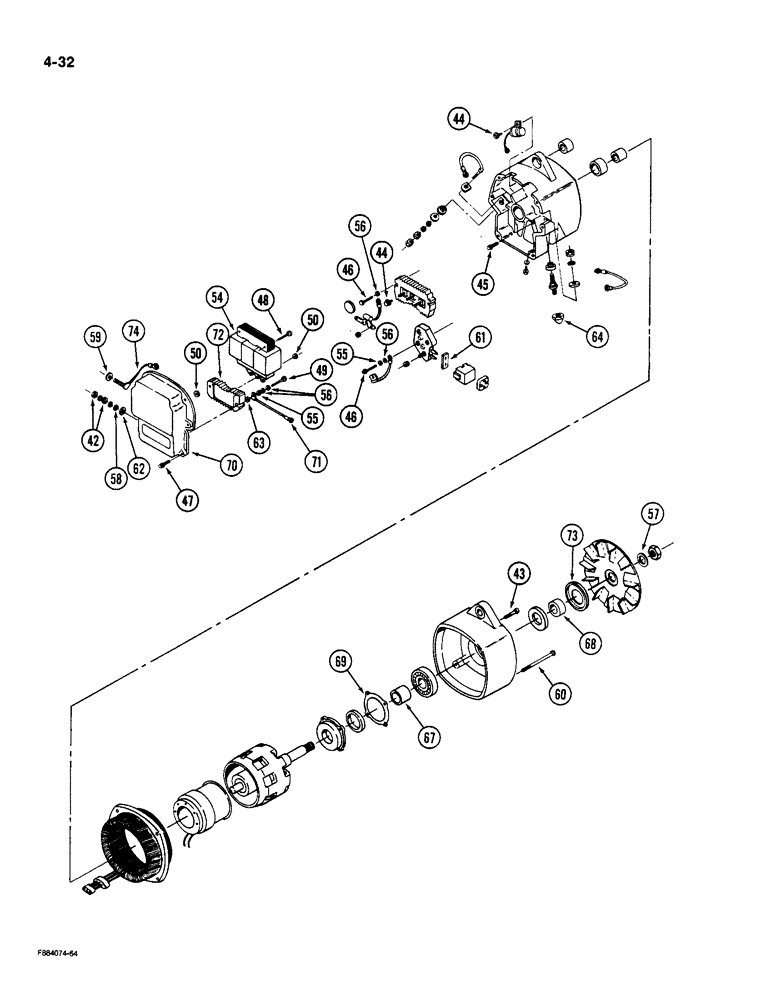

Запчасти Case IH 9190 (4-32) - ALTERNATOR ASSEMBLY (CONTD) (04) - ELECTRICAL SYSTEMS

42

19-89

NUT,1/4"-28, G5

- hex, 1/4 inch NF

2шт.

43

22-1034

SCREW

- flanged head, No. 10 NC x 1-5/16 inch

1шт.

44

22-1038

SELF-TAP SCREW

- flanged head, No. 8 NC x 7/16 inch

3шт.

45

22-1039

SCREW

- flanged head, No. 10 NC x 13/16

1шт.

46

22-1049

SCREW

- hex, keps, No. 8 NC x 1-1/4 inch

2шт.

47

2-1319

SCREW

- transformer housing

4шт.

48

2-1320

SCREW

- transformer

4шт.

49

2-1321

SCREW

- transformer bridge

1шт.

50

2-1322

WASHER

- flat

2шт.

54

2-1332

TRANSFORMER

- voltage, 24 volt

1шт.

55

22-1008

WASHER

- flat, insulating

4шт.

56

2-1323

WASHER

- flat

6шт.

57

A40792

WASHER

- flat, 5/8 x 1-1/4 x 3/32 inch

1шт.

58

2-1324

WASHER

- flat

1шт.

59

2-1325

WASHER

- flat

1шт.

60

22-1009

BOLT

- flanged head, No. 10 NC x 3-5/8 inch

3шт.

61

22-1010

BOOT

- regulator

1шт.

62

2-1326

BUSHING

- transformer housing

1шт.

63

2-1327

BUSHING

- rectifier

1шт.

64

22-1013

CAP

- terminal

1шт.

67

22-1015

COLLAR

- inside

1шт.

68

22-1016

COLLAR

- outside

1шт.

69

22-1017

GASKET

- retainer

1шт.

70

2-1328

HOUSING

- transformer

1шт.

71

2-1329

ASSEMBLY

WIRE - lead

1шт.

72

2-1330

RECTIFIER

- transformer

1шт.

73

2-1023

SLINGER - dust

1шт.

74

2-1331

TERMINAL CONNECTOR

STUD - terminal, with lead

1шт.
