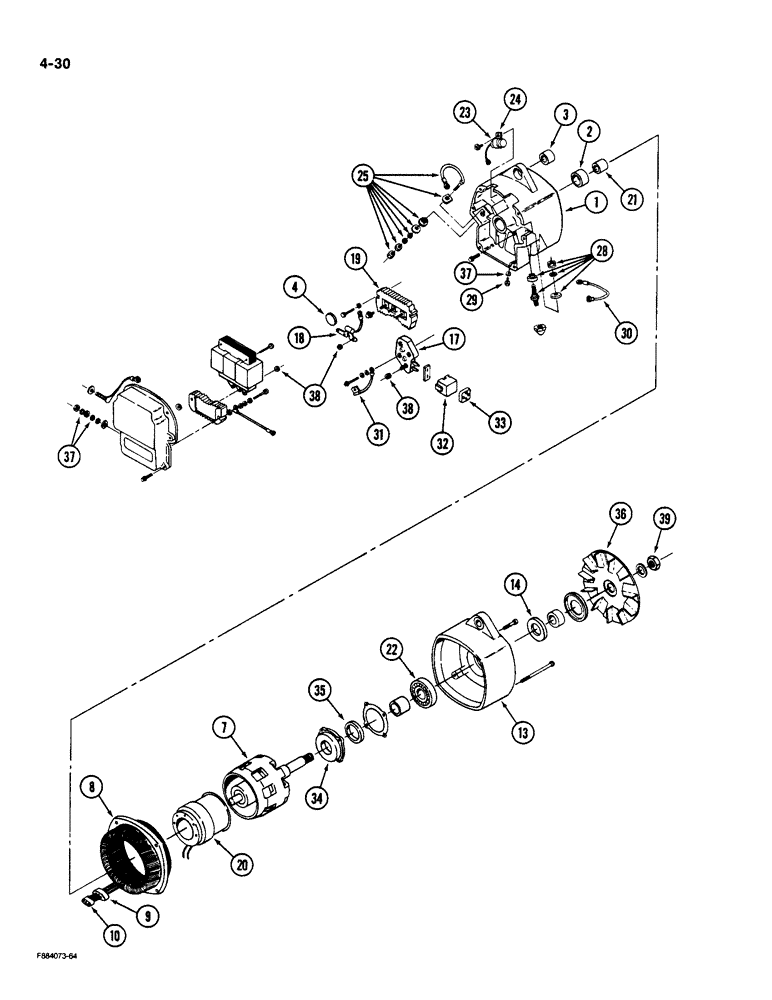

Запчасти Case IH 9190 (4-30) - ALTERNATOR ASSEMBLY (04) - ELECTRICAL SYSTEMS

47-4089

ALTERNATOR

ASSEMBLY - engine, 12/24 volt, Includes: Ref. 1 - 39

1шт.

1

2-1316

HOUSING

ASSEMBLY - rectifier, Includes: Ref. 2 - 4

1шт.

2

22-1095

BEARING ASSY,0.875" ID x 1.1875" OD x 0.812"

BEARING - outer

1шт.

3

22-1012

BUSHING

- housing

1шт.

4

22-1020

PLUG

- bearing hole

1шт.

7

22-1053

ROTOR

ASSEMBLY - alternator

1шт.

8

22-1054

STATOR

ASSEMBLY - alternator, Includes: Ref. 9 & 10

1шт.

9

22-1018

GROMMET

- wire

1шт.

10

22-1014

CLIP

- wire

1шт.

13

22-1061

FRAME

- alternator, Includes: Ref. 14

1шт.

14

22-1021

OIL SEAL

- bearing

1шт.

17

22-1064

REGULATOR

- voltage

1шт.

18

22-1065

DIODE

ASSEMBLY - alternator

1шт.

19

A45557

RECTIFIER

BRIDGE ASSEMBLY - rectifier

1шт.

20

22-1094

COIL ASSY.

COIL ASSEMBLY - field

1шт.

21

22-1096

RACE

BEARING -inner

1шт.

22

22-1097

BALL

BEARING - roller

1шт.

23

22-1098

CAPACITOR

- alternator

1шт.

24

22-1011

BRACKET

CLAMP - capacitor

1шт.

25

22-1099

PACKAGE

TERMINAL KIT - output

1шт.

28

22-1100

PACKAGE

TERMINAL KIT - relay

1шт.

29

22-1101

SCREW

- flanged head, 1/4 NC x 1/2 inch

1шт.

30

22-1103

ASSEMBLY

WIRE - lead

1шт.

31

22-1104

ASSEMBLY

WIRE - lead

1шт.

32

22-1106

ROD, CONNECTING

CONNECTOR - body

1шт.

33

A45540

CAP

- connector body

1шт.

34

22-1107

RETAINER

- bearing, Includes: Ref. 35

1шт.

35

22-1021

OIL SEAL

- bearing

1шт.

36

A45561

FAN

- alternator

1шт.

37

19-115

LOCK WASHER,1/4"

1/4"

3шт.

38

22-1022

NUT

- hex, keps, No. 8 NC

3шт.

39

22-1024

NUT

- hex, lock, 5/8 inch NF

1шт.
