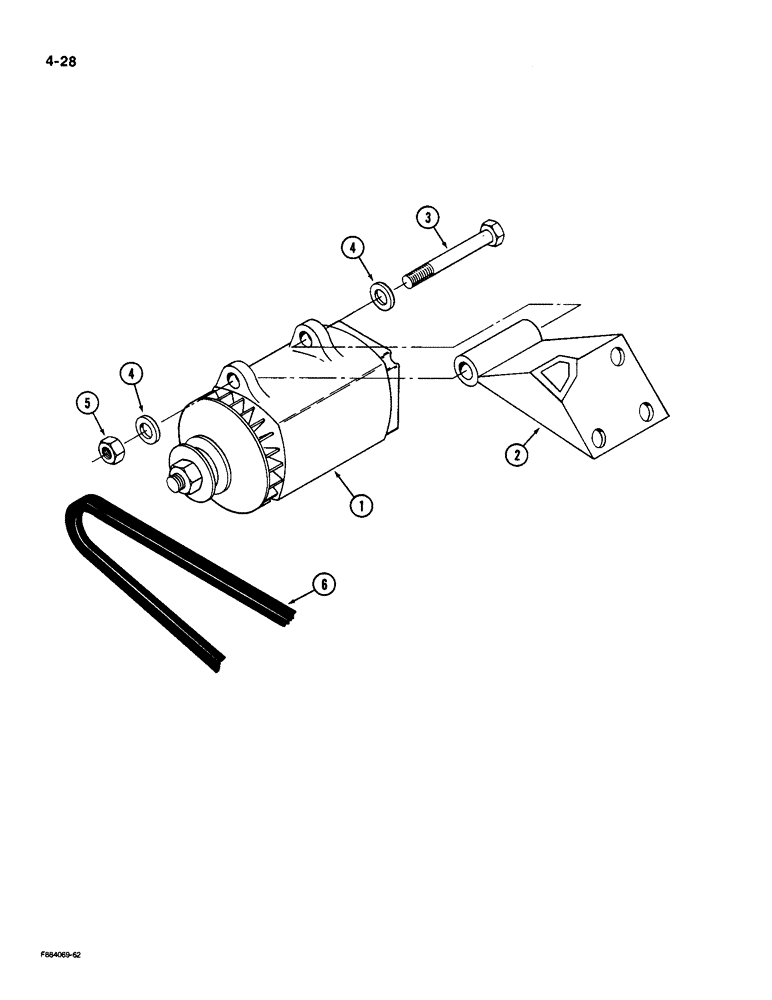

Запчасти Case IH 9190 (4-28) - ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - engine, See Figure 4-30

1шт.

2

NSS

NOT SOLD SEPARAT

MOUNT - alternator, order from an Authorized Cummins Dealer

1шт.

3

19-942

BOLT,Hex, 1/2" - 13 x 6 1/2", Gr 8

- hex, 1/2 NC x 6-1/2 inch, Grade 8

1шт.

4

495-21056

WASHER,1/2"

- flat, 1/2 x 1-3/8 x 7/64 inch

2шт.

5

19-81

NUT,1/2"-13, G5

- hex, 1/2 inch NC

1шт.

6

1-3983

V-BELT,0.70" W x 36.00" L

Alternator 0.70" W x 36.00" L

1шт.
