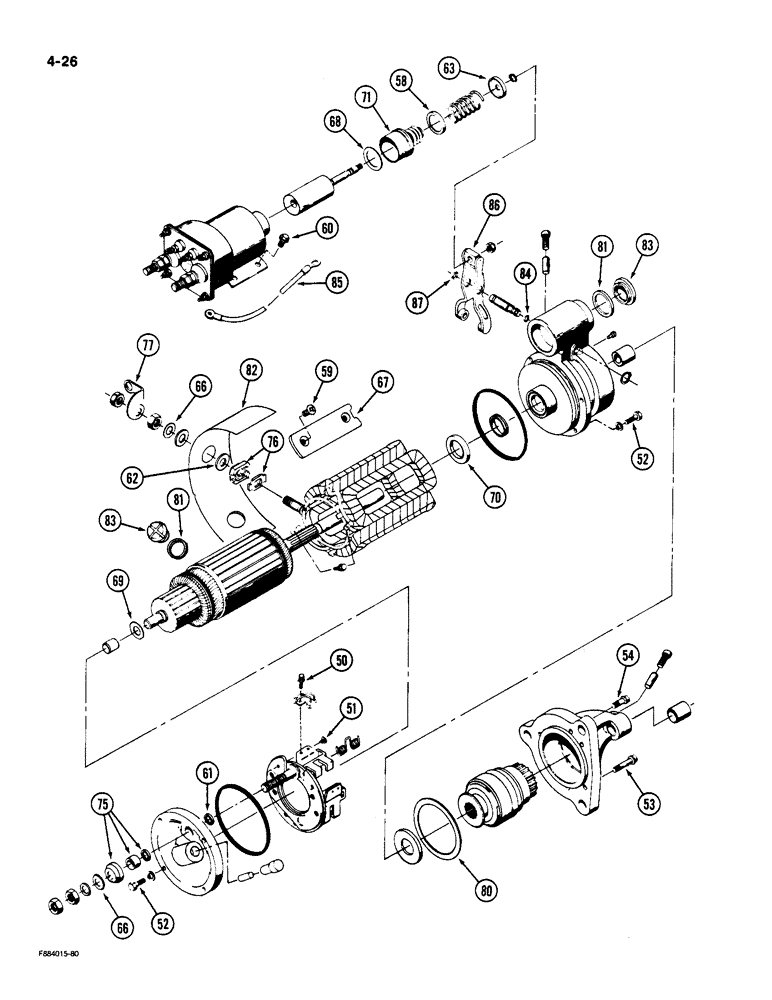

Запчасти Case IH 9190 (4-26) - STARTER ASSEMBLY (CONTD) (04) - ELECTRICAL SYSTEMS

50

A47894

SCREW,#8 - 32 x 5/16"

- brush retainer (Used with Delco 1990270 and 1990259)

8шт.

50

22-1130

SCREW

- coil lead to brush holder (Used with Delco 1109841)

12шт.

51

22-1131

SCREW

- keps, brush plate

3шт.

52

22-1132

SELF-TAP SCREW

- tapping, hex head, 1/4 NF x 1 inch

13шт.

53

22-1133

SCREW,Hex Soc Hd, 5/16"-18 x 1 1/2"

BOLT - socket head, 5/16 NC x 1-1/2 inch, Grade 8

5шт.

54

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

BOLT - socket head, 5/16 NC x 7/8 inch, Grade 8

1шт.

58

22-1057

RETAINER

- plunger spring

1шт.

59

22-1135

SCREW

- flat head cross slot, 3/8 NF x 5/8 inch

12шт.

60

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

- serrated hex head, 1/4 NC x 3/8 inch

4шт.

61

22-1025

WASHER

- insulating

2шт.

62

D30005

INSULATOR

WASHER - insulating

2шт.

63

22-1056

RETAINER

- plunger spring

1шт.

66

22-1139

WASHER

- flat, 1/2 x 7/8 x 1/32 inch

2шт.

67

2-1309

SHOE

POLE SHOE - starter

6шт.

68

A41922

WASHER

- plunger seat

1шт.

69

2-1301

WASHER

- flat

1шт.

70

22-1142

WASHER

- flat, 13/16 x 1-3/4 x 3/16 inch

1шт.

71

22-1027

BOOT

- plunger cover

1шт.

75

22-1030

BUSHING

INSULATOR PACKAGE - terminal

1шт.

76

A41925

BUSHING

- insulator

1шт.

77

2-1303

CONNECTOR, ELEC

CONNECTOR - terminal

1шт.

80

R21562

GASKET

- housing

1шт.

81

A41924

GASKET

- inspection plug

4шт.

82

2-1304

INSULATOR

- field coil

1шт.

83

22-1045

PLUG

- inspection

4шт.

84

A47259

O-RING,0.244" ID x 0.391" OD

- sealing, shaft

1шт.

85

20-1355T1

LEAD - wire

1шт.

86

22-1042

LEVER

ASSEMBLY - shift, starter drive

1шт.

87

20-1337T1

O-RING

- sealing, shaft

1шт.
