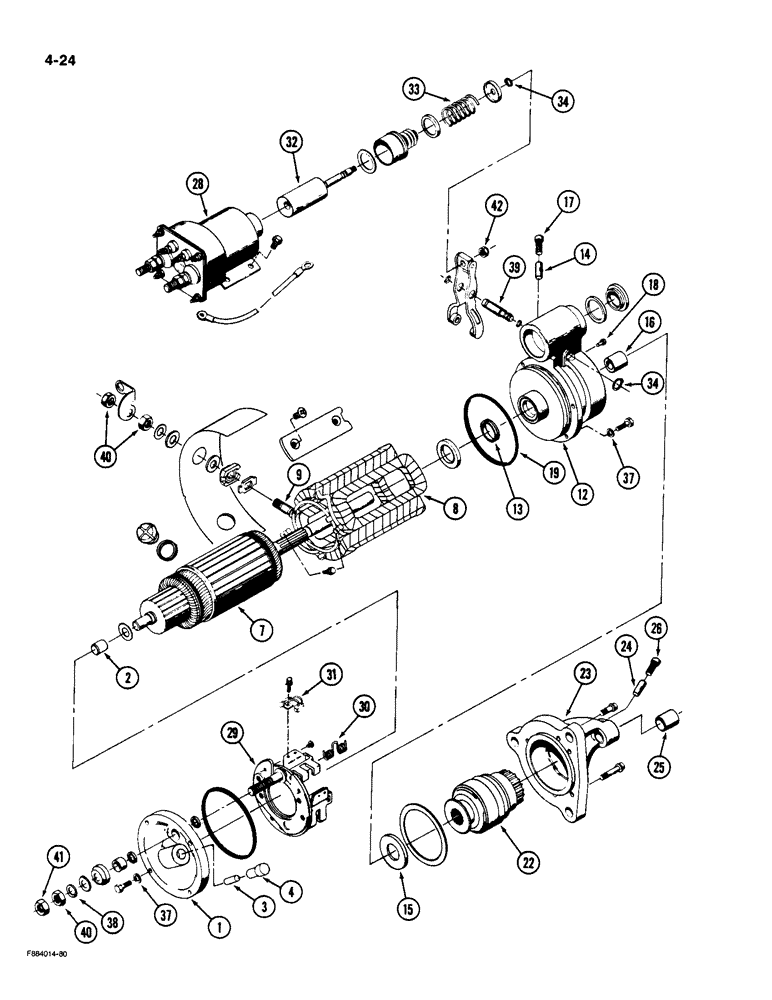

Запчасти Case IH 9190 (4-24) - STARTER ASSEMBLY (04) - ELECTRICAL SYSTEMS

20-1297T91

STARTING MOTOR

STARTER ASSEMBLY - engine (Delco No. 1990270, 1900259 and 1109841)

1шт.

1

20-1347T91

FUNNEL

COVER - commutator end, Includes: Ref. 2 - 4

1шт.

2

20-1353T1

BUSHING

- armature, commutator cover

1шт.

3

20-1366T1

WICK

FELT - bearing oil

1шт.

4

20-1339T1

CUP

PLUG - hole, felt

1шт.

7

2-1278

ARMATURE

ASSEMBLY - starter

1шт.

8

2-1279

COIL

ASSEMBLY - field, Includes: Ref. 9

1шт.

9

22-1117

STUD

BOLT - terminal

1шт.

12

20-1349T91

LEVER

HOUSING ASSEMBLY - lever, Includes: Ref. 13 - 18

1шт.

13

22-1058

OIL SEAL

SEAL - oil, lever housing

1шт.

14

20-1331T1

WICK

FELT - bearing oil

1шт.

15

A185121

WASHER

- brake

1шт.

16

20-1335T1

BUSHING

- armature, lever housing

1шт.

17

20-1339T1

CUP

PLUG - hole, felt

1шт.

18

20-1340T1

PLUG

- mounting hole

1шт.

19

2-1307

O-RING

- lever housing

1шт.

22

20-1343T1

DRIVE ASSY.

CLUTCH ASSEMBLY - drive

1шт.

23

20-1325T91

HOUSING

ASSEMBLY - drive, Includes: Ref. 24 - 26

1шт.

24

20-1331T1

WICK

FELT - bearing oil

1шт.

25

20-1334T1

BUSHING

- armature, drive housing

1шт.

26

20-1339T1

CUP

PLUG - hole, felt

1шт.

28

20-1350T1

SWITCH

ASSEMBLY - magnetic

1шт.

29

20-2111T91

PLATE ASSEMBLY - brush (Used with Delco 1990270 and 1990259), Includes: Ref. 30

1шт.

29

2-1283

PLATE ASSY.

PLATE ASSEMBLY - brush (Used with Delco 1109841), Includes: Ref. 30

1шт.

30

20-2118T1

SPRING - brush (Used with Delco 1990270 and 1990259)

4шт.

30

2-1285

SPRING

- brush (Used with Delco 1109841)

12шт.

31

20-2110T1

BRUSH - starter (Used with Delco 1990270 and 1990259)

8шт.

31

2-1284

BRUSH, COMMUTATOR

BRUSH - starter (Used with Delco 1109841)

12шт.

32

22-1124

PLUNGER

- starter

1шт.

33

A41242

SPRING

- return, plunger

1шт.

34

20-2112T1

RING, SNAP

RING - snap, retainer, plunger

2шт.

37

19-115

LOCK WASHER,1/4"

1/4"

9шт.

38

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

39

A42199

PIN

SHAFT - shift lever

1шт.

40

19-289

JAM NUT,1/2" - 13, Gr 5

- jam, 1/2 inch NC

3шт.

41

A47890

NUT

NUT - connector

1шт.

42

22-1129

JAM NUT

- hex jam, lock, 5/16 inch NF

1шт.
