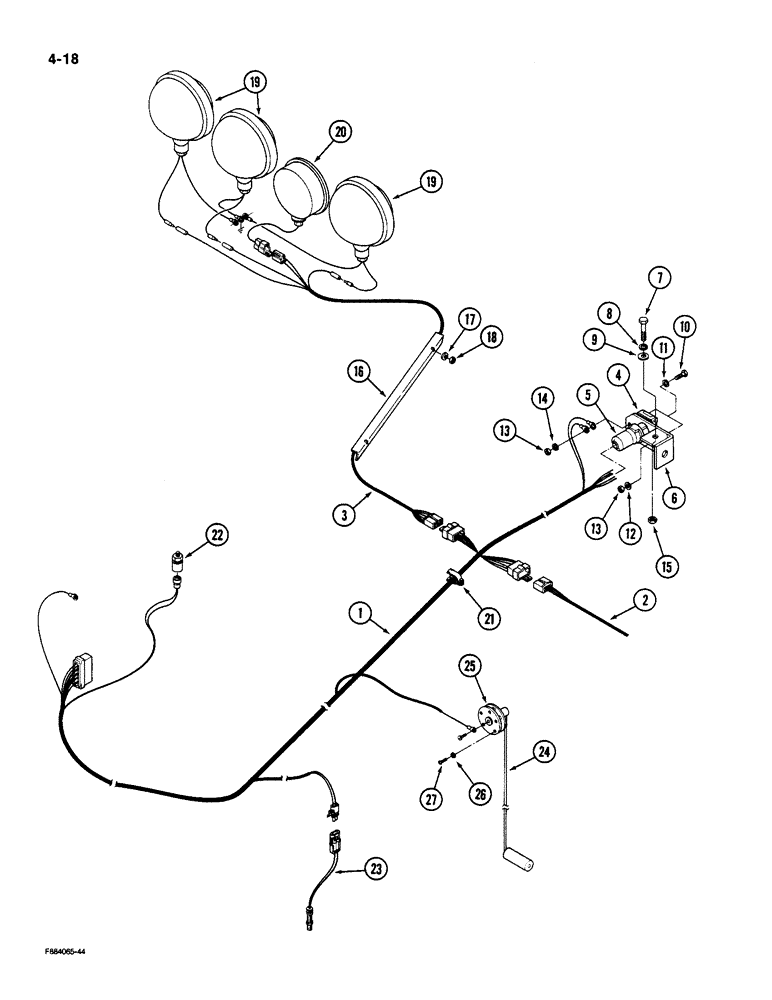

Запчасти Case IH 9190 (4-18) - REAR FRAME HARNESS (04) - ELECTRICAL SYSTEMS

1

20-2240T1

HARNESS

ASSEMBLY - rear frame

1шт.

2

47-4536

HARNESS

ASSEMBLY - rear light, left

1шт.

3

47-4535

HARNESS

ASSEMBLY - rear light, right

1шт.

4

A145795

CONNECTOR, ELEC

CONNECTOR - socket

1шт.

5

22-790

COVER

BOOT - rubber

1шт.

6

1-4819

BRACKET

- connector, socket

1шт.

7

19-269

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

- hex, 1/2 NC x 1-3/4 inch

1шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

9

19-463

WASHER,1/2", SAE

- flat, 1/2 x 1-1/4 x 3/32 inch

1шт.

10

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

11

19-116

LOCK WASHER,5/16"

5/16"

2шт.

12

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

2шт.

13

19-77

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

14

193-95

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

15

19-81

NUT,1/2"-13, G5

- hex, 1/2 inch NC

1шт.

16

51-366

PROTECTOR

GUARD - wire

2шт.

17

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

4шт.

18

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

19

REF

INSTRUCTION

LAMP ASSEMBLY - field, rear, See Figure 4-35

6шт.

20

REF

INSTRUCTION

LAMP ASSEMBLY - tail, See Figure 4-34

2шт.

21

31-1244

CLAMP

ASSEMBLY - harness, retaining

1шт.

22

REF

INSTRUCTION

SWITCH - brake light, See Figure 7-02

1шт.

23

REF

INSTRUCTION

SENSOR - magnetic, transmission, See Figure 4-12

1шт.

24

47-4340T1

SENDER UNIT

SENDER - fuel, level

1шт.

25

29-31

GASKET

- sender, fuel

1шт.

26

19-297

LOCK WASHER,#10

Washer, Lock, #10

5шт.

27

153424

SCREW,Cross Fil Hd, #10 - 32 x 0.50", Gr 2

- machine, No. 10 NF x 1/2 inch

5шт.
