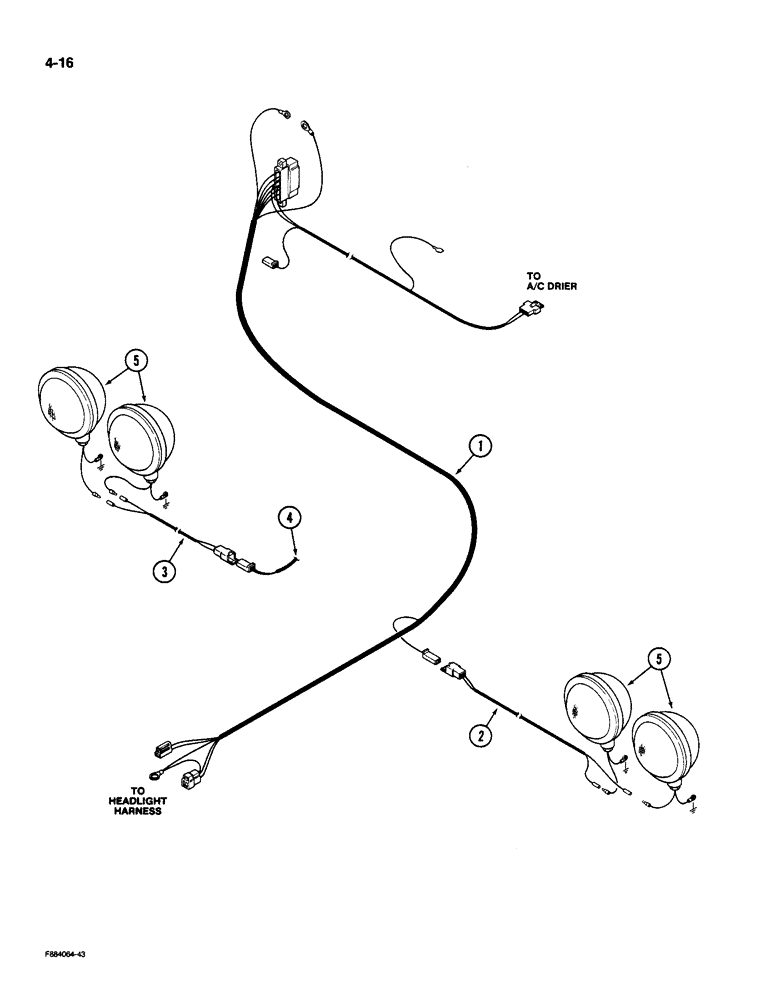

Запчасти Case IH 9190 (4-16) - FRONT FRAME HARNESS (04) - ELECTRICAL SYSTEMS

1

1-8628T1

HARNESS

ASSEMBLY - front frame

1шт.

2

47-4695

HARNESS

WIRE ASSEMBLY - field lights, left

1шт.

3

47-4694

ELECTRICAL WIRE

WIRE ASSEMBLY - field lights, right

1шт.

4

REF

INSTRUCTION

HARNESS ASSEMBLY - engine/transmission, See Figure 4-12

1шт.

5

REF

INSTRUCTION

LAMP ASSEMBLY - field, See Figure 4-34

4шт.
