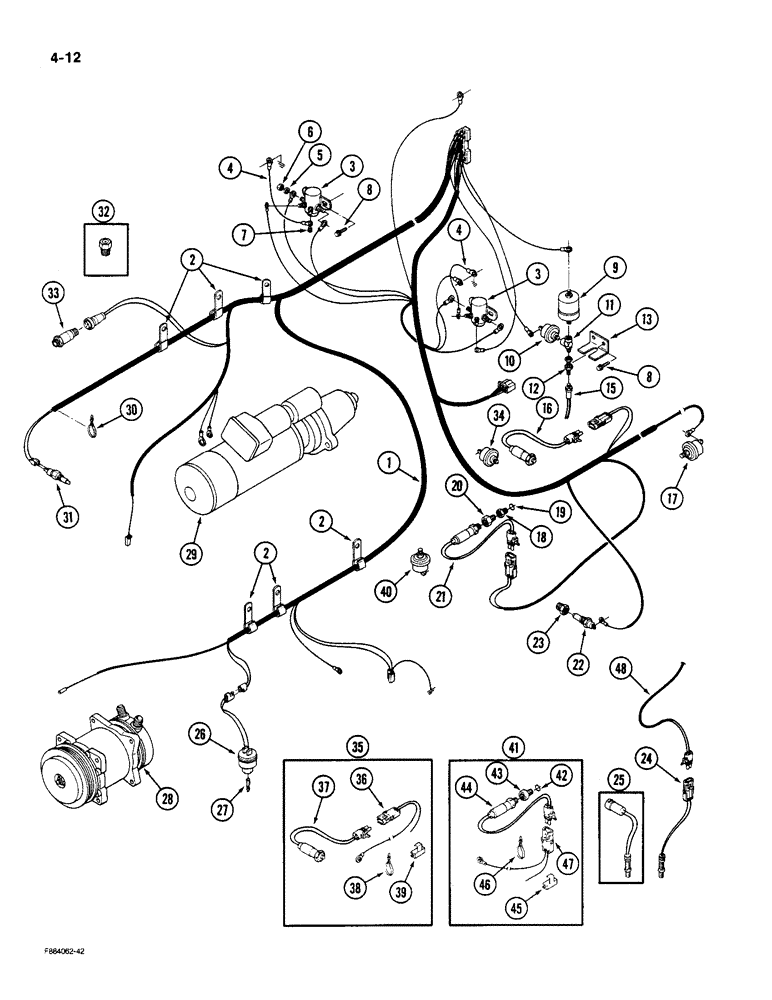

Запчасти Case IH 9190 (4-12) - ENGINE HARNESS (04) - ELECTRICAL SYSTEMS

1

20-1760T3

HARNESS

- engine (Prior to P.I.N. 131-05005)

1шт.

1

20-2236T1

HARNESS - engine (P.I.N., Serial Range: 131-05005-131-05017)

1шт.

1

20-2305T1

HARNESS

- engine (P.I.N. 131-5017 and after) (Models with engine mounted oil pressure sender only)

1шт.

19

31-1098

O-RING,5-1, 90 Duro, .414" ID x .072" Thk

1шт.

1

20-2343T1

HARNESS

- engine (P.I.N. 131-05017 and after and all 9190) models) (Models with firewall mounted engine oil pressure sender)

1шт.

42

31-1098

O-RING,5-1, 90 Duro, .414" ID x .072" Thk

1шт.

2

22-632

CLIP

- harness, retaining

6шт.

3

20-1608T1

SOLENOID

SWITCH - magnetic

2шт.

4

20-1198T1

ELECTRICAL WIRE

WIRE ASSEMBLY -, Serial Range: solenoid-ground

2шт.

5

19-116

LOCK WASHER,5/16"

5/16"

4шт.

6

19-88

NUT,5/16"-24, G5

- hex, 5/16 inch NC

4шт.

7

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- keps, No. 8 NC

4шт.

8

281-13712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - tapping, flanged head, 1/4 NC x 3/4 inch

6шт.

9

1-2227T2

SENDER UNIT

SWITCH - oil pressure, engine

1шт.

10

L57937

SWITCH

- pressure

1шт.

11

31-1353

TEE,1/8"-27 Female x 1/8"-27 Male Run

- 1/8 PT male x 1/8 inch PT female

1шт.

12

31-2615

ADAPTER

CONNECTOR - straight, bulkhead, 1/8 NPT inch thread

1шт.

13

60-5067T1

BRACKET - support, connector

1шт.

15

31-2634

HOSE ASSY.

HOSE -, Serial Range: sender-engine

1шт.

16

20-2229T1

SWITCH

ASSEMBLY - pressure, transmission

1шт.

17

22-680

SWITCH

- pressure, transmission

1шт.

18

31-607

REDUCER

CONNECTOR - straight, 1/8 PT x 1/4 PT inch thread

1шт.

20

31-2626

ADAPTER

CONNECTOR - straight, 1/4 PT x 1/2 inch thread

1шт.

21

20-2295T2

SWITCH

- pressure, transmission (P.I.N. 131-05020 and after)

1шт.

22

47-4181

IGNITION SWITCH

SWITCH - temperature, transmission

1шт.

23

31-178

BUSHING

CONNECTOR - straight, 3/8 PT x 1/2 inch PT

1шт.

24

20-2129T1

SENSOR

- magnetic, MPH (P.I.N. 131-05020 and after)

1шт.

25

20-1759T3

HARNESS

SENSOR - magnetic, MPH (Prior to P.I.N. 131-05020)

1шт.

26

20-1369T1

SENDER UNIT

SENDER - tachometer, engine

1шт.

27

20-1370T1

KEY

PIN - drive, tachometer

1шт.

28

REF

INSTRUCTION

COMPRESSOR - air conditioner, See Figure 9-78

1шт.

29

REF

INSTRUCTION

STARTER - engine, See Figures 4-24 and 4-26

1шт.

30

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch long

1шт.

31

20-1676T1

SWITCH

- temperature sender, engine

1шт.

32

47-4495

SWITCH

- filter, by-pass (Prior to P.I.N. 131-05017)

1шт.

33

90-6725T1

SWITCH

- filter, by-pass (P.I.N. 131-05017 and after)

1шт.

34

REF

INSTRUCTION

SWITCH - pressure, (Order Ref. 35, Kit 35-1612T91)

1шт.

35

35-1612T91

SWITCH

KIT - pressure switch (Prior to P.I.N. 131-05020), Includes: Ref. 36 - 39

1шт.

36

20-2274T1

ELECTRICAL WIRE

WIRE ASSEMBLY - switch, connector

1шт.

37

20-2229T1

SWITCH

- pressure

1шт.

38

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon

6шт.

39

22-217

TUBE

SPLICE - quick, electrical

1шт.

40

REF

INSTRUCTION

SWITCH - pressure (Order Ref. 41, kit 35-1618T91)

1шт.

41

35-1618T91

SWITCH

KIT - switch (Prior to P.I.N. 131-05020) (Order components), Includes: Ref. 42 - 47

1шт.

43

31-2626

ADAPTER

CONNECTOR - straight, 1/4 PT x 1/2 inch thread

1шт.

44

20-2295T2

SWITCH

ASSEMBLY - pressure, transmission

1шт.

45

22-217

TUBE

SPLICE - quick, electrical

1шт.

46

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch long

6шт.

47

20-2274T1

ELECTRICAL WIRE

WIRE ASSEMBLY - switch, connector

1шт.

48

REF

INSTRUCTION

HARNESS ASSEMBLY - frame, rear, See Figure 4-18

1шт.
