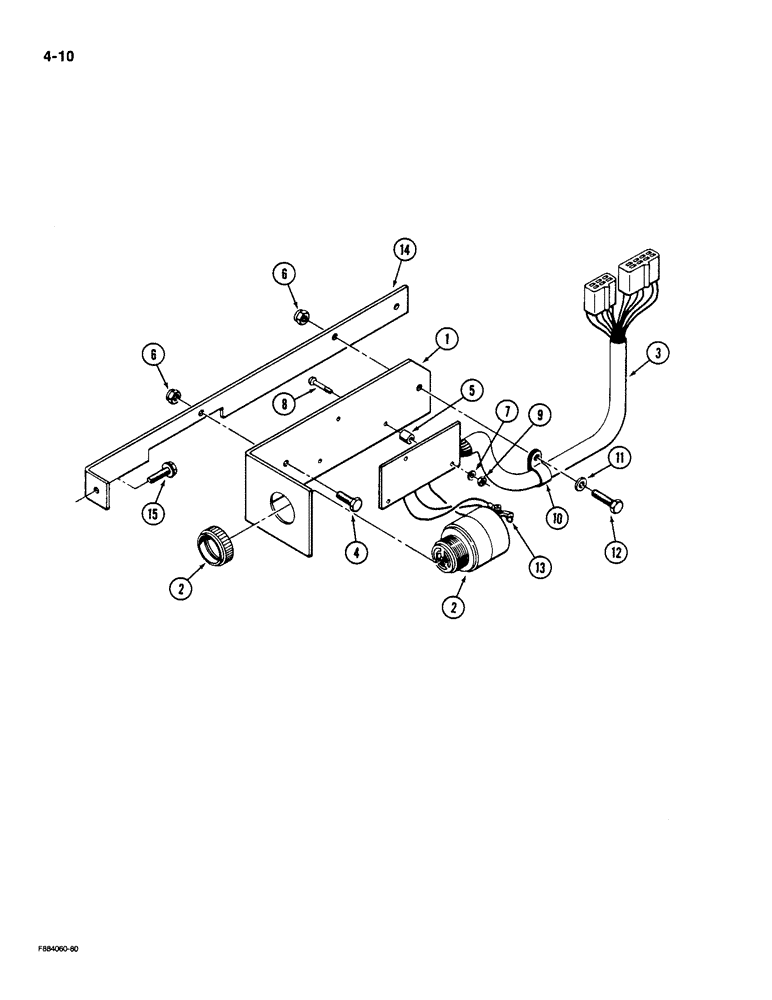

Запчасти Case IH 9190 (4-10) - AUDIO ALARM SYSTEM (04) - ELECTRICAL SYSTEMS

20-1216T92

ALARM

ASSEMBLY - audio, Includes: Ref. 1 - 13

1шт.

1

60-1360T2

BRACKET

- mounting

1шт.

2

20-1215T92

ALARM

- audio, Includes: Ref.13

1шт.

3

20-1211T92

ASSEMBLY

ELECTRONIC ASSEMBLY - alarm

1шт.

4

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1шт.

5

2-3440T1

SPACER

- circuit board

3шт.

6

111626C1

NUT

- lock, 1/4 inch NC

2шт.

7

NLS

NO LONGER SERVICED

WASHER - lock, internal tooth, No. 4

3шт.

8

19-4874

SCREW - machine, flat head, No. 4 x 1 inch

3шт.

9

225-14104

NUT,#4-40

- hex, No. 4 inch NC

3шт.

10

155850H1

CLAMP,3/8", 1/4" Bolt

- retaining

1шт.

11

25707R1

WASHER,.281" x 5/8" x .075", HDN

- flat, 1/4 x 3/4 x 1/16 inch

1шт.

12

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

13

20-1940T1

RHEOSTAT

VARISTOR - alarm

1шт.

14

4-1003

BRACKET

- mounting

1шт.

15

19-5391

SCREW,Hex Flg, 1/4" - 20 x 1/2"

- machine, washer head, 1/4 NC x 1/2 inch

1шт.
