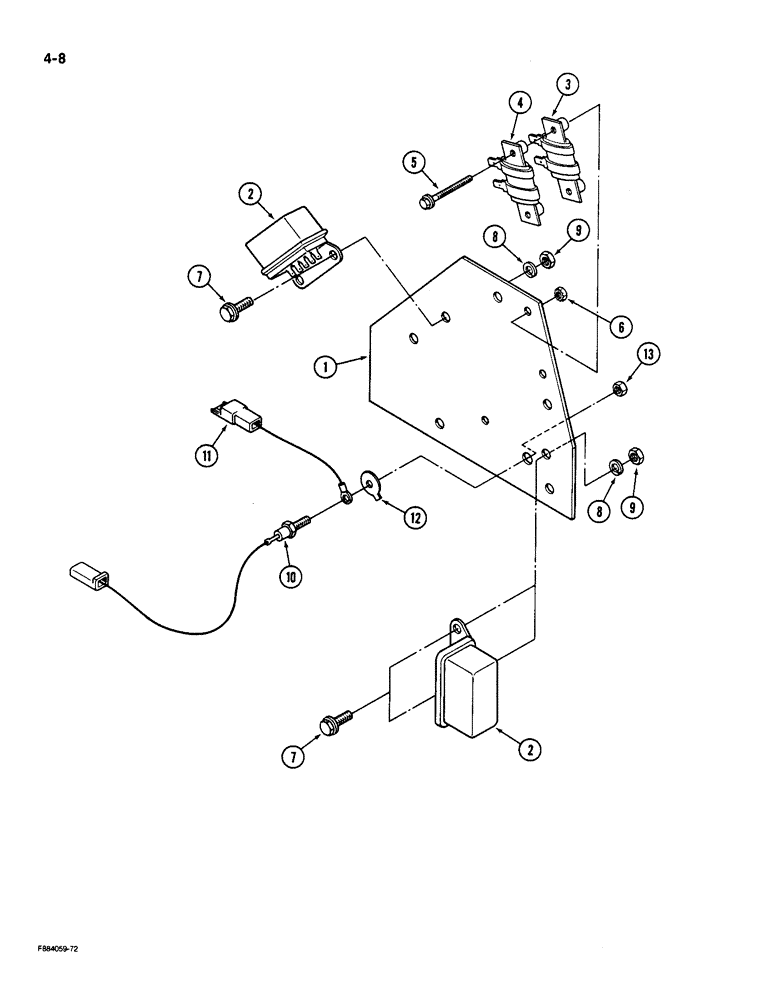

Запчасти Case IH 9190 (4-08) - RELAY PANEL (04) - ELECTRICAL SYSTEMS

2-3721T91

PLATE

PANEL ASSEMBLY - relay, Includes: Ref. 1 - 13

1шт.

1

1-3864T1

LARGE PLATE

PLATE - component

1шт.

2

1-3861

RELAY

- electrical

2шт.

3

1-3857

RESISTOR

- 2 ohm

1шт.

4

1-3858

RESISTOR

- 5 ohm

1шт.

5

19-3041

SCREW,Hex Flg, #8 - 32 x 1 1/2", Gr 2

- machine, washer head, No. 8 x 1-1/2 inch

2шт.

6

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- keps, No. 8 NC

2шт.

7

19-5391

SCREW,Hex Flg, 1/4" - 20 x 1/2"

- machine, washer head, 1/4 NC x 1/2 inch

4шт.

8

19-115

LOCK WASHER,1/4"

1/4"

4шт.

9

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

10

1-3862

RECTIFIER

ASSEMBLY - electrical

1шт.

11

1-3860

ELECTRICAL WIRE

WIRE ASSEMBLY - rectifier

1шт.

12

1-3859

INSULATOR

- rectifier

1шт.

13

19-5379

NUT

- nylon, hex, No. 10 NF

1шт.
