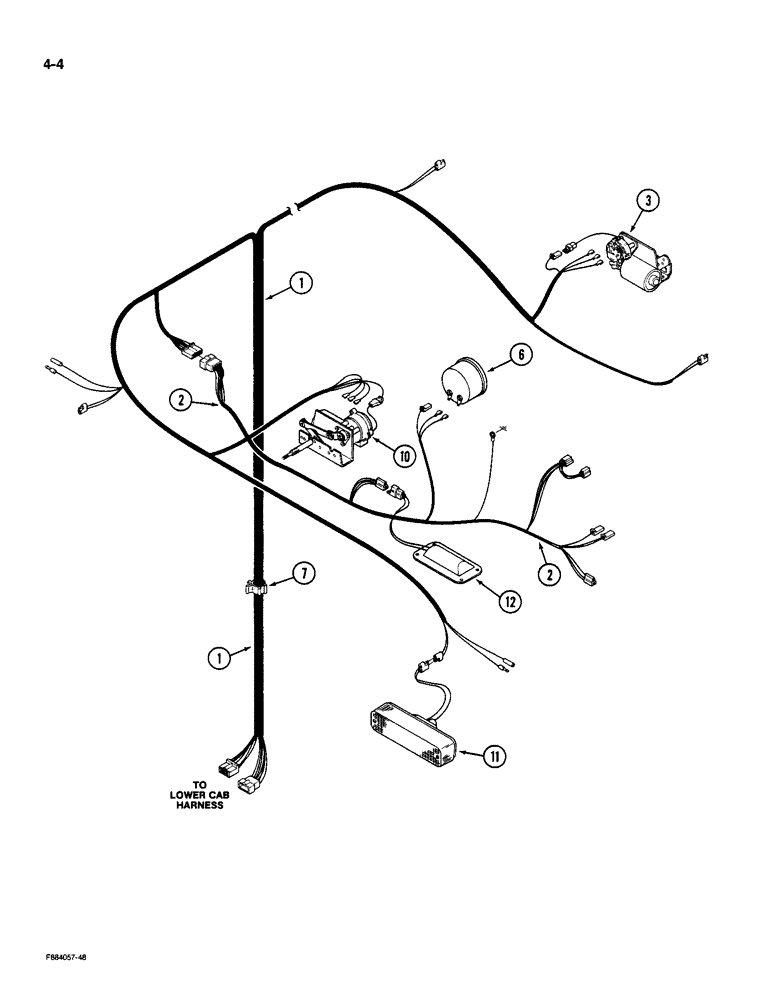

Запчасти Case IH 9190 (4-04) - OVERHEAD CAB HARNESS (04) - ELECTRICAL SYSTEMS

1

20-1812T1

HARNESS

- overhead

1шт.

2

20-1811T1

HARNESS

- upper console

1шт.

3

REF

INSTRUCTION

DRIVE ASSEMBLY - wiper, rear window, See Figure 4-43

1шт.

6

REF

INSTRUCTION

GAUGE - hourmeter, See Figure 9-60

1шт.

7

22-821

CLIP

- retaining, harness

3шт.

10

REF

INSTRUCTION

DRIVE ASSEMBLY - wiper, front window, See Figure 4-43

1шт.

11

REF

INSTRUCTION

LAMP ASSEMBLY - warning, See Figure 4-34

4шт.

12

REF

INSTRUCTION

LIGHT ASSEMBLY - dome, See Figure 9-60

2шт.
