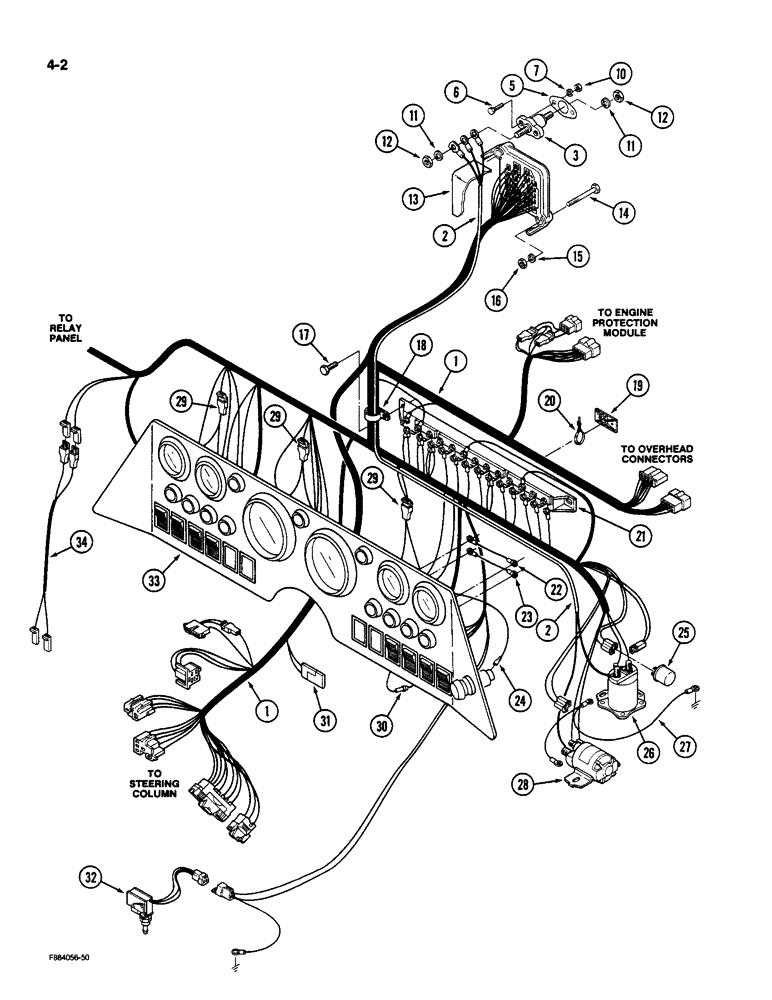

Запчасти Case IH 9190 (4-02) - LOWER CAB HARNESS (04) - ELECTRICAL SYSTEMS

1

20-1762T2

HARNESS

ASSEMBLY - main cab

1шт.

2

1-7093

HARNESS

ASSEMBLY - cab power

1шт.

3

20-1150T1

BLOCK

- junction

1шт.

5

1-7096

GASKET

- junction block

1шт.

6

436751

SCREW,Slotted Pan Hd, #10-32 x 5/8"

- No. 10 NF x 5/8 inch

2шт.

7

19-297

LOCK WASHER,#10

Washer, Lock, #10

2шт.

10

19-308

NUT,#10 - 32

- hex, No. 10 NF

2шт.

11

19-5577

LOCK WASHER

- lock, 3/8 inch

2шт.

12

115772

NUT

- 3/8 inch NC brass

2шт.

13

1-8578

COVER

- harness connector

1шт.

14

19-720T1

BOLT,Hex, 1/4" - 20 x 2 1/4", Gr 5

- hex, 1/4 NC x 2-1/4 inch

2шт.

15

19-115

LOCK WASHER,1/4"

1/4"

2шт.

16

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

17

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

6шт.

18

31-2160

CLAMP

- retaining, harness

1шт.

19

22-823

MOUNT

MOUNT - adhesive back

1шт.

20

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch long

1шт.

21

REF

INSTRUCTION

BREAKER ASSEMBLY - circuit, See Figure 4-06

1шт.

22

1-3934

HARNESS

WIRE - gauge to gauge ground

2шт.

23

1-3933

HARNESS

WIRE - gauge to gauge ignition

2шт.

24

22-802

CABLE

WIRE - gauge ground

1шт.

25

22-108

FLASHER UNIT

FLASHER - warning, Includes: bracket

3шт.

22-112

BRACKET

- flasher

3шт.

26

A77311

SWITCH

SOLENOID - electrical, field lamp

1шт.

27

1-3927

HARNESS

WIRE ASSEMBLY - solenoid ground

1шт.

28

20-1411T1

CONNECTION,ELECTRIC

SOLENOID - electrical, accessory

1шт.

29

1-3925

SOCKET

WIRE ASSEMBLY - light socket

3шт.

30

22-26

FUSE

- 20 ampere

1шт.

31

22-738

DIODE

- electrical

4шт.

32

20-1463T1

SWITCH

ASSEMBLY - brake

1шт.

33

REF

INSTRUCTION

PANEL -instrument, See Figure 9-56

1шт.

34

20-1749T1

ELECTRICAL WIRE

WIRE HARNESS - adapter

1шт.
