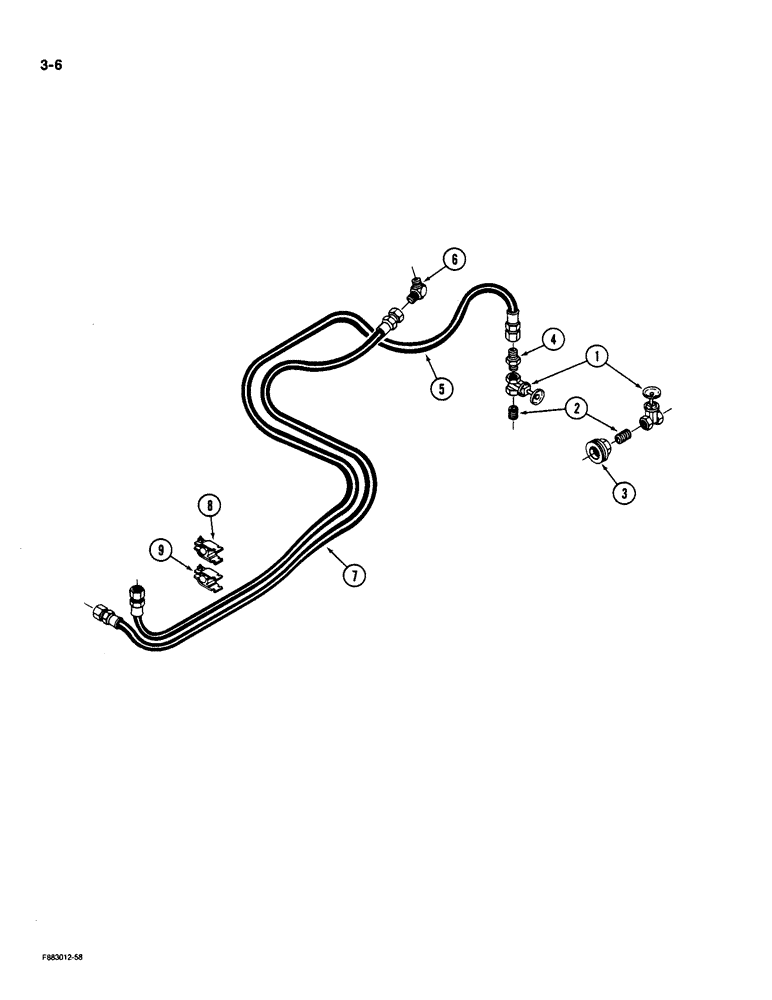

Запчасти Case IH 9190 (3-06) - FUEL LINE SYSTEM (03) - FUEL SYSTEM

1

31-1210

VALVE

- shut off, fuel

2шт.

2

31-172

NIPPLE, LUBE

CONNECTOR - straight, 3/4 PT x 1-3/8 inch

2шт.

3

192738

CONNECTOR - straight, 2 PT x 3/4 inch PT

1шт.

4

31-411

HYD CONNECTOR,7/8"-14, 37 Degree x 3/4"-14, NPTF

CONNECTOR - straight, 3/4 PT x 7/8 inch thread

1шт.

5

31-1209

HOSE

- fuel supply, 200 inch

1шт.

6

31-325

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, NPTF

- 90 degree, 3/4 PT x 3/4 inch thread

1шт.

7

31-1211

HOSE

- fuel return, 200 inch

1шт.

8

31-1212

CLAMP

- hose, 3/4 inch

3шт.

9

31-1187

CLAMP

- hose, 1 inch

3шт.
