(2-16) - BLOCK HEATER, ENGINE

Запчасти Case IH 9190 (2-16) - BLOCK HEATER, ENGINE (02) - ENGINE

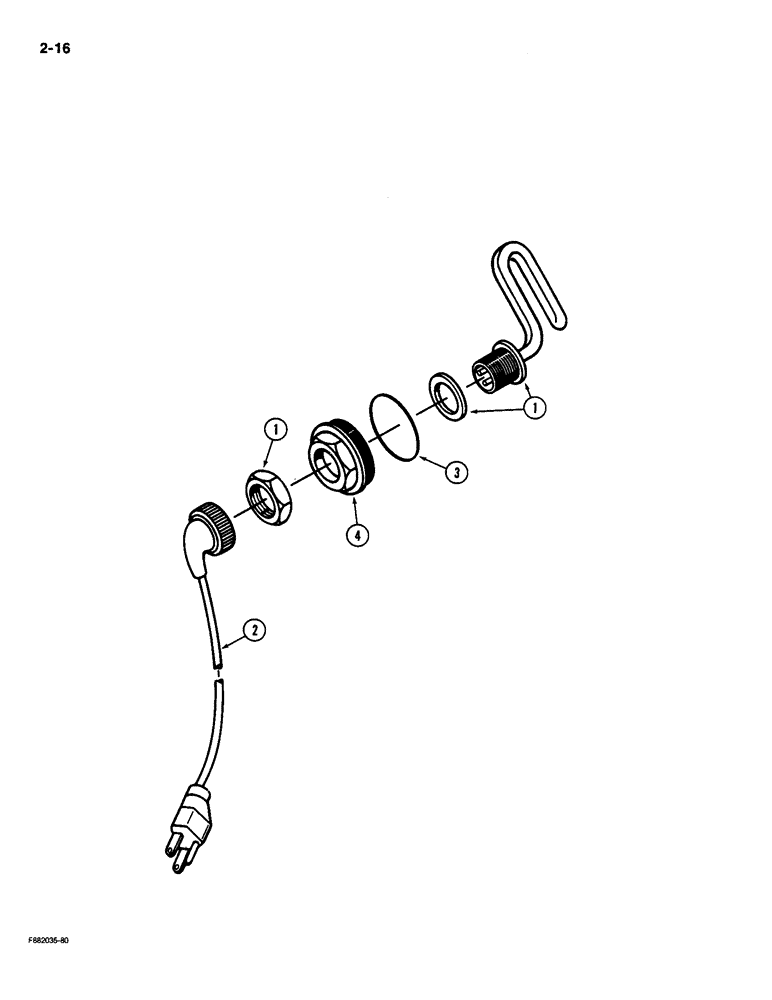

Схема запчастей Case IH 9190 - (2-16) - BLOCK HEATER, ENGINE (02) - ENGINE
2
1
4
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

90-2405T91

HEATER

ASSEMBLY - coolant, Includes: Ref. 1 - 4

1шт.

1

90-2406T1

ELEMENT

- heater

1шт.

2

90-2407T1

SET

CABLE - heater

1шт.

3

31-1844

O-RING - seal

1шт.

4

REF

INSTRUCTION

ADAPTER - element to engine block (Order from Authorized Cummins engine dealer)

1шт.
