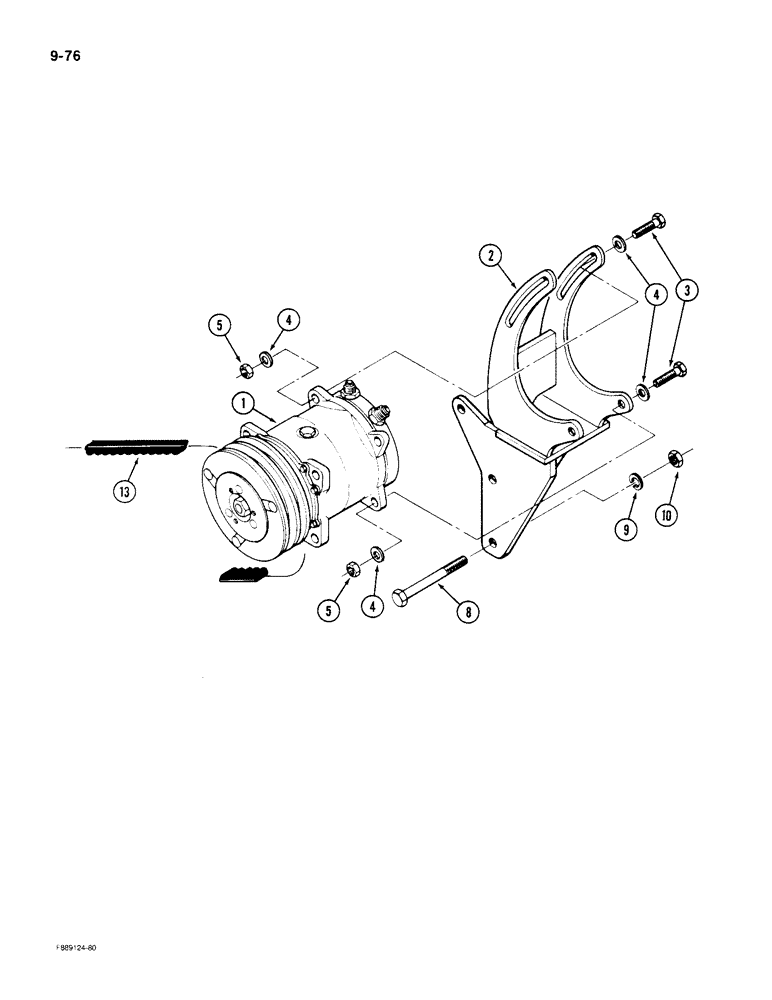

Запчасти Case IH 9190 (9-76) - AIR CONDITIONING, COMPRESSOR MOUNTING AND DRIVE (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

COMPRESSOR - air conditioning, See Figure 9-78

1шт.

2

1-9402T2

ANCHOR

MOUNT - compressor

1шт.

3

413-8244

BOLT - hex, 10 mm - 1.5 x 34 mm

4шт.

4

19-107

WASHER

- flat, 3/8 x 1 x 5/64 inch

8шт.

5

413-8245

NUT - hex, 10 mm - 1.5

4шт.

8

26-664

BOLT,Hex, 3/8" - 16 x 4", Gr 8

- hex, 3/8 NC x 4 inch, Grade 8

3шт.

9

492-11038

LOCK WASHER,3/8"

3шт.

10

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

13

90-5774T1

V-BELT,0.53" W x 54.00" L

Compressor 0.53" W x 54.00" L

1шт.
