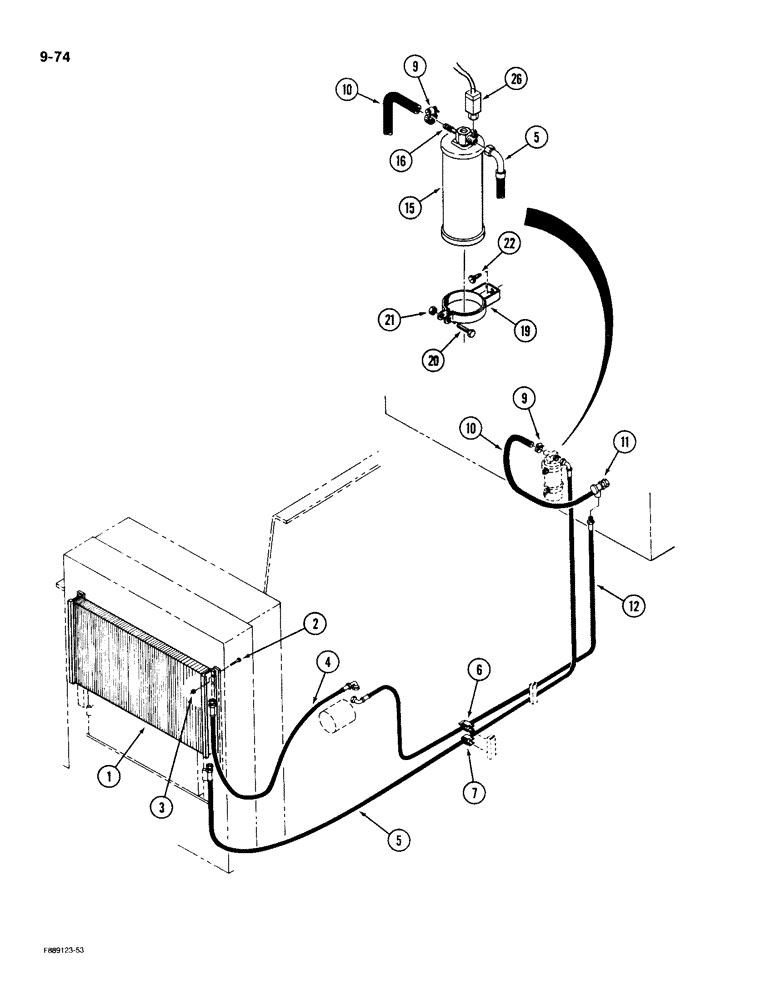

Запчасти Case IH 9190 (9-74) - AIR CONDITIONING, CONDENSER, RECEIVER-DRIER AND PLUMBING (09) - CHASSIS/ATTACHMENTS

1

2-3370T1

CONDENSER

ASSEMBLY - air conditioning

1шт.

2

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

- machine, pan head, No. 10 NF x 1/2 inch

8шт.

3

19-481

SERRATED NUT

- hex, keps, No. 10 NF

8шт.

4

25-380

HOSE

ASSEMBLY - discharge, Serial Range: compressor-condenser

1шт.

5

31-1356

HOSE ASSY.

HOSE ASSEMBLY -, Serial Range: condenser-receiver-drier

1шт.

6

31-1187

CLAMP

ASSEMBLY - hose, 1 inch

2шт.

7

31-1212

CLAMP

- hose, 3/4 inch

2шт.

9

25-48

HOSE CLAMP

CLAMP - hose, 3/4 to 1-1/8 inch

1шт.

10

31-1351

A/C HOSE,0.31" ID x 22.00" , SAE J516 Type A

0.31" ID x 22.00", SAE J516 Type A, Assy - Receiver-drier to thermal expansion valve

1шт.

11

REF

INSTRUCTION

VALVE - thermal expansion valve, See Figure 9-67

1шт.

12

31-1571

HOSE

ASSEMBLY - thermal expansion, Serial Range: valve-compressor

1шт.

15

1-7778T1

AIR CONDITIONER

RECEIVER-DRIER - freon, Includes: Ref. 16

1шт.

16

31-2795

ADAPTER

CONNECTOR - straight, 5/8 x 5/16 inch thread

1шт.

19

1-8563

CLAMP BRACKET

BRACKET - mounting, receiver-drier

2шт.

20

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.

21

280129

NUT,1/4"-20

NUT - hex lock, 1/4 inch NC

2шт.

22

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW - hex head tapping, 1/4 NC x 1/2 inch

2шт.

26

25-1002

SWITCH

- low pressure, receiver-drier

1шт.
