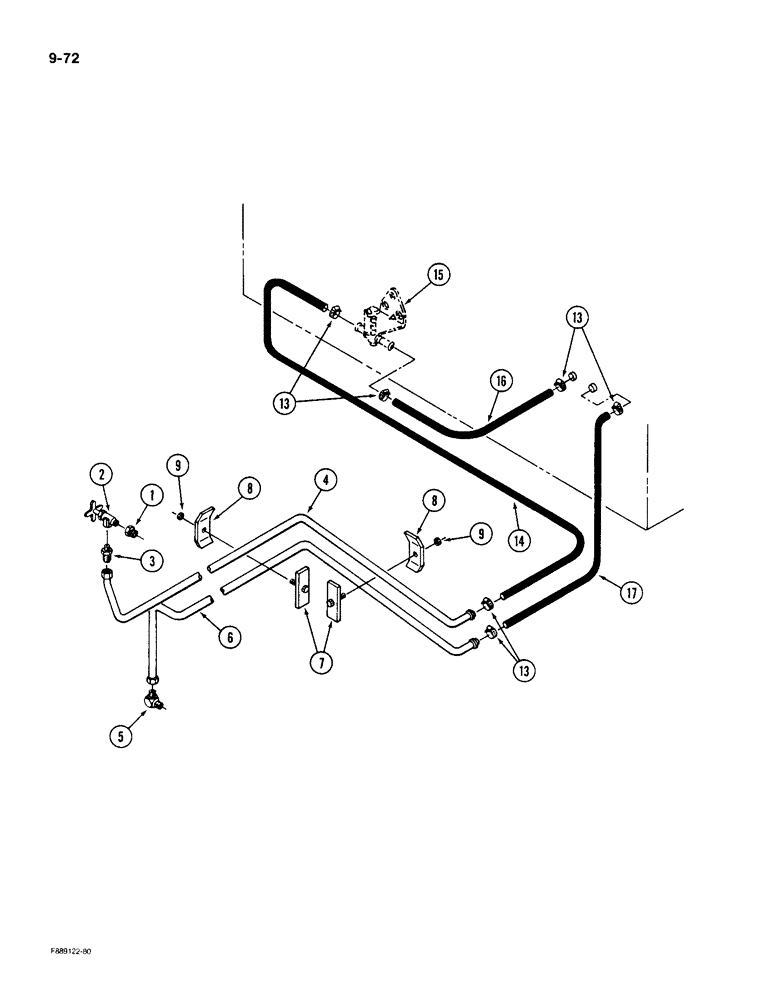

Запчасти Case IH 9190 (9-72) - HEATER PLUMBING (09) - CHASSIS/ATTACHMENTS

1

31-13

BUSHING

CONNECTOR - straight, 1/2 x 3/4 inch PT

1шт.

2

31-1275

SHUT-OFF VALVE

VALVE - shut off, 1/2 x 3/8 inch PT female

1шт.

3

31-319

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, NPTF

CONNECTOR - straight, 3/8 PT x 7/8 inch thread

1шт.

4

90-3945T1

TUBE,.625" OD

- heater

1шт.

5

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- 90 degree, 3/4 PT x 7/8 inch thread

1шт.

6

90-3946T1

TUBE,.625" OD

- heater

1шт.

7

90-3948T1

BRACKET - clamp mounting

2шт.

8

32-1000

CLAMP

- tubing, heater

2шт.

9

280129

NUT,1/4"-20

NUT - hex lock, 1/4 inch NC

2шт.

13

25-285T1

HOSE CLAMP,#08, 0.50/0.91 Type F Worm

CLAMP - hose, 1/2 to 7/8 inch

6шт.

14

NSS

NOT SOLD SEPARAT

HOSE - heater, 5/8 x 57 inch (Order 97252C1, Serial Range: cut-length)

1шт.

15

REF

INSTRUCTION

VALVE - water, shut off, See Figure 9-70

1шт.

16

NSS

NOT SOLD SEPARAT

HOSE - heater, 5/8 x 20 inch (Order 97252C1, Serial Range: cut-length)

1шт.

17

NSS

NOT SOLD SEPARAT

HOSE - heater, 5/8 x 46 inch (Order 97252C1, Serial Range: cut-length)

1шт.
