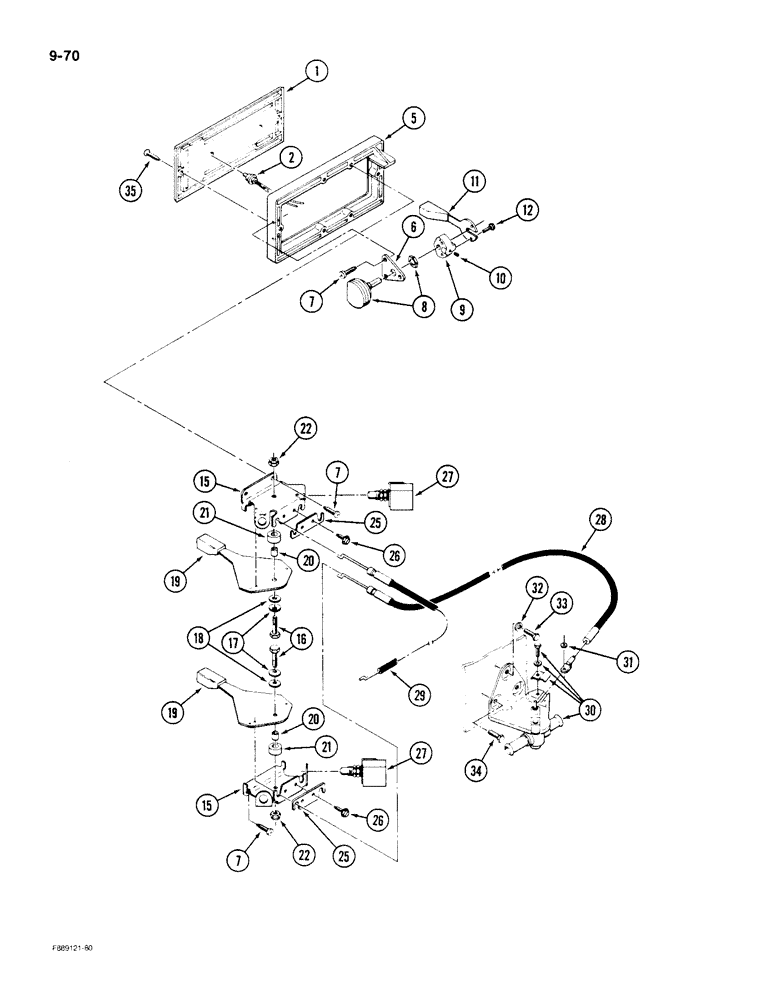

Запчасти Case IH 9190 (9-70) - AIR CONDITIONING AND HEATER CONTROLS (09) - CHASSIS/ATTACHMENTS

60-2861T91

PANEL

- face plate, climate control (9190), Includes: Ref. 1 & 2

1шт.

60-2862T91

PANEL

- face plate, climate control (KP 525), Includes: Ref. 1 & 2

1шт.

1

60-2411T1

PANEL

- climate control (9190)

1шт.

1

NSS

NOT SOLD SEPARAT

PANEL - climate control (KP 525) (Order 60-2862T91)

1шт.

2

20-1461T1

LIGHT ASSY.

LIGHT ASSEMBLY - panel

1шт.

5

25-1064

BRACKET

PANEL - mounting, controls

1шт.

6

60-2325T2

BRACKET

- mounting, blower motor switch

1шт.

7

19-1036T1

SELF-TAP SCREW,Pan Hd, #10 x 1/2"

SCREW - tapping, pan head, No. 10 x 1/2 inch

6шт.

8

20-1462T2

SWITCH

- motor, blower

1шт.

9

60-2735T1

HUB ASSY.

HUB - lever, switch actuating

1шт.

10

19-5926

SET SCREW

SCREW - set, No. 8 NC x 3/8 inch

1шт.

11

60-2324T1

LEVER

- actuating, blower motor switch

1шт.

12

19-5963

SCREW,Hex Wshr Hd, #6 - 32 x 3/8"

- machine, flanged head, No. 6 NC x 3/8 inch

2шт.

15

60-2733T1

BRACKET

- lever mounting

2шт.

16

363-81020

SCREW,Hex Wash Hd, #10-32 x 1 1/4"

- machine, flanged head, No. 10 NF x 1 inch

2шт.

17

19-5995

SPRING WASHER

- spring, 5/16 inch

2шт.

18

19-5998

WASHER

- flat, plastic, 5/16 x 3/4 x 1/8 inch

2шт.

19

60-2732T2

LEVER

- control, cable and switch

2шт.

20

19-5996

ANCHOR

SPACER - threaded, No. 10 NF x 5/8 inch

2шт.

21

19-5997

SPACER

- lever, 5/16 x 3/4 x 3/8 inch

2шт.

22

231-24109

LOCK NUT,#10-32, GB

NUT - hex lock, No. 10 NF

2шт.

25

60-2734T1

RETAINER

- cable, control

2шт.

26

9424856

SELF-TAP SCREW,Hex Wash Hd, #8 x 3/8"

SCREW - tapping, flanged head, No. 8 NC x 3/8 inch

4шт.

27

20-1463T1

SWITCH

- electrical, compressor clutch or blower motor

2шт.

28

60-2687T1

CABLE

- actuating, water valve

1шт.

29

60-2686T1

CABLE

- actuating, defroster

1шт.

30

60-2392T1

DRAIN VALVE

VALVE - water shut off

1шт.

31

19-5491

OIL SEAL

RING - retainer, 3/16 inch

1шт.

32

19-699

WASHER,3/16"

- flat, 7/32 x 1/2 x 3/64 inch

1шт.

33

19-259

SELF-TAP SCREW,Hex, #10 x 3/4"

SCREW - tapping, hex head, No. 10 NC x 3/4 inch

1шт.

34

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - tapping, flanged head, No. 10 NC x 1/2 inch

2шт.

35

19-1018

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - tapping, pan head, No. 10 NS x 3/4 inch

2шт.
