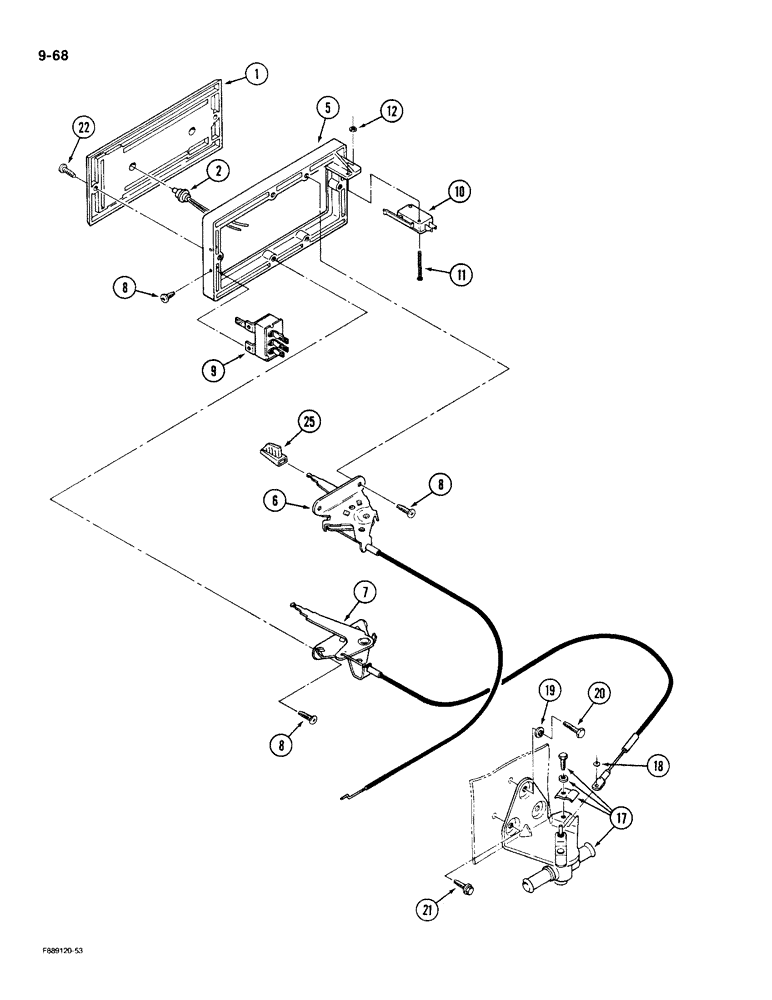

Запчасти Case IH 9190 (9-68) - AIR CONDITIONING AND HEATER CONTROLS, KP 525, EARLY STYLE (09) - CHASSIS/ATTACHMENTS

60-2862T91

PANEL

- face plate, climate control, Includes: Ref. 1 & 2

1шт.

1

NSS

NOT SOLD SEPARAT

PANEL - climate control (Order 60-2862T91)

1шт.

2

20-1461T1

LIGHT ASSY.

LIGHT ASSEMBLY - panel

1шт.

25-1006

NUT

PANEL ASSEMBLY - climate control, Includes: Ref. 5 - 12

1шт.

5

25-1064

BRACKET

PANEL - mounting, controls

1шт.

6

25-1065

LEVER

- defroster (With cable)

1шт.

7

25-1066

LEVER

- water valve (With cable)

1шт.

8

19-1036T1

SELF-TAP SCREW,Pan Hd, #10 x 1/2"

SCREW - tapping, pan head, No. 10 x 1/2 inch

6шт.

9

25-1068

SWITCH

- motor, blower

1шт.

10

25-1067

SWITCH

- compressor clutch

1шт.

11

19-1035

SCREW,Rnd Hd, #4 - 40 x 1"

- machine, round head, No. 4 NC x 1 inch

2шт.

12

225-14104

NUT,#4-40

- hex, No. 4 NC

2шт.

17

60-2392T1

DRAIN VALVE

VALVE - water shut off

1шт.

18

19-5491

OIL SEAL

RING - retainer, 3/16 inch

1шт.

19

19-699

WASHER,3/16"

- flat, 7/32 x 1/2 x 3/64 inch

1шт.

20

19-259

SELF-TAP SCREW,Hex, #10 x 3/4"

SCREW - tapping, hex head, No. 10 NC x 3/4 inch

1шт.

21

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - tapping, flanged head, No. 10 NC x 1/2 inch

2шт.

22

19-1018

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - tapping, pan head, No. 10 NS x 3/4 inch

2шт.

25

25-1008

BALL KNOB

KNOB - lever, control

3шт.
