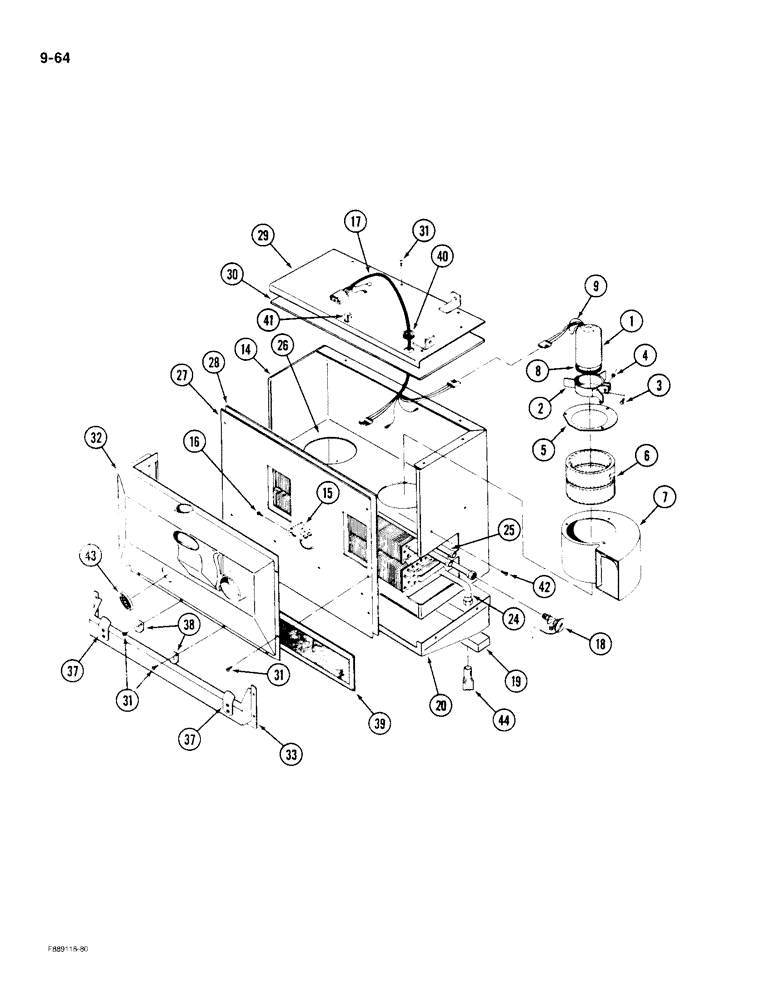

Запчасти Case IH 9190 (9-64) - AIR CONDITIONING AND HEATER MODULE ASSEMBLY, PRIOR TO P.I.N. 131-03213 (09) - CHASSIS/ATTACHMENTS

2-3719T91

CONTROL

MODULE ASSEMBLY - air conditioner heater, Includes: Ref. 1 - 44

1шт.

NSS

NOT SOLD SEPARAT

BLOWER ASSEMBLY - air (Order 35-1614T91), Includes: Ref. 1 - 9

1шт.

Kit 35-2641T91 includes later style blower assembly, 60-2641T91 (as shown on Figure 9-66) and the necessary parts to modify existing module assembly.

1шт.

1

1-4005T1

MOTOR

- blower (May no longer be available; if not, order 35-1614T91, quantity 1)

2шт.

P/N 1-4005t1 is no longer available from supplier. only option is to order kit P/N 35-1614t91.

1шт.

2

25-1049

BRACKET

- mounting motor

2шт.

3

19-159

SCREW,Sl Rnd Hd, #10 - 24 x 3/4", Gr 2

- machine, round head, No. 10 NC x 3/4 inch

2шт.

4

19-5571

SERRATED NUT

- hex keps, No. 10 NC

2шт.

5

25-1047

OIL SEAL

RING - inlet, blower

2шт.

6

25-1046

BLOWER

WHEEL - blower

2шт.

7

25-1045

HOUSING

- blower wheel

2шт.

8

25-1050

GASKET

- motor

2шт.

9

25-1048

ELECTRICAL WIRE

WIRE - ground

2шт.

14

1-8083

CURTAIN

HOUSING - module

1шт.

15

25-1039

THERMOSTAT

- air conditioner

1шт.

16

19-1027

SELF-TAP SCREW,Cross Truss Hd, #8 x 1/2"

SCREW - tapping, truss head, No. 8 x 1/2 inch

2шт.

17

20-1242T1

HARNESS

- wire, blower motors

1шт.

18

1-7844

VALVE

- expansion

1шт.

19

25-1059

PAD

- foam, condensation pan to floor boards

1шт.

20

1-8087

PAN

- condensation

1шт.

24

1-7842

COIL

- evaporator

1шт.

25

1-7843

HEATER ASSY.

CORE - heater

1шт.

26

25-1043

PLATE

- mounting, blower motor

1шт.

27

1-8386

PANEL

- front cover

1шт.

28

25-1054

INSULATOR

INSULATION - front panel

1шт.

29

25-1055

COVER

PANEL - top cover

1шт.

30

25-1056

INSULATOR

INSULATION - top panel

1шт.

31

1276100C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - tapping, truss head, No. 8 x 3/8 inch

28шт.

32

25-1057

TRANSMISSION

COVER - transition, air flow

1шт.

33

1-2066

TRANSMISSION

PANEL - filter mounting

1шт.

37

1-2068

CLAMP

- filter retaining

2шт.

38

1-2067

CLIP

- filter retaining

2шт.

39

1-2065

FILTER

- air inlet, with foam seal

1шт.

40

31-1008

GROMMET

- wire harness

1шт.

41

2-1374

CLIP

- cable mounting

1шт.

42

9418047

SCREW,#12 - 12 x 1/2", Gr 2

- tapping, flanged head, No. 10 x 1/2 inch

4шт.

43

25-1071

GUARD

LOUVER ASSEMBLY - air deflection

1шт.

44

25-1060T1

TUBE,1" ID, 1.06" OD, 3" Length

- drain, condensation

2шт.
