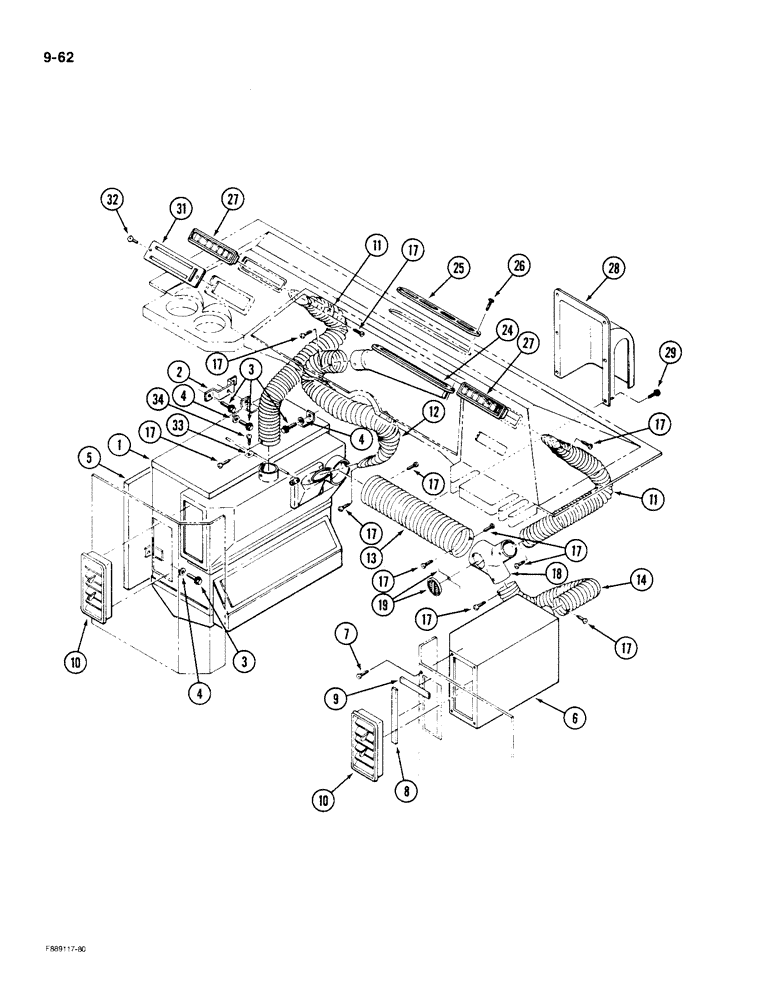

Запчасти Case IH 9190 (9-62) - AIR CONDITIONING AND HEATER MODULE (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

MODULE ASSEMBLY - air conditioner and heater, See Figure 9-64 or 9-66

1шт.

2

1-5335

BRACKET - mounting, module

1шт.

3

281-13712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - tapping, flanged head, 1/4 NC x 3/4 inch

5шт.

4

19-467

LOCK WASHER,Ext Tooth, 1/4"

WASHER - lock, 1/4 inch

3шт.

5

1-8653

INSULATOR

INSULATION -, Serial Range: cab-module

1шт.

6

1-4626

TRANSMISSION

HOUSING - air box

1шт.

7

19-1019

SCREW,Flg, #10 - 32 x 3/4"

- machine, flanged head, No. 10 NF x 3/4 inch

4шт.

8

NSS

NOT SOLD SEPARAT

SEAL - louver, 1 x 7-3/8 inch (Order 60-2895T2, Serial Range: cut-length)

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - louver, 1 x 4-13/16 inch (Order 60-2985T2, Serial Range: cut-length)

1шт.

10

25-1011

VENT

LOUVER - air deflection

2шт.

11

25-1016T1

HOSE

- air, to dash louvers

2шт.

12

1-5398

HOSE,17.50"

- to Defrost Duct 17.50"

1шт.

13

60-4648T1

AIR HOSE,3.00" ID x 36.00"

- to hose connector 3.00" ID x 36.00"

1шт.

14

1-6660

HOSE,8.00"

- air, hose connector to air box 8.00"

1шт.

17

19-5822

SELF-TAP SCREW,Cross Truss Hd, #8 x 1/2"

SCREW - tapping, pan head, No. 8 x 1/2 inch

11шт.

18

1-4625

ROD, CONNECTING

CONNECTOR - air hose, Includes: Ref. 19

1шт.

19

25-1071

GUARD

LOUVER ASSEMBLY - air deflection

1шт.

24

25-1012T1

DEFROSTER

DUCT - defrost

1шт.

25

25-1013

GRILLE

- defrost duct

1шт.

26

9424881

SCREW,8" - 18 x 1"

- tapping, pan head, No. 8 x 1 inch

2шт.

27

25-1010T1

VENT

LOUVER - air deflection, dash

2шт.

28

1-9433

COVER

- air hose

1шт.

29

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - tapping, flanged head, No. 10 NC x 1/2 inch

2шт.

31

REF

INSTRUCTION

PANEL - control, air conditioner, heater and fan, See Figure 9-69 or 9-71

1шт.

32

19-1018

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - tapping, pan head, No. 10 NS x 3/4 inch

2шт.

33

31-1291

CLAMP -cable

1шт.

34

9419328

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - tapping, pan head, No. 10 x 1/2 inch

1шт.
