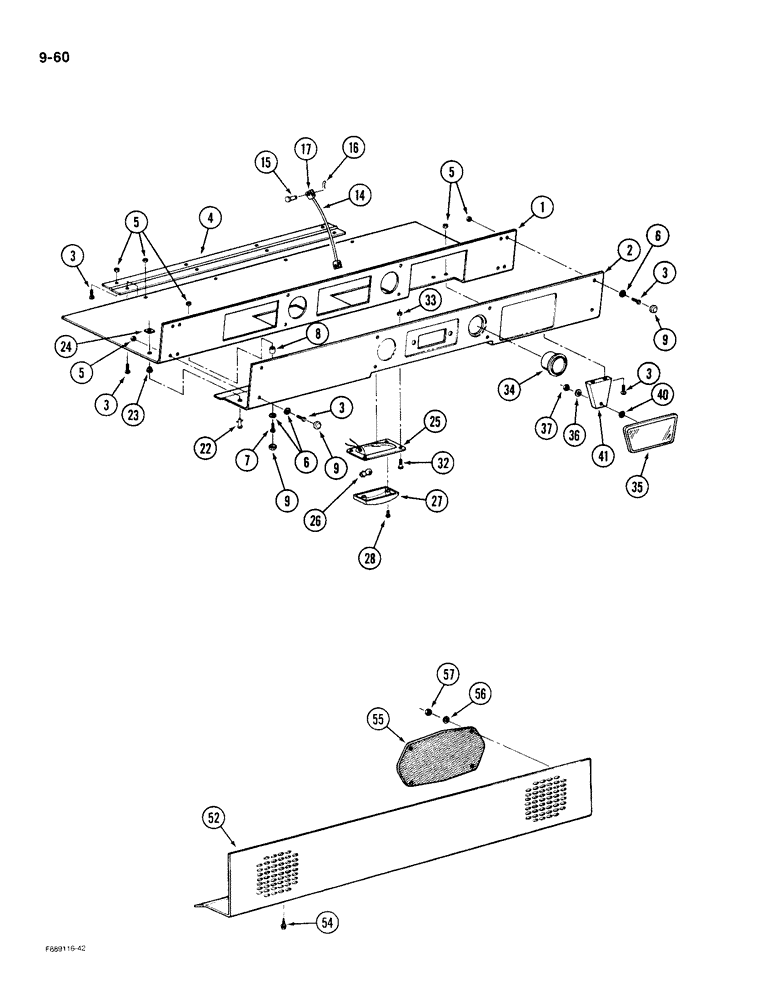

Запчасти Case IH 9190 (9-60) - OVERHEAD CONSOLE, FRONT (09) - CHASSIS/ATTACHMENTS

1

60-1838T2

CONSOLE

PANEL - overhead console, front

1шт.

2

60-3489T1

COVER - overhead console, plastic

1шт.

3

443874

BRACKET

- hex flange, No. 10 x 1/2 inch

19шт.

4

1-4291

HINGE - overhead console

1шт.

5

19-5563

LOCK NUT

- hex lock, No. 10 NC

23шт.

6

1-8674

CAP WASHER

- trim cap

13шт.

7

454774

SCREW

- machine, hex, No. 10 NC x 1-1/4 inch

4шт.

8

31-1354

FASTENER

SPACER - cover, 3/16 x 3/8 x 5/8 inch

4шт.

9

1-8673

CAP

- trim, black

13шт.

14

1-4656

CABLE

- retainer, overhead console

1шт.

15

19-143

CLEVIS PIN,5/16" x 0.94"

PIN - clevis, 5/16 x 7/8 inch

2шт.

16

19-5380

PIN

- hair, 5/64 x 1-3/16 inch

2шт.

17

1-4657

CLEVIS

- cable, retainer

2шт.

22

19-5568

STUD

- quarter turn

2шт.

23

19-5569

RETAINER

- stud, quarter turn

2шт.

24

19-5570

CONTAINER

RECEPTACLE - stud, quarter turn

2шт.

25

1-9063T91

LIGHT

ASSEMBLY - dome

2шт.

26

22-1146

BULB

- lamp, No. 1194

1шт.

27

1-9064

LENS

- dome light

1шт.

28

173-297

SCREW,Phil Rnd Hd, #8 - 32 x 1/4"

- machine, round head, No. 8 NC x 1/4 inch

2шт.

32

155857

BOLT (MACHINE),Cross Flat Hd, #6 - 32 x 0.75", Gr 2

SCREW - machine, flat head, No. 6 NC x 3/4 inch

8шт.

33

19-5564

LOCK NUT,#6-32, GB

NUT - hex lock, No. 6 NC

8шт.

34

20-2018T1

HOURMETER

GAUGE - hourmeter

1шт.

35

A177462

MIRROR

- rear view, Includes: Ref. 36 & 37

1шт.

36

19-467

LOCK WASHER,Ext Tooth, 1/4"

WASHER - lock, 1/4 inch

1шт.

37

19-5565

LOCK NUT,1/4"-28, GB

NUT, LOCK, 1/4"-28, GB

1шт.

40

193-95

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

41

64-86T3

SUPPORT

BRACKET - rear view mirror

1шт.

52

60-1836T1

PANEL

- overhead console, rear

1шт.

54

281-13712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - tapping, flanged head, 1/4 NC x 3/4 inch, overhead console, rear

4шт.

55

60-5748T1

SPEAKER

- radio, overhead console, rear

2шт.

56

19-699

WASHER,3/16"

- flat, 3/16 x 1/2 x 3/64 inch, overhead console, rear

8шт.

57

19-5563

LOCK NUT

- hex lock, No. 10 NC, overhead console, rear

8шт.
