(1-10) - PICTORIAL INDEX, LUBRICATION HYDRAULICS

Запчасти Case IH 9190 (1-10) - PICTORIAL INDEX, LUBRICATION HYDRAULICS (00) - PICTORIAL INDEX

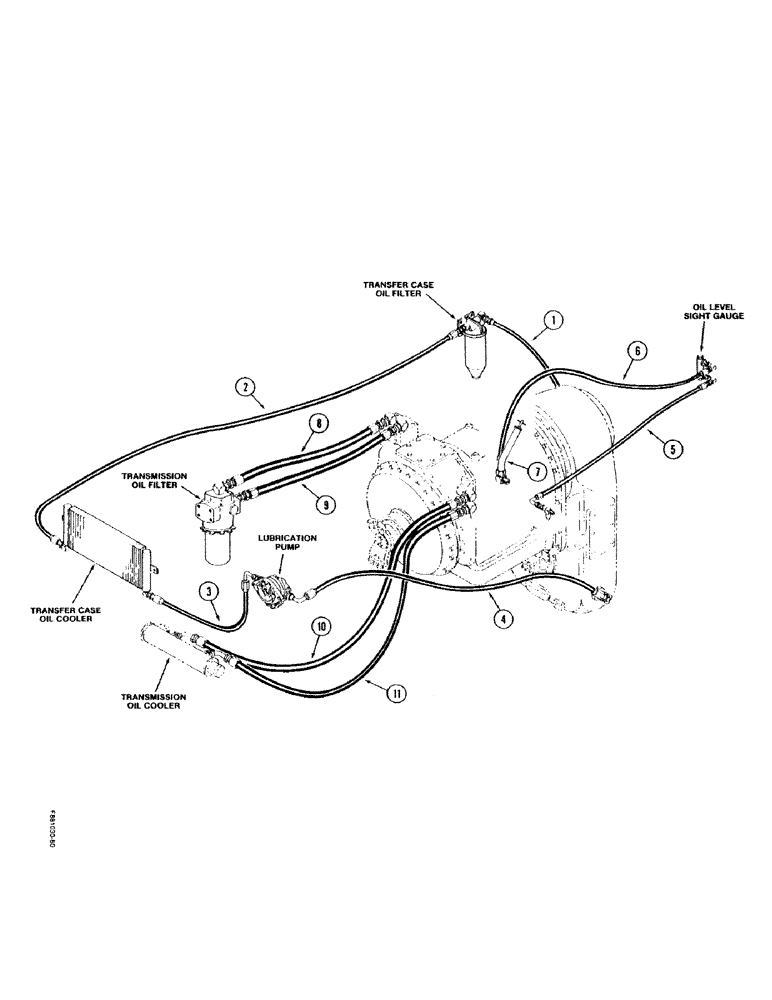

Схема запчастей Case IH 9190 - (1-10) - PICTORIAL INDEX, LUBRICATION HYDRAULICS (00) - PICTORIAL INDEX
2
9
8
7
1
6
5
4
3
11
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Transfer Case to Filter Hose, Page 6-15

1шт.

2

Filter to Oil Cooler Hose, Page 6-15

1шт.

3

Oil Cooler to Pump Hose, Page 6-15

1шт.

4

Pump to Transfer Case Hose, Page 6-15

1шт.

5

Transfer Case to Sight Gauge Hose, Page 6-15

1шт.

6

Sight Gauge to Fill Tube Hose, Page 6-15

1шт.

7

Fill Tube, Page 6-15

1шт.

8

Transmission to Filter Hose, Page 6-15

1шт.

9

Transmission to Filter Hose, Page 6-15

1шт.

10

Transmission to Oil Cooler Hose, Page 6-15

1шт.

11

Transmission to Oil Cooler Hose, Page 6-15

1шт.
