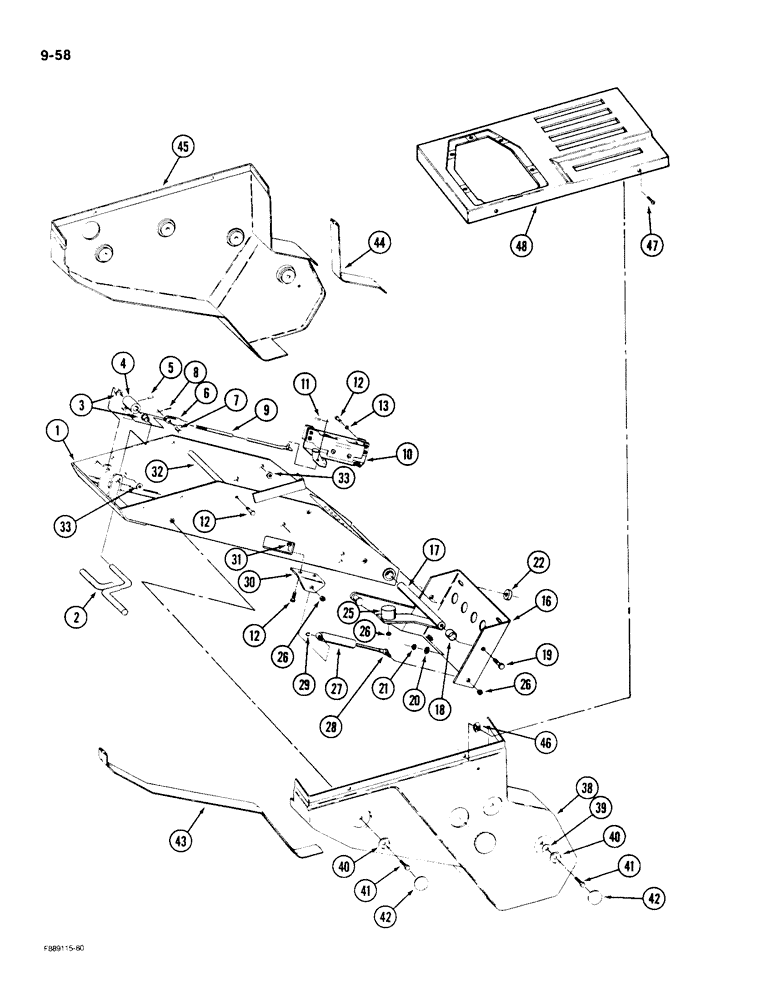

Запчасти Case IH 9190 (9-58) - CONTROL CONSOLE (09) - CHASSIS/ATTACHMENTS

1

1-9989

FRAME - console, tilt

1шт.

2

1-9990T1

LEVER

- release, tilt console

1шт.

3

24-206

BEARING CONE,0.5" ID x 0.75" OD x 0.3"

BEARING - flanged

2шт.

4

1-3910

HUB

LEVER - pivot, release actuator

1шт.

5

19-5361

LOCK PIN,1/8" x 1 1/4", Slotted

Pin, 1/8" x 1 1/4", Slotted

1шт.

6

19-141

CLEVIS

YOKE - adjustabie clevis

1шт.

7

19-144

CLEVIS PIN,1/4" x 0.77"

PIN - clevis, 1/4 x 3/4 inch

1шт.

8

19-170

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

9

1-9986

ROD

- actuator, latch

1шт.

10

1-3181

LATCH

- tilt console

1шт.

11

19-5380

PIN

- hair, 5/64 inch

1шт.

12

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

13

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

4шт.

16

1-3951

PIVOT

FRAME - pivot, tilt console

1шт.

17

1-3490

SHAFT

- pivot, tilt console

1шт.

18

24-209

BUSHING,0.75" ID x 0.875" OD x 0.375"

BEARING - pivot, split

2шт.

19

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

20

19-107

WASHER

- flat, 3/8 x 1 x 5/64 inch

4шт.

21

19-341

LOCK NUT,3/8" - 16, GB

NUT - hex, lock, 3/8 inch NC

4шт.

22

1-4124

SPACER

- mounting, pivot frame

4шт.

25

4-1019

STOP

- tilt console

1шт.

26

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

3шт.

27

1-3333

GAS STRUT

SPRING - gas

1шт.

28

1-4714

STUD

- ball, gas spring

2шт.

29

1-4713

CLIP

- ball stud, gas spring

2шт.

30

1-3492

BRACKET

- mounting, gas spring

1шт.

31

280129

NUT,1/4"-20

NUT - hex lock, 1/4 inch NC

2шт.

32

1-3753

SHAFT

ROD - brace

1шт.

33

19-336

NUT

- jam, 1/4 inch NF

7шт.

38

1-3745T1

COVER

- tilt console, left

1шт.

39

19-700

WASHER,5/16"

- flat, 5/16 x 7/8 x 5/64 inch

2шт.

40

1-3991

WASHER

- trim cap

7шт.

41

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

7шт.

42

1-3990

PLUG

CAP - trim

7шт.

43

1-3521

MOLDING

SEAL - cover, front (Order 1-3458T1, Serial Range: cut-length)

1шт.

44

1-3522

MOLDING

SEAL - cover, rear (Order 1-3458T1, Serial Range: cut-length)

1шт.

1-3458T1

SEAL - bulk, 10 ft

1шт.

45

1-3746T1

COVER

- tilt console, right

1шт.

46

19-5406

RETAINER

NUT - clip, J-type, No 10 NC

4шт.

47

340-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan head, No.10 NC x 3/4 inch

4шт.

48

1-9987T1

COVER

- tilt console, top

1шт.
