Запчасти Case IH 9190 (9-52) - SEAT, AIR SUSPENSION, CAB (CONTD) (09) - CHASSIS/ATTACHMENTS

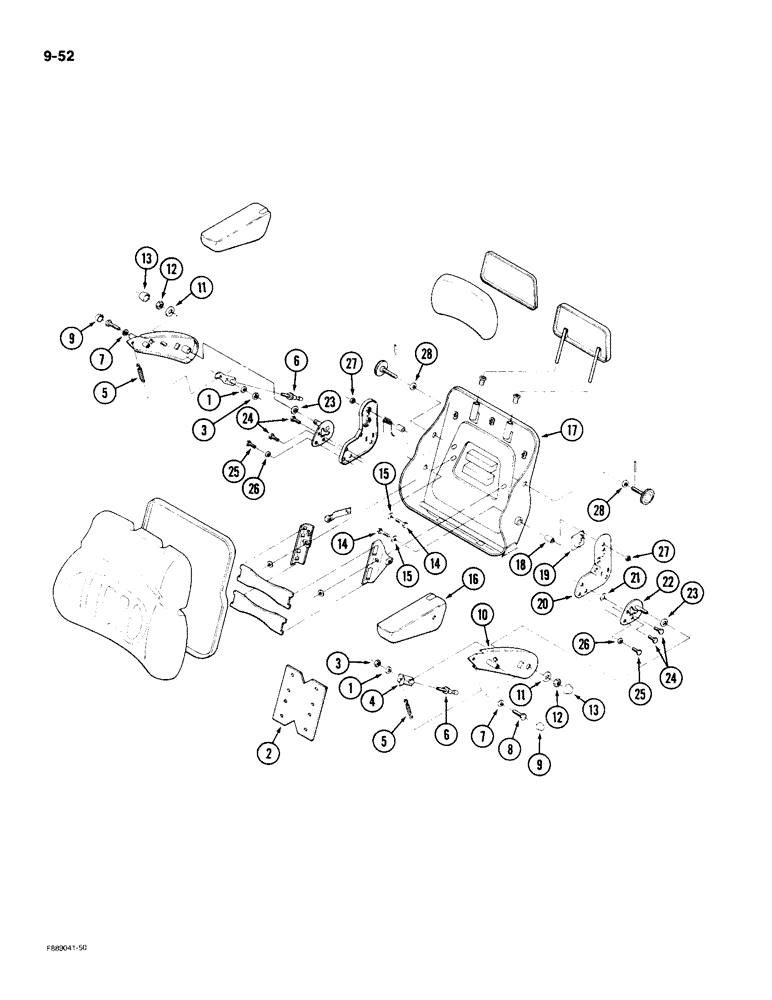

Схема запчастей Case IH 9190 - (9-52) - SEAT, AIR SUSPENSION, CAB (CONTD) (09) - CHASSIS/ATTACHMENTS
5
6
28
17
27
10
16
26
5
12
27
18
3
11
3
1
9
7
28
11
15
19
2
22
1
7
13
6
23
4
8
20
25
24
21
13
15
12
23
14
9
26
14
24
25

Артикул

Название

Примечание

Количество

60-5949T91

SEAT

ASSEMBLY - air suspension, Gray cloth upholstery

1шт.

60-4793T91

SEAT ASSY.

SEAT ASSEMBLY - air suspension, Tan cloth upholstery

1шт.

1

40-1153

WASHER

- flat, 13 mm

2шт.

2

60-1705T1

PLATE

- plastic

1шт.

3

60-1655T1

NUT

- hex, 12 mm

2шт.

4

60-3188T1

RETAINER

- armrest adjustment, left

1шт.

5

60-3189T1

SPRING

- armrest adjustment retainer

2шт.

6

60-1650T1

STEERING KNUCKLE

SPINDLE - adjustable, armrest

2шт.

7

40-1008

WASHER

- flat, 10 mm

2шт.

8

40-1073

CAPSCREW,Hex, M10 x 1.5 x 70mm, Gr 8.8

BOLT - hex, 10 x 70 mm

1шт.

9

60-1656T1

COVER

- protective

2шт.

10

60-3190T1

SUPPORT

- armrest, left

1шт.

11

40-1156

WASHER

- flat, 25 mm

2шт.

12

60-1653T1

LOCK NUT

- lock, 24 mm - 1.5

2шт.

13

60-3240T1

COVER

- protective

2шт.

14

40-1150

CAPSCREW,Hex, M8 x 1.25 x 30mm, Gr 8.8

BOLT - hex, 8 x 30 mm

2шт.

15

40-1007

WASHER

- flat, 8 mm

2шт.

16

60-3194T1

ARMREST

- left

1шт.

17

60-4860T1

BACKREST

PAN - backrest

1шт.

18

60-4852T1

SPACER

- armrest support mount

1шт.

19

60-4859T1

SPACER

- armrest support

1шт.

20

60-4858T1

MOUNTING PARTS

MOUNT - armrest support, left

1шт.

21

60-1679T1

WASHER

- flat, 10 mm

1шт.

22

60-3256T1

LARGE PLATE

PLATE - bearing, left

1шт.

23

60-1654T1

WASHER

- flat, 24 mm

2шт.

24

60-4847T1

SCREW

BOLT - hex, 8 x 35 mm

4шт.

25

19-214

BOLT,Hex, 7/16" - 20 x 1 3/4", Gr 5

- hex, 7/16 NF x 1-3/4 inch

2шт.

26

19-193

LOCK WASHER,Ext Tooth, 7/16"

WASHER - lock, 7/16 inch

2шт.

27

60-4845T1

NUT

- hex, self locking

2шт.

28

60-1667T1

WASHER

- flat, 11 mm

2шт.

Выбрано товаров: 30
