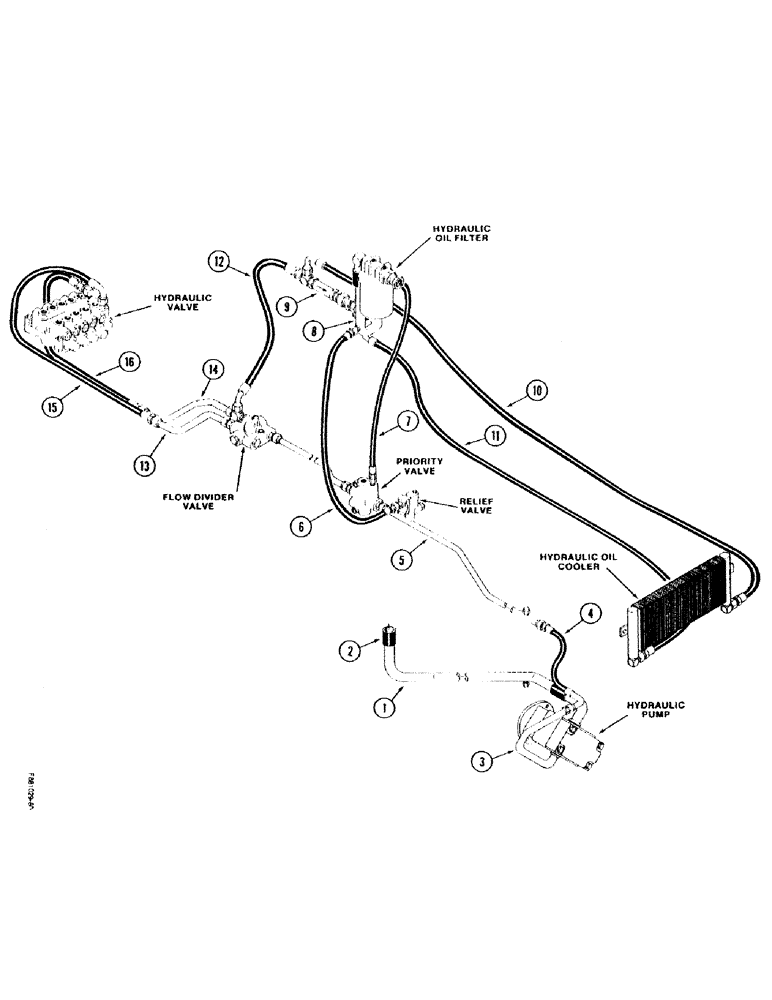

Запчасти Case IH 9190 (1-08) - PICTORIAL INDEX, MAIN HYDRAULICS (00) - PICTORIAL INDEX

1

Pump Suction Tube, Page 8-3

1шт.

2

Suction Tube Hose, Page 8-3

1шт.

3

Pump Pressure Tube to Hose, Page 8-3

1шт.

4

Pump to Priority Valve Hose, Page 8-3

1шт.

5

Priority Valve Tube, Page 8-3

1шт.

6

Relief Valve to Manifold Tube Hose, Page 8-5

1шт.

7

Priority Valve to Manifold Tube Hose, Page 8-5

1шт.

8

Manifold Tube, Page 8-5

1шт.

9

Check Valve, Page 8-5

1шт.

10

Check Valve to Oil Cooler Hose, Page 8-7

1шт.

11

Manifold Tube to Oil Cooler Hose, Page 8-7

1шт.

12

Flow Divider to Check Valve Hose, Page 8-5

1шт.

13

Flow Divider to Hydraulic Valve Tube, Page 8-3

1шт.

14

Flow Divider to Hydraulic Valve Tube, Page 8-3

1шт.

15

Flow Divider to Hydraulic Valve Hose, Page 8-3

1шт.

16

Flow Divider to Hydraulic Valve Hose, Page 8-3

1шт.
