Запчасти Case IH 9190 (9-34) - SEAT, MECHANICAL SUSPENSION (CONTD) (09) - CHASSIS/ATTACHMENTS

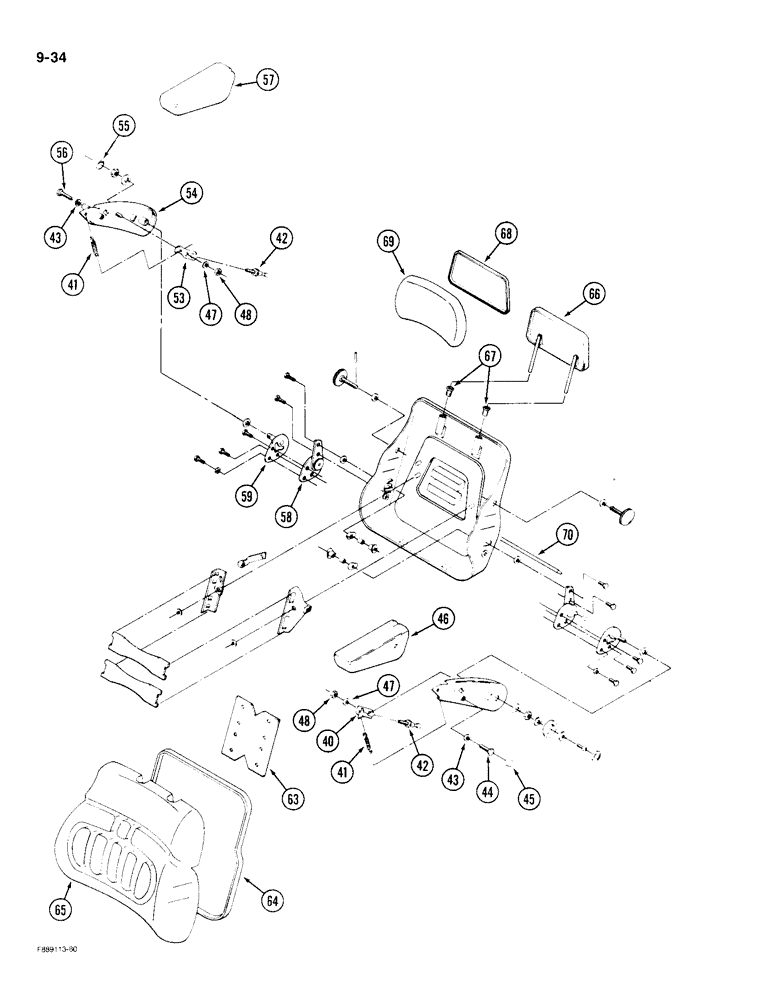

Схема запчастей Case IH 9190 - (9-34) - SEAT, MECHANICAL SUSPENSION (CONTD) (09) - CHASSIS/ATTACHMENTS
56
43
45
41
65
59
42
47
47
41
54
46
40
43
68
70
48
57
42
55
67
64
58
48
63
53
69
66
44

Артикул

Название

Примечание

Количество

40

60-3188T1

RETAINER

- armrest adjustment, left

1шт.

41

60-3189T1

SPRING

- armrest adjustment retainer

2шт.

42

60-1650T1

STEERING KNUCKLE

SPINDLE - adjustable, armrest

2шт.

43

40-1008

WASHER

- flat, 10 mm

2шт.

44

40-1073

CAPSCREW,Hex, M10 x 1.5 x 70mm, Gr 8.8

BOLT - hex, 10 x 70 mm

1шт.

45

60-1656T1

COVER

- protective

1шт.

46

60-3194T1

ARMREST

- left

1шт.

47

40-1153

WASHER

- flat, 13 mm

2шт.

48

60-1655T1

NUT

- hex, 12 mm

2шт.

53

60-3196T1

RETAINER

- armrest adjustment, right

1шт.

54

60-3195T1

SUPPORT

- armrest, right

1шт.

55

60-3240T1

COVER

- protective

1шт.

56

40-1069

CAPSCREW,Hex, M10 x 1.5 x 45mm, Gr 8.8

BOLT - hex, 10 x 45 mm

1шт.

57

60-3199T1

ARMREST

- right

1шт.

58

60-1676T1

BRACKET

MOUNT - armrest support, right

1шт.

59

60-3257T1

PLATE

- bearing, right

1шт.

63

60-1705T1

PLATE

- plastic

1шт.

64

60-1641T1

SUPPORT

EXTRUSION - plastic

1шт.

65

60-3239T1

CUSHION

- seat back

1шт.

66

60-1672T1

SUPPORT

- backrest extension

1шт.

67

60-1669T1

BUSHING

- support

2шт.

68

60-1642T1

SUPPORT

EXTRUSION - plastic, backrest extension

1шт.

69

60-3238T1

CUSHION

- backrest extension

1шт.

70

60-1681T1

ROD

- square

1шт.

Выбрано товаров: 24
