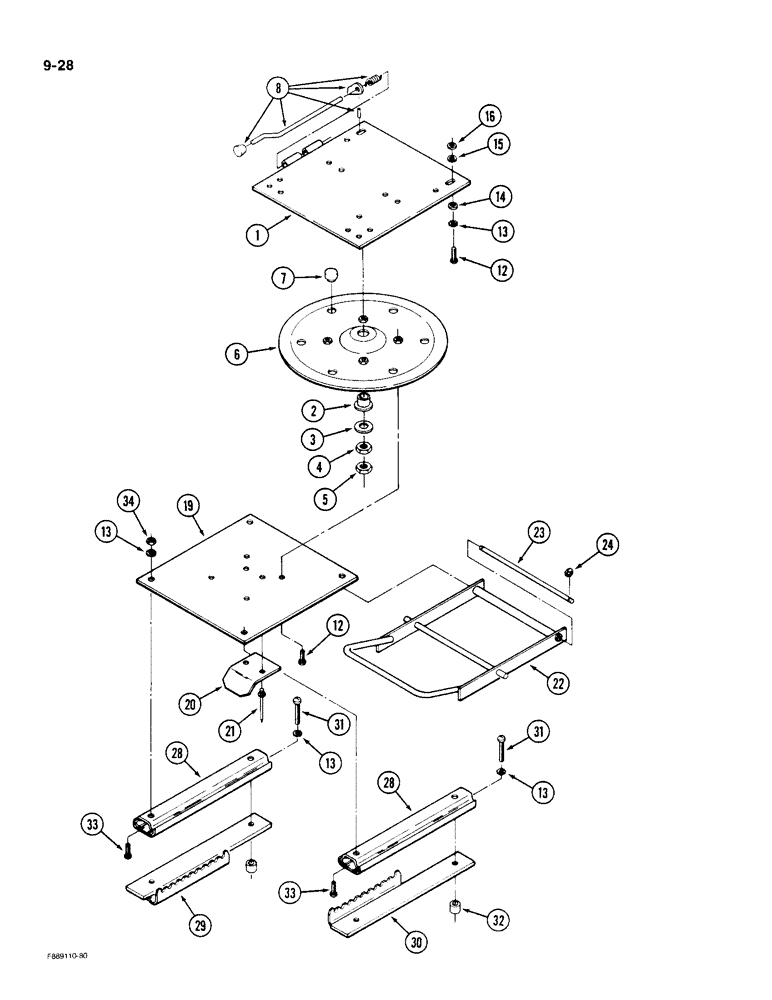

Запчасти Case IH 9190 (9-28) - SEAT, MECHANICAL SUSPENSION (CONTD) (09) - CHASSIS/ATTACHMENTS

60-1876T92

SEAT ASSY.

SEAT ASSEMBLY - mechanical suspension

1шт.

Includes: Ref. 1 - 31 on Figure 9-24, 1 - 25 on Figure 9-26, 1 - 34 on Figure 9-28, 1 - 59 on Figure 9-30 and 1 - 37 on Figure 9-32.

1шт.

60-3255T91

LINK

PLATE ASSEMBLY - swivel, Includes: Ref. 1 - 8

1шт.

1

60-3246T91

PLATE ASSY.

PLATE ASSEMBLY - seat pan mounting, Includes: Ref. 2

1шт.

2

60-1621T1

BUSHING

- flanged

1шт.

3

60-1624T1

THRUST BEARING

- thrust

1шт.

4

60-1623T1

NUT

- hex, 16 mm

1шт.

5

60-1622T1

LOCK NUT

- hex lock, 16 mm

1шт.

6

60-1625T1

LINK

PLATE - swivel

1шт.

7

60-1619T1

BUSHING

- swivel

6шт.

8

60-3247T1

LEVER ASSY.

LEVER ASSEMBLY - swivel adjustment

1шт.

12

40-1116

CAPSCREW,M8 x 1.25 x 16mm, Gr 8.8

BOLT - socket head, 8 x 16 mm

6шт.

13

40-1154

LOCK WASHER

- lock, 8 mm

12шт.

14

40-1007

WASHER

- flat, 8 mm

2шт.

15

60-1667T1

WASHER

- flat

2шт.

16

60-1679T1

WASHER

- flat, 10 mm

2шт.

19

60-3250T1

PLATE ASSY.

PLATE - fore and aft adjustment

1шт.

20

60-3368T1

SPRING

PLATE - spring

1шт.

21

1-2503

RIVET,Pop, .146" x .425"

- pop, 5/32 x 1/4 inch

2шт.

22

60-3249T1

HANDLED SHAFT

HANDLE - fore and aft adjustment

1шт.

23

60-3248T1

ROD

- handle pivot

1шт.

24

40-1182

CIRCLIP,M6

WASHER - retaining, 5 mm

2шт.

28

60-1577T1

RAIL ASSY.

RAIL - fore and aft seat slide

2шт.

29

60-3251T1

PLATE

- right locking, slide rail

1шт.

30

60-3253T1

PLATE

- left locking, slide rail

1шт.

31

40-1181

BOLT,Sl, M8 x 1.25 x 30mm

- machine, pan head, 8 x 30 mm

4шт.

32

60-3252T1

BUSHING

- slide rail mounting

4шт.

33

40-1164

BOLT,Sl Cheese Hd, M8 x 1.25 x 16mm

- machine, pan head, 8 x 16 mm

6шт.

34

40-1121

NUT

- hex, 8 mm

4шт.
