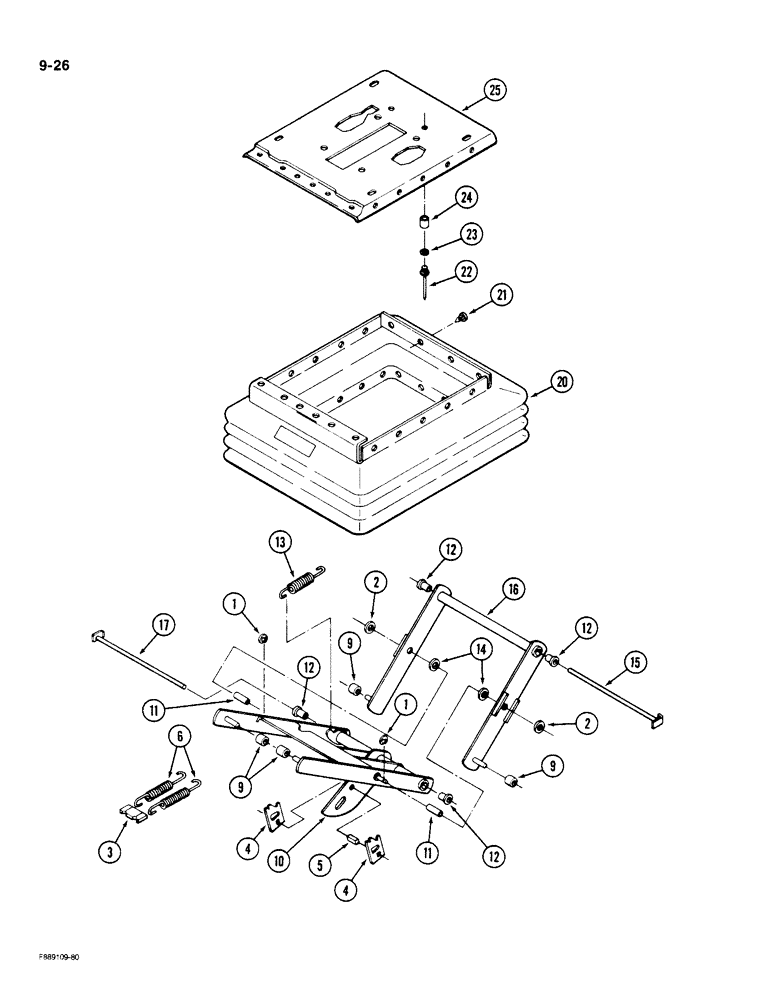

Запчасти Case IH 9190 (9-26) - SEAT, MECHANICAL SUSPENSION (CONTD) (09) - CHASSIS/ATTACHMENTS

60-1876T92

SEAT ASSY.

SEAT ASSEMBLY - mechanical suspension

1шт.

Includes: Ref. 1 - 31 on Figure 9-24, 1 - 25 on Figure 9-26, 1 - 34 on Figure 9-28, 1 - 59 on Figure 9-30 and 1 - 37 on Figure 9-32.

1шт.

1

40-1155

CIRCLIP,M10

RING - snap, 9 mm

2шт.

2

40-1153

WASHER

- flat, 12 x 20 x 2 mm

2шт.

3

60-1602T1

LARGE PLATE

PLATE - spring retainer

1шт.

4

60-1599T1

BRACKET

- release

2шт.

5

60-1606T1

PIN

- square

1шт.

6

60-1603T1

SPRING

- shock absorber

2шт.

9

60-1609T1

ROLLER

- suspension

4шт.

10

60-5740T91

ARM

SUSPENSION - scissor, front arm

1шт.

11

60-1607T1

BEARING

- sleeve

2шт.

12

60-1605T1

BEARING

- flanged

4шт.

13

60-1685T1

SPRING

- shock absorber

1шт.

14

60-1608T1

WASHER

- flat, plastic

2шт.

15

60-1600T1

LARGE PIN

ROD - pivot

1шт.

16

60-5740T91

ARM

SUSPENSION - scissor, rear arm

1шт.

17

60-1601T1

BOLT

ROD - pivot

1шт.

20

60-3243T1

BELLOWS

BOOT - suspension cover

1шт.

21

60-1613T1

FASTENER

- retaining snap

36шт.

22

60-1671T1

RIVET

- pop

2шт.

23

40-1161

WASHER

- flat, 4 mm

2шт.

24

60-3244T1

BUMPER

- rubber

2шт.

25

60-3245T1

PLATE

- upper suspension

1шт.
