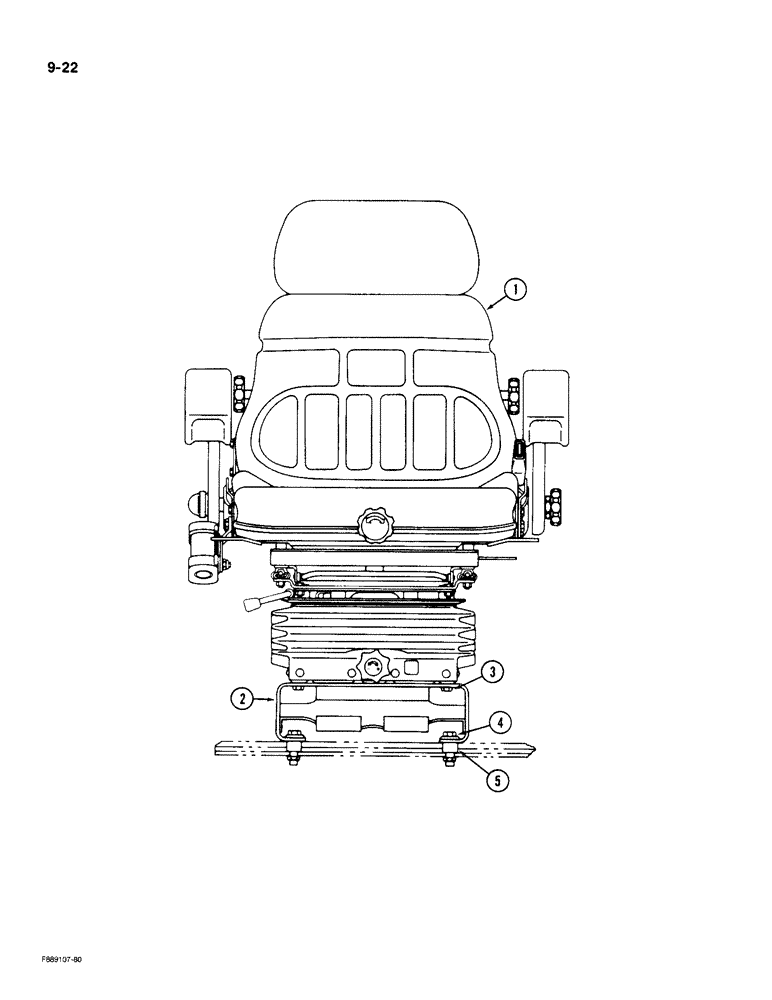

Запчасти Case IH 9190 (9-22) - SEAT MOUNTING, MECHANICAL SUSPENSION SEAT (09) - CHASSIS/ATTACHMENTS

1

60-1876T92

SEAT ASSY.

SEAT ASSEMBLY - mechanical

1шт.

2

60-2294T1

ANCHOR

MOUNT - seat

1шт.

3

40-1150

CAPSCREW,Hex, M8 x 1.25 x 30mm, Gr 8.8

BOLT - hex, 8 x 30 mm

4шт.

4

19-5885

SCREW,Hex Flg, 1/2" - 13 x 1 3/4", Gr 8

BOLT - flanged head lock, 1/2 NC x 1-3/4 inch, Grade 8

4шт.

5

60-2286T1

SPACER

- seat mounting

4шт.
