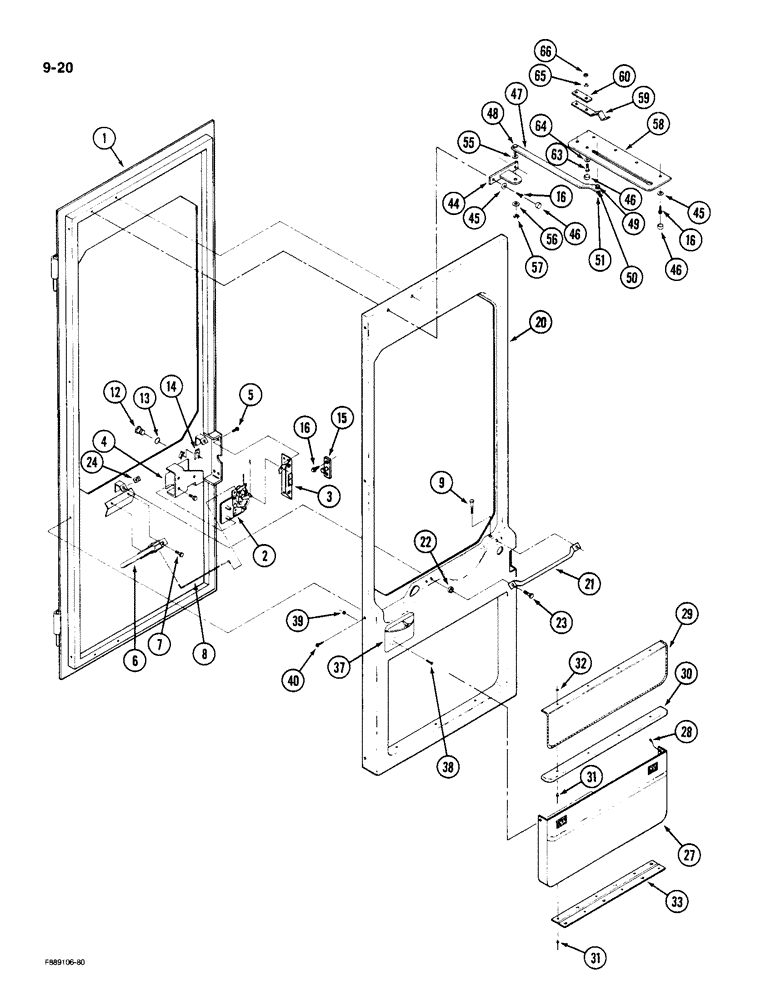

Запчасти Case IH 9190 (9-20) - CAB DOOR AND LATCH (CONTD) (09) - CHASSIS/ATTACHMENTS

37

64-95

ASH TRAY

- cigar (Left door only)

1шт.

38

19-1000

SCREW,Rnd Hd, #8 - 32 x 3/4"

- round head, No. 8 NC x 3/4 inch

2шт.

39

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- keps, No. 8 NC

2шт.

40

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - tapping, flanged head, No. 10 NC x 1/2 inch

8шт.

44

1-1653

BRACKET

- door stop

1шт.

45

1-3991

WASHER

- trim cap

6шт.

46

1-3990

PLUG

CAP - trim

8шт.

47

60-1165T91

CONNECTING LINK

LINK ASSEMBLY - door stop (Order components), Include: Ref. 48 - 51

1шт.

48

9421035

SCREW,3/8" - 24 x 1", Gr 5

BOLT - hex, 3/8 NF x 1 inch

1шт.

49

133170

SCREW,Sl Rnd Hd, 3/8" - 16 x 1.25", Gr 2

- round head, 3/8 NC x 1-1/4 inch

1шт.

50

19-5434

WASHER

- flat, plastic, 7/16 x 1 x 3/32 inch

2шт.

51

19-5573

NUT,3/8"-16, G8

- hex, 3/8 inch NC

2шт.

55

19-5370

WAVE WASHER

- wave, 7/16 x 5/8 x 3/64 inch

1шт.

56

19-5434

WASHER

- flat, plastic, 7/16 x 1 x 3/32 inch

1шт.

57

19-90

NUT

- hex lock, 3/8 inch NF

1шт.

58

1-1649

LARGE PLATE

PLATE - mounting, door stop

1шт.

59

1-1658

SPRING

- retaining, door latch

1шт.

60

1-1657

LARGE PLATE

PLATE - support, latch spring

1шт.

63

19-2

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

2шт.

64

1-4456

CAP WASHER

WASHER - trim cap

2шт.

65

19-115

LOCK WASHER,1/4"

1/4"

2шт.

66

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.
