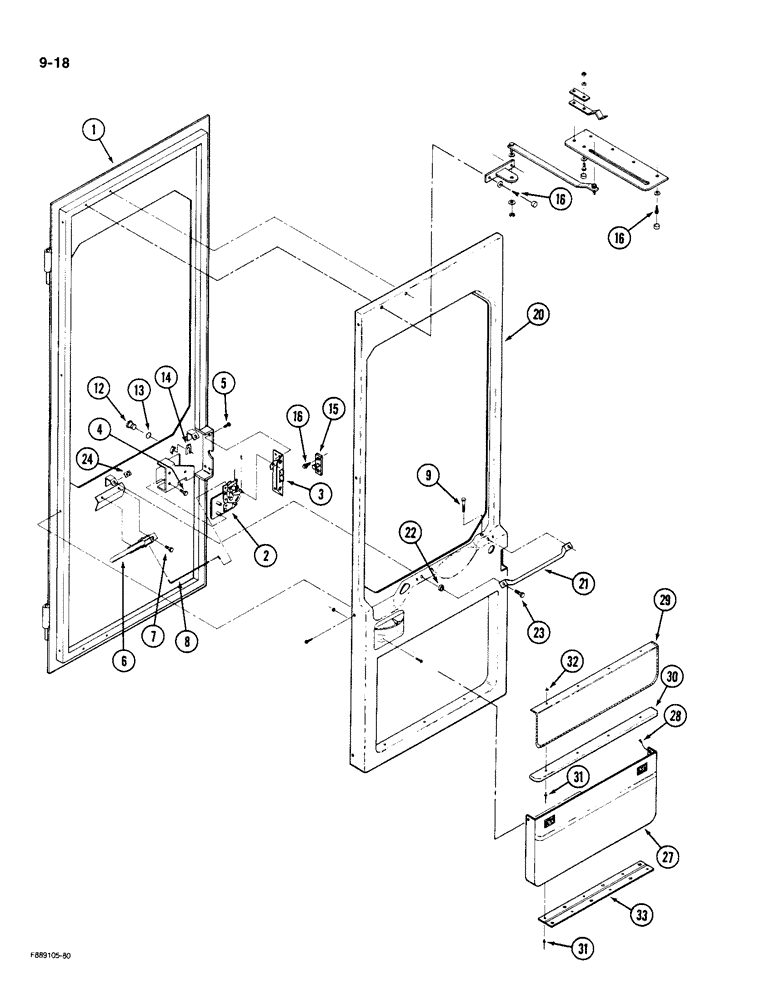

Запчасти Case IH 9190 (9-18) - CAB DOOR AND LATCH (09) - CHASSIS/ATTACHMENTS

1

1-3383T1

DOOR

- cab, right

1шт.

1

1-3382T1

DOOR

- cab, left

1шт.

2

1-3184

HANDLE

ASSEMBLY - door, outside, right

1шт.

2

1-3183

HANDLE

ASSEMBLY - door, outside, left

1шт.

3

1-3182

LATCH

ASSEMBLY - door, right

1шт.

3

1-3181

LATCH

ASSEMBLY - door, left

1шт.

4

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

3шт.

5

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

6

1-4025

HANDLE

ASSEMBLY - door, inside, right

1шт.

6

1-4024

HANDLE

ASSEMBLY - door, inside, left

1шт.

7

19-891

HEX SOC SCREW,1/4"-20 x 1/2"

BOLT - socket head, 1/4 NC x 1/2 inch, Grade 8

2шт.

8

1-4023

ROD

- release, inside, Serial Range: handle-latch

1шт.

9

1-3254

KNOB

- lock, inside door

1шт.

12

1-4464

LOCK

- door (Set of 2 with keys)

1шт.

13

1-4074

RUBBER WASHER

- rubber, door lock

1шт.

14

1-4788

CLIP

- retaining, door lock

1шт.

15

1-3180

HAMMER

STRICKER -door latch

1шт.

1-4167

SHIM

- stricker, door latch

1шт.

16

19-5707

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 1"

SCREW - tapping, flanged head, 5/16 NC x 1 inch

10шт.

20

1-3197T2

PANEL

- trim, door, plastic, right

1шт.

20

1-3219T2

PANEL

- trim, door, plastic, left

1шт.

21

1-9155

HANDLE

- pull, inside door

1шт.

22

19-6060

SPACER

- pull handle

2шт.

23

19-5557

CAPSCREW,5/16" - 18 x 1 1/4", Gr 5

BOLT - hex, 5/16 NC x 1-1/4 inch

2шт.

24

19-378

NUT

- clip, U, 5/16 inch NC

2шт.

27

1-3198

COVER

PANEL - door pouch

1шт.

28

1-3200

RETAINER

- door pouch

1шт.

29

1-3186

COVER

PANEL - door pouch flap

1шт.

30

1-3187

SUPPORT

- panel, door pouch flap

1шт.

31

19-157

RIVET

- pop, 1/8 x 3/8 inch

16шт.

32

19-708

WASHER,#6

- flat, No. 6 x 3/8 x 1/16 inch

16шт.

33

1-3185

HINGE

- panel, door pouch

1шт.
