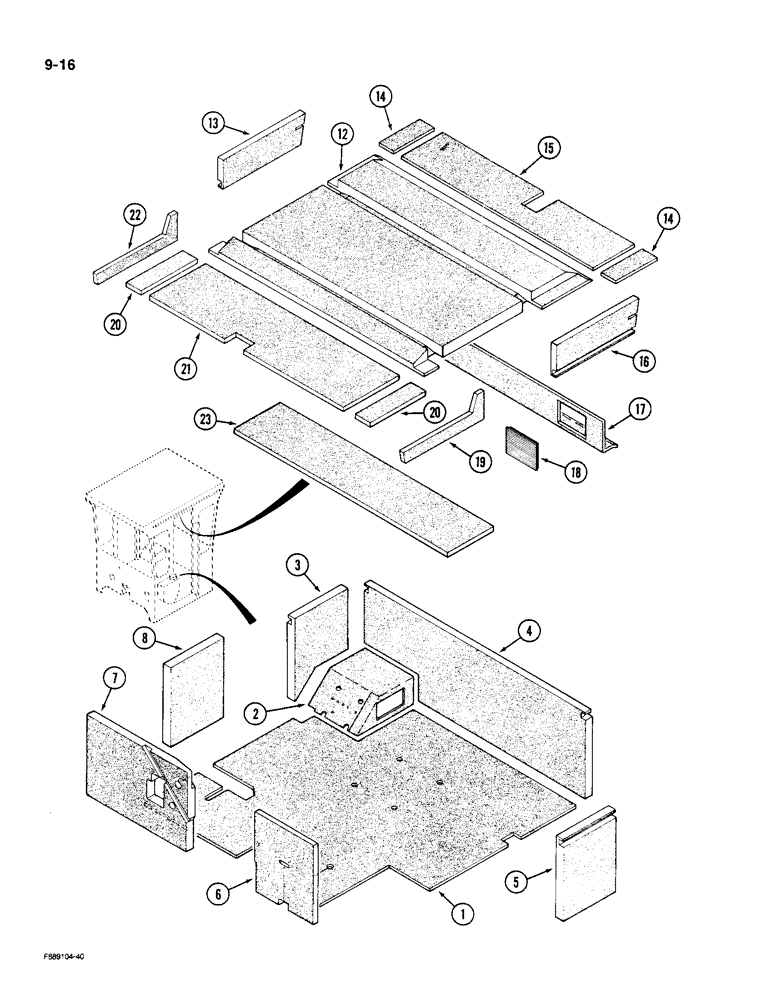

Запчасти Case IH 9190 (9-16) - CAB FLOORMATS AND ACOUSTICAL COVERS (09) - CHASSIS/ATTACHMENTS

1

60-3274T2

FLOOR MAT

FLOORMAT - cab

1шт.

2

47-4699T1

CARPET

COVER - console, control

1шт.

3

1-5424

PANEL

COVER - rear, lower right panel

1шт.

4

1-5423

PANEL

COVER - rear, lower back panel

1шт.

5

1-5425

PANEL

COVER - rear, lower left panel

1шт.

6

60-3276T1

PAD - firewall insulation, lower left panel

1шт.

7

60-3290T1

PAD - firewall insulation, lower right panel

1шт.

8

54-348

ISOLATOR

PAD - cab insulation, lower front right panel

1шт.

12

60-1853T1

INSULATOR

COVER - cab top, headliner

1шт.

13

1-8103

ROOF LINING

PAD - rear, upper left side panel

1шт.

14

60-1856T1

FOAM

PAD - rear, upper left and right panel

2шт.

15

1-8112

ISOLATOR

PAD - rear, upper center panel

1шт.

16

1-8092

ISOLATOR

PAD - rear, upper right side panel

1шт.

17

60-1855T1

ISOLATOR

COVER - rear, cab upper console

1шт.

18

60-1852T1

INSULATOR

COVER - speaker, radio

2шт.

19

1-8719

ISOLATOR

COVER - front, upper left side panel

1шт.

20

60-1857T1

FOAM

PAD - front, upper right and left console panel

2шт.

21

1-8108

INSULATOR

PAD - front, upper center console panel

1шт.

22

1-8718

INSULATOR

COVER - front, upper right side panel

1шт.

23

60-1854T1

ISOLATOR

COVER - front, console panel

1шт.
