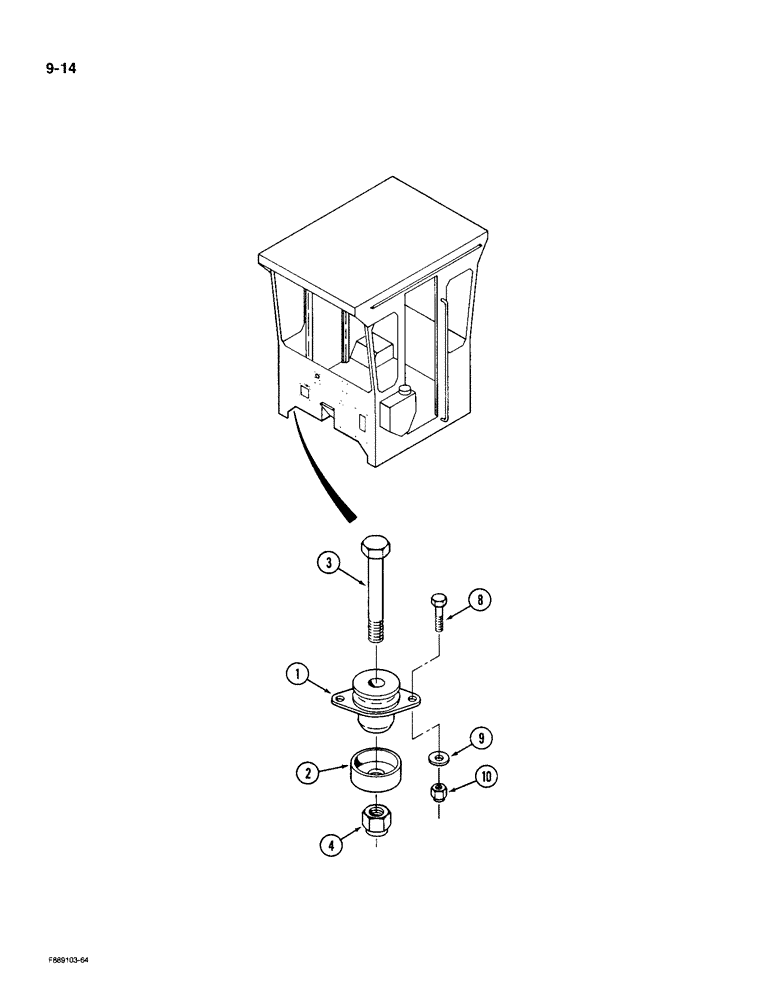

Запчасти Case IH 9190 (9-14) - CAB MOUNTS (09) - CHASSIS/ATTACHMENTS

1

31-1198

ANCHOR

MOUNT - isolator, cab

4шт.

2

47-4334

FITTING

SNUBBER - isolator mount

4шт.

3

25998R1

BOLT,1" - 8 x 5 1/2", Gr 8

- hex, 1 NC x 5-1/2 inch, Grade 8

4шт.

4

19-5405

LOCK NUT

- lock, 1 inch NC

4шт.

8

19-543

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, Grade 8

8шт.

9

495-21056

WASHER,1/2"

- flat, 1/2 x 1-3/8 x 7/64 inch

8шт.

10

19-653

LOCK NUT

- lock, 1/2 inch NC

8шт.
