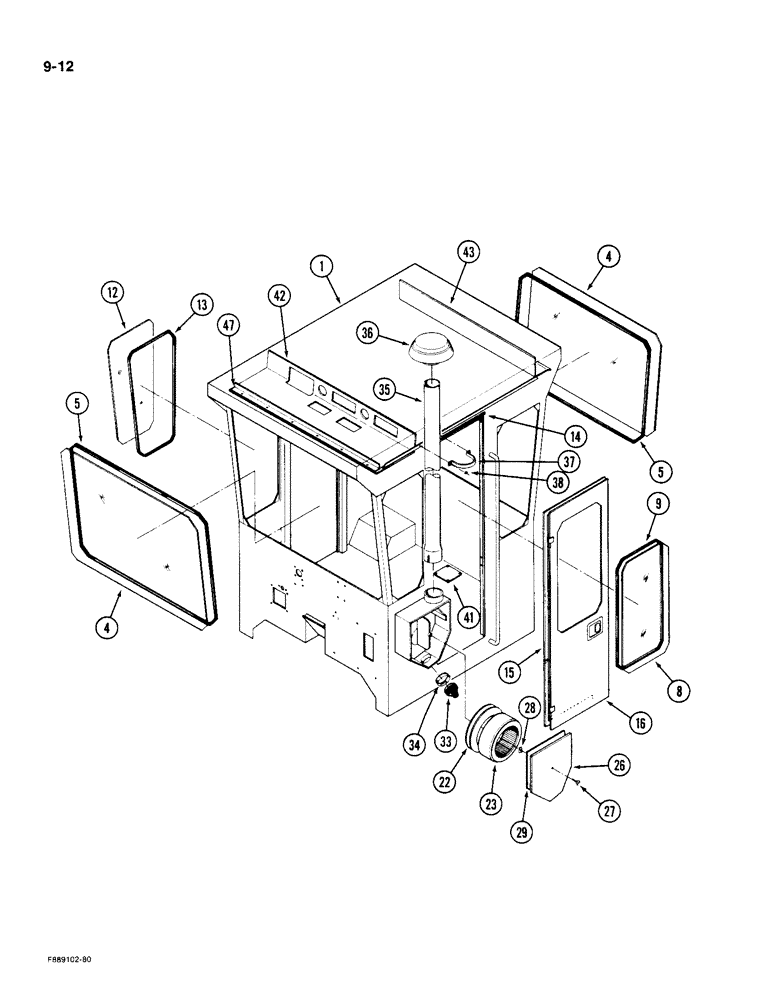

Запчасти Case IH 9190 (9-12) - CAB AND WINDOWS (09) - CHASSIS/ATTACHMENTS

1

60-3277T3

CAB - tractor, frame (Machinery item)

1шт.

4

47-2443

GLASS

WINDOW- front and back

2шт.

5

47-4087

MOLDING

SEAL - molding, front and rear window (Order 24-174, Serial Range: cut-length)

2шт.

24-174

SEAL - bulk

1шт.

8

54-261

GLASS

WINDOW - door, left and right

2шт.

9

4-548

MOLDING

SEAL - molding, left and right door window

2шт.

12

54-262

GLASS

WINDOW - side

4шт.

13

4-547

MOLDING

SEAL - molding, side windows

4шт.

14

1-3044

FOAM

SEAL - door, top

2шт.

15

4-465

SEALING STRIP

SEAL - weather stripping, door

2шт.

16

REF

INSTRUCTION

DOOR ASSEMBLY - left and right, See Figure 9-18

2шт.

22

54-302T1

SEAL

- filter, cab air inlet

1шт.

23

54-304T1

ELEMENT

FILTER - air inlet, cab

1шт.

26

54-307

RETAINER

COVER ASSEMBLY - air inlet filter, Includes: Ref. 27 - 29

1шт.

27

19-937

BOLT

- wing, 5/16 NC x 1-1/2 inch

1шт.

28

61-104

RETAINER

- wing bolt

1шт.

29

54-412

SEAL

- cover

1шт.

33

66-177

VALVE

- dust evaculator, rubber

1шт.

34

32-60

CLAMP,#48, 2.56/3.50 Type F Worm

- hose, 2-9/16 to 3-1/2 inch

1шт.

35

54-306

MUFFLER

TUBE - air inlet, cab

1шт.

36

54-305

CAP

HOOD - air inlet tube

1шт.

37

54-308

BRACKET

CLAMP - tube, air inlet

1шт.

38

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

41

47-2715

COVER - access, cab floor

1шт.

42

REF

INSTRUCTION

CONSOLE - overhead, front, See Figure 9-60

1шт.

43

REF

INSTRUCTION

CONSOLE - overhead, rear, See Figure 9-60

1шт.

47

1-6839

BRACE

- overhead, cab

1шт.
