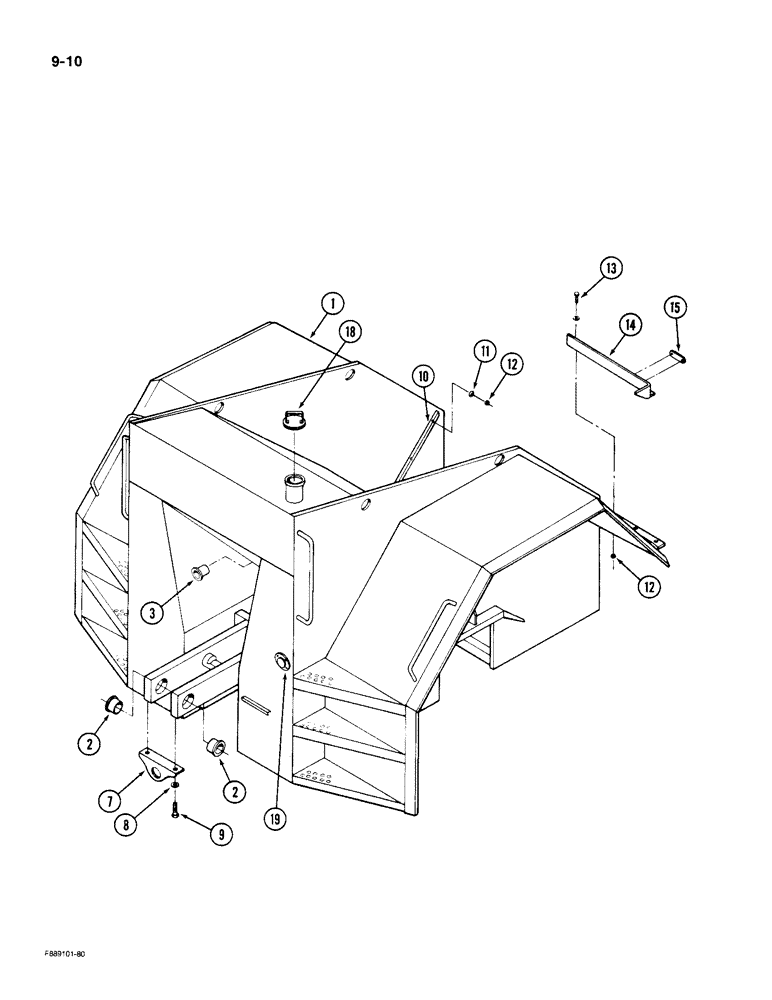

Запчасти Case IH 9190 (9-10) - REAR FRAME (09) - CHASSIS/ATTACHMENTS

1

70-1066T93

FRAME ASSEMBLY - rear, Includes: Ref. 2 & 3

1шт.

2

1-3884

BUSHING

- flanged, 2-1/4 x 2-3/4 x 1-7/16 inch

2шт.

3

47-3015

BUSHING

- flanged, 1-3/4 x 2-1/4 x 1-7/16 inch

2шт.

7

47-4231

BEARING CARRIER

- pillow block

1шт.

8

25711R1

WASHER

- flat, 21/32 x 1-5/16 x 5/32 inch

2шт.

9

19-57

BOLT,5/8" - 11 x 1 3/4", Gr 5

- hex, 5/8 NC x 1-1/4 inch

2шт.

10

51-366

PROTECTOR

GUARD - wire

3шт.

11

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

10шт.

12

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

10шт.

13

19-2

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

6шт.

14

47-3626T1

MOUNT - reflector, right

1шт.

14

47-3627T1

MOUNT - reflector, left

1шт.

15

1-2655T1

REFLECTOR

- red, adhesive backed

4шт.

18

1-4853

CAP

- fuel

1шт.

19

REF

INSTRUCTION

SENSOR - fuel, See Figure 4-19

1шт.
