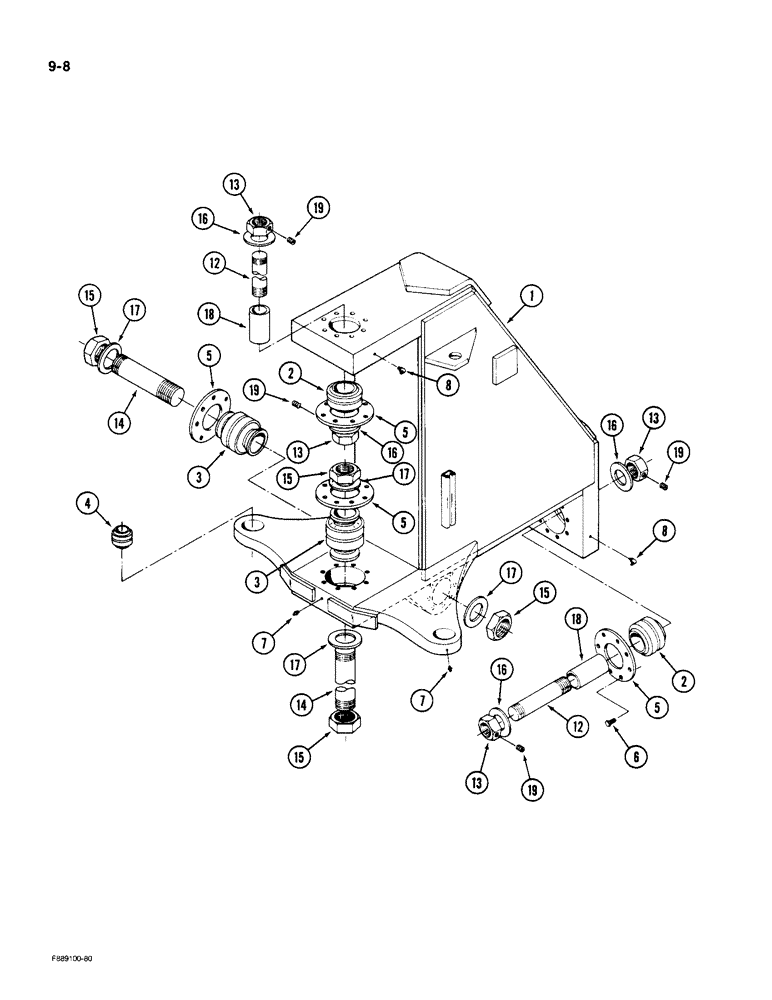

Запчасти Case IH 9190 (9-08) - CENTER HINGE (09) - CHASSIS/ATTACHMENTS

47-3592

NO LONGER SERVICED

HINGE ASSEMBLY - center, articulation and oscillation, Includes: Ref. 1 - 8

1шт.

1

47-3026

LINKAGE YOKE

HINGE - center, articulation and oscillation

1шт.

2

47-3486

BEARING

- uniball, 2-3/4 x 4-3/8 x 2-3/8 inch

2шт.

3

1-3965

SPHERICAL BEARING,57.2mm ID x 111.13mm OD x 127mm W

BEARING - uniball, 2-1/4 x 4-3/8 x 5 inch

2шт.

4

15-44

SPHERICAL BEARING

BEARING - uniball, 1-1/2 x 2-7/16 x 1-5/16 inch

2шт.

5

47-3017

OIL SEAL

RETAINER - bearing.

4шт.

6

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

32шт.

7

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

4шт.

8

31-93

FITTING

- grease, 90 degree, 1/8 inch PT

2шт.

12

52-42

PIN,44.45mm OD x 292.1mm L

- king, 1-3/4 NF x 11 inch

2шт.

13

2-17

NUT

- hex, 1-3/4 inch NF

4шт.

14

1-3967

PIN

- king, 2-1/4 - 12 UN x 11-3/4 inch

2шт.

15

1-3968

NUT

- hex, 2-1/4 - 12 inch UN

4шт.

16

1-4088

WASHER,45mm ID x 69.9mm OD x 6.35mm Thk

- flat, hardened, 1-3/4 x 2-3/4 x 1/4 inch

4шт.

17

1-3966

SPACER

WASHER - flat, hardened, 2-1/4 x 3-1/2 x 1/4 inch

4шт.

18

47-3016

SPACER

- bearing

2шт.

19

125735

SET SCREW,Hex Skt, 1/4"-20 x 3/8"

4шт.
