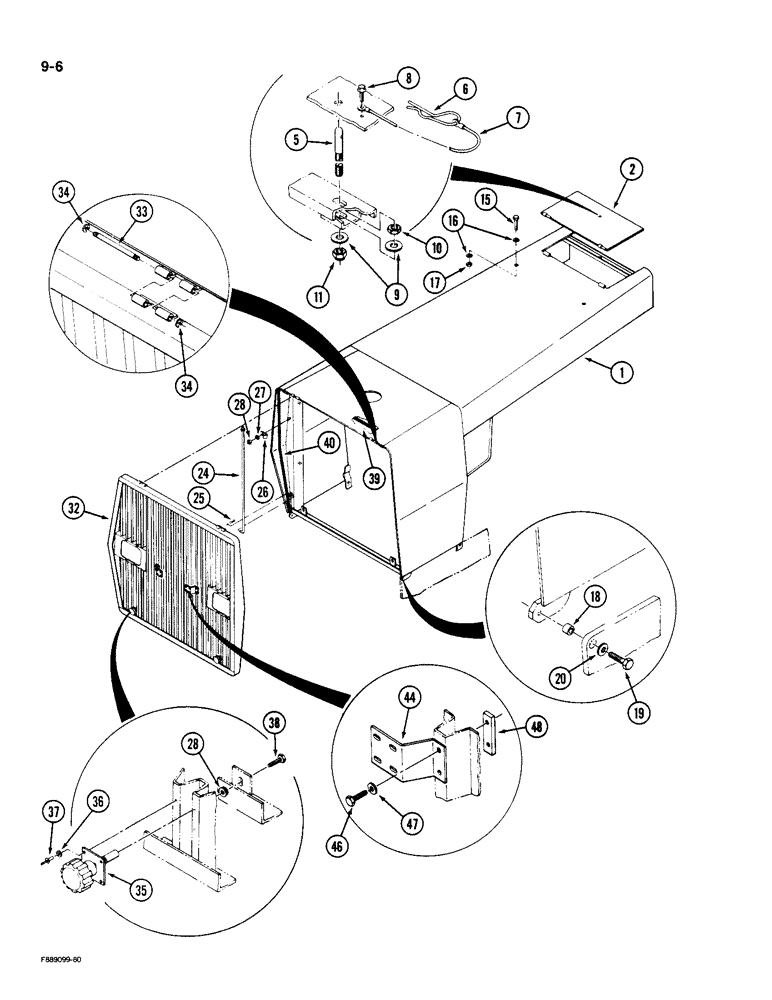

Запчасти Case IH 9190 (9-06) - HOOD AND GRILLE (09) - CHASSIS/ATTACHMENTS

1

70-2891T1

HOOD

- engine cover

1шт.

2

47-4433

COVER - access, hood

1шт.

1-545

LATCH

ASSEMBLY - hood, Includes: Ref. 5 - 11

1шт.

5

2-4121T1

PIN

- hood latch

1шт.

6

19-5768

PIN

- clip, hood latch

1шт.

7

2-4120T1

CABLE

- pin retaining

1шт.

8

281-1438

SELF-TAP SCREW,Hex Wash Hd, #6 x 1/2"

SCREW - tapping, flanged head, No. 6 NC x 1/2 inch

1шт.

9

19-463

WASHER,1/2", SAE

- flat, 1/2 x 1-1/4 x 3/32 inch

2шт.

10

19-93

NUT,1/2"-20, G5

- hex, 1/2 inch NF

1шт.

11

231-2448

LOCK NUT,1/2"-20, GB

NUT - hex lock, 1/2 inch NF

1шт.

15

19-42

BOLT,1/2" - 13 x 2 1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

2шт.

16

19-463

WASHER,1/2", SAE

- flat, 1/2 x 1-1/4 x 3/32 inch

2шт.

17

19-81

NUT,1/2"-13, G5

- hex, 1/2 inch NC

2шт.

18

70-2905T1

BUSHING

SPACER - pivot, hood

2шт.

19

19-430

BOLT,7/16" - 20 x 1 1/4", Gr 8

- hex, 7/16 NF x 1-1/4 inch

2шт.

20

19-643

WASHER,7/16", SAE

- flat, 7/16 x 1-1/8 x 1/16 inch

2шт.

24

47-4500

LATCH

ROD - open grille retaining

1шт.

25

19-124

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

26

1-1291

CLIP

- rod retaining

1шт.

27

19-700

WASHER,5/16"

- flat, 5/16 x 7/8 x 5/64 inch

1шт.

28

19-77

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

32

70-2927T1

GRILLE

- front screen

1шт.

33

70-1996T2

PIN

- hinge, grille

2шт.

34

70-2600T1

RING, SNAP

RING - retaining, hinge pin

4шт.

35

70-2914T1

LATCH

ASSEMBLY - grille

2шт.

36

446143

WASHER

- flat, No.8

8шт.

37

19-157

RIVET

- pop, 1/8 x 3/8 inch

8шт.

38

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

39

70-2921T1

FOAM - seal, Serial Range: hood-radiator

1шт.

40

70-2920T1

FOAM - seal, Serial Range: hood-grille

1шт.

44

70-2977T1

SUPPORT

BRACKET - right, medallion (Tiger only)

1шт.

44

70-2978T1

SUPPORT

BRACKET - left, medallion (Tiger only)

1шт.

46

19-611

BOLT,1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch (Tiger only)

4шт.

47

495-21031

WASHER,1/4"

- flat, 1/4 x 47/64 x 1/16 inch (Tiger only)

4шт.

48

70-2230T1

LARGE PLATE

PLATE - medallion bracket (Tiger only)

2шт.
