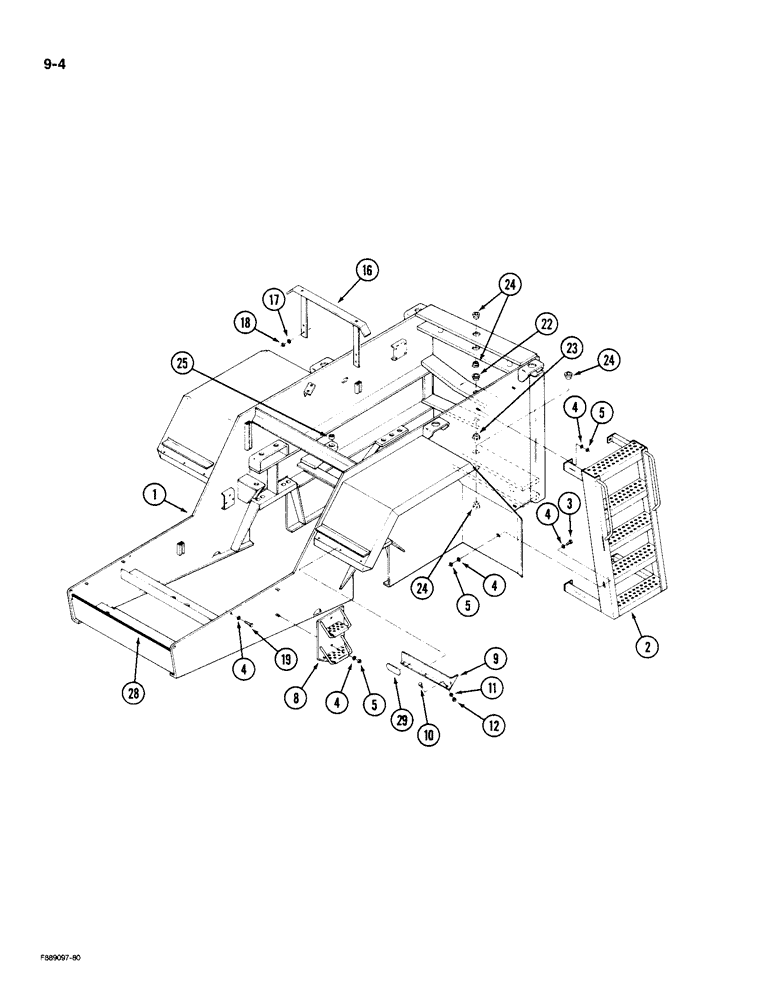

Запчасти Case IH 9190 (9-04) - FRONT FRAME (09) - CHASSIS/ATTACHMENTS

1

70-2656T2

FRAME - front (Machinery item)

1шт.

2

47-3623

STEP

- cab access

2шт.

3

19-44

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

4

495-21056

WASHER,1/2"

- flat, 1/2 x 1-3/8 x 7/64 inch

16шт.

5

19-81

NUT,1/2"-13, G5

- hex, 1/2 inch NC

12шт.

8

51-449

STEP

- front access

1шт.

9

47-3627T1

MOUNT - light, left

1шт.

9

47-3626T1

MOUNT - light, right

1шт.

10

19-2

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

6шт.

11

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

6шт.

12

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

6шт.

16

47-4430

SUPPORT - hood, rear

1шт.

17

19-107

WASHER

- flat, 3/8 x 1 x 5/64 inch

4шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

19

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

22

1-3884

BUSHING

- flanged, 2-1/4 x 2-3/4 x 1-7/16 inch

1шт.

23

70-1029T1

BUSHING

- flanged, 2-1/4 x 2-3/4 x 1-11/16 inch

1шт.

24

47-3015

BUSHING

- flanged, 1-3/4 x 2-1/2 x 1-7/16 inch

4шт.

25

15-44

SPHERICAL BEARING

BEARING - steering cylinder, 1-1/2 x 2-7/16 x 1-5/16 inch

2шт.

28

70-2923T1

FOAM - hood sealing

1шт.

29

23-832

REFLECTOR - amber, adhesive backed

4шт.
