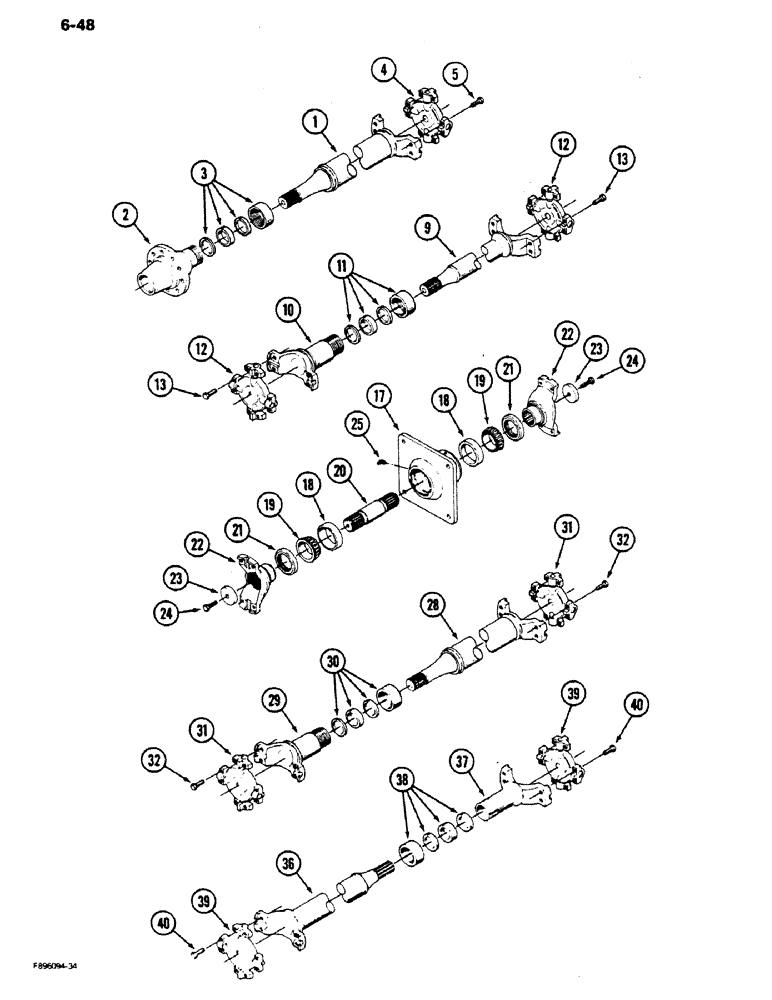

Запчасти Case IH 9180 (6-48) - DRIVE SHAFT ASSEMBLIES (06) - POWER TRAIN

90-6663T92

DRIVE SHAFT

SHAFT ASSEMBLY - drive, input, engine to transmission, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

SHAFT - slip yoke

1шт.

2

NSS

NOT SOLD SEPARAT

SHAFT - flanged

1шт.

3

2-3842T1

SEAL RETAINER

SEAL ASSEMBLY - shaft retainer

1шт.

4

1-9994T3

SPIDER ASSY.

SPIDER ASSEMBLY - shaft, 8C, Includes: Ref. 5

1шт.

5

25279R1

BOLT,Hex, 1/2" - 20 x 2", Gr 8

- hex, 1/2 NF x 2 inch, Grade 8

4шт.

90-1902T93

DRIVE SHAFT

SHAFT ASSEMBLY - drive, intermediate shaft, transmission to to hanger bearing, Includes: Ref. 9 - 13

1шт.

9

NSS

NOT SOLD SEPARAT

SHAFT - slip yoke

1шт.

10

NSS

NOT SOLD SEPARAT

SHAFT - tube

1шт.

11

2-3842T1

SEAL RETAINER

SEAL ASSEMBLY - shaft retainer

1шт.

12

1-9994T3

SPIDER ASSY.

SPIDER ASSEMBLY - shaft, 8C, Includes: Ref. 13

2шт.

13

25279R1

BOLT,Hex, 1/2" - 20 x 2", Gr 8

- hex, 1/2 NF x 2 inch, Grade 8

4шт.

90-1863T91

BEARING ASSY

BEARING ASSEMBLY - hanger, Includes: Ref. 17 - 25

1шт.

17

90-1929T1

HOUSING

- hanger bearing

1шт.

18

13363D

TAPERED BEARING

CUP - bearing, gear

2шт.

19

ST2007A

TAPERED BEARING,2.625" ID x 4.4375" OD x 1.1875"

CONE - bearing

2шт.

20

90-1930T1

SHAFT

- hanger bearing

1шт.

21

90-1934T2

SEAL

- shaft

2шт.

22

90-1489T1

YOKE

- shaft

2шт.

23

19-5733

WASHER

- flat, hardened

2шт.

24

19-822

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8, Full Thd

- hex, 5/8 NC x 1-1/2 inch, Grade 8

2шт.

25

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree short, 1/8 inch PT

1шт.

90-1903T93

DRIVE SHAFT

SHAFT ASSEMBLY - drive, rear, hanger bearing to rear axle, Includes: Ref. 28 - 32

1шт.

28

NSS

NOT SOLD SEPARAT

SHAFT - slip yoke

1шт.

29

NSS

NOT SOLD SEPARAT

SHAFT - tube

1шт.

30

2-3842T1

SEAL RETAINER

SEAL ASSEMBLY - shaft retainer

1шт.

31

1-9994T3

SPIDER ASSY.

SPIDER ASSEMBLY - shaft, 8C, Includes: Ref. 32

2шт.

Lube Fitting - P/N 87414, Qty 3

1шт.

32

25279R1

BOLT,Hex, 1/2" - 20 x 2", Gr 8

- hex, 1/2 NF x 2 inch, Grade 8

4шт.

90-6664T92

DRIVE SHAFT

SHAFT ASSEMBLY - drive, front transmission to front axle, Includes: Ref. 36 - 40

1шт.

36

NSS

NOT SOLD SEPARAT

SHAFT - slip yoke

1шт.

37

NSS

NOT SOLD SEPARAT

SHAFT - yoke

1шт.

38

2-3842T1

SEAL RETAINER

SEAL ASSEMBLY - shaft retainer

1шт.

39

1-9994T3

SPIDER ASSY.

SPIDER ASSEMBLY - shaft, 8C, Includes: Ref. 40

2шт.

40

25279R1

BOLT,Hex, 1/2" - 20 x 2", Gr 8

- hex, 1/2 NF x 2 inch, Grade 8

4шт.
