Запчасти Case IH 9180 (6-30) - TRANSMISSION, RANGE SELECTOR VALVE, WITH MOLDED PLASTIC ENCASED SOLENOID COILS (06) - POWER TRAIN

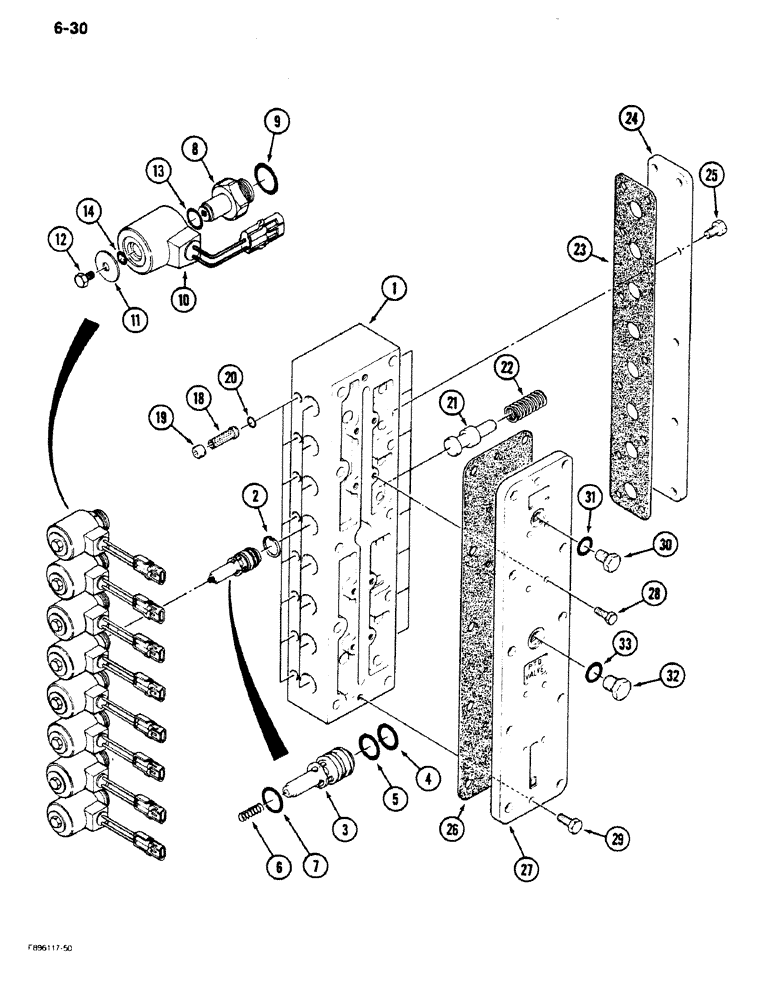

Схема запчастей Case IH 9180 - (6-30) - TRANSMISSION, RANGE SELECTOR VALVE, WITH MOLDED PLASTIC ENCASED SOLENOID COILS (06) - POWER TRAIN
3
9
31
22
8
24
25
28
30
7
23
4
33
26
12
14
32
1
13
5
27
29
11
19
2
10
18
21
6
20

Артикул

Название

Примечание

Количество

90-7016T91

GEARBOX ASSY

TRANSMISSION ASSEMBLY (Continued), Includes: Ref. 1 - 33 and valve assembly

1шт.

313686A1R

REMAN-TRANSMISSION

Remanufactured Transmission 4WD Powershift;

1шт.

313686A1C

CORE-TRANSMISSION

Return Part Number

1шт.

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - range selector (Order 33-1525T91), Includes: Ref. 1 - 33

1шт.

1

S9050S00F

VALVE BODY

SPARE PART BODY - valve

1шт.

2

S9090S00F

RING, SNAP

RING SNAP RING - snap

1шт.

NSS

NOT SOLD SEPARAT

SOLENOID ASSEMBLY - valve (Order 33-1535T1), Includes: Ref. 3 - 14

8шт.

3

S9180S01F

VALVE, CHECK

VALVE ASSEMBLY - pilot

8шт.

4

S9310S00F

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

O-RING - pilot valve

8шт.

5

S9320S00F

O-RING

O-RING - pilot valve

8шт.

6

S9330S01F

SPRING

SPRING - pilot valve

8шт.

7

S9380S00F

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

O-RING - pilot valve

8шт.

8

S9340S00F

PLUG

CORE ASSEMBLY - solenoid

8шт.

9

S9350S00F

O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro

O-RING - solenoid core

8шт.

10

NSS

NOT SOLD SEPARAT

COIL - solenoid (Order 33-1535T1)

8шт.

11

S9360S00F

WASHER

WASHER - coil retaining

8шт.

12

S9370S00F

BOLT

BOLT - coil retaining

8шт.

13

S9390S00F

O-RING

O-RING - solenoid core

8шт.

14

S9400S00F

O-RING

O-RING - solenoid core

8шт.

18

S9060S00F

SCREEN

SCREEN - filter

8шт.

19

S9080S00F

PLUG

PLUG - screen retaining

8шт.

20

S9170S00F

O-RING

O-RING - filter

8шт.

21

S9040S00F

VALVE

VALVE - selector

8шт.

22

S9010S00F

SPRING

SPRING - selector valve

8шт.

23

S9030S00F

GASKET

GASKET - side plate

1шт.

24

S9020S00F

PLATE

SPARE PART PLATE - valve side

1шт.

25

SM8120820

BOLT

BOLT - hex, 8 mm - 1.25 x 20 mm

11шт.

26

S9110S00F

GASKET

GASKET - valve cover

1шт.

27

S9100S00F

COVER

SPARE PART COVER - valve

1шт.

28

SM8120620

CAPSCREW

SPARE PART BOLT - hex, 6 mm - 1.00 x 20 mm

8шт.

29

SM8120825

BOLT

BOLT - hex, 8 mm - 1.25 x 25 mm

2шт.

30

S1030S00F

PLUG

PLUG - oil ports, Includes: Ref. 31

1шт.

31

S1040S00F

O-RING

O-RING - plug

1шт.

32

S1390S00F

PLUG

PLUG - oil port, Includes: Ref. 33

1шт.

33

S1320S00F

O-RING

O-RING - plug

1шт.
